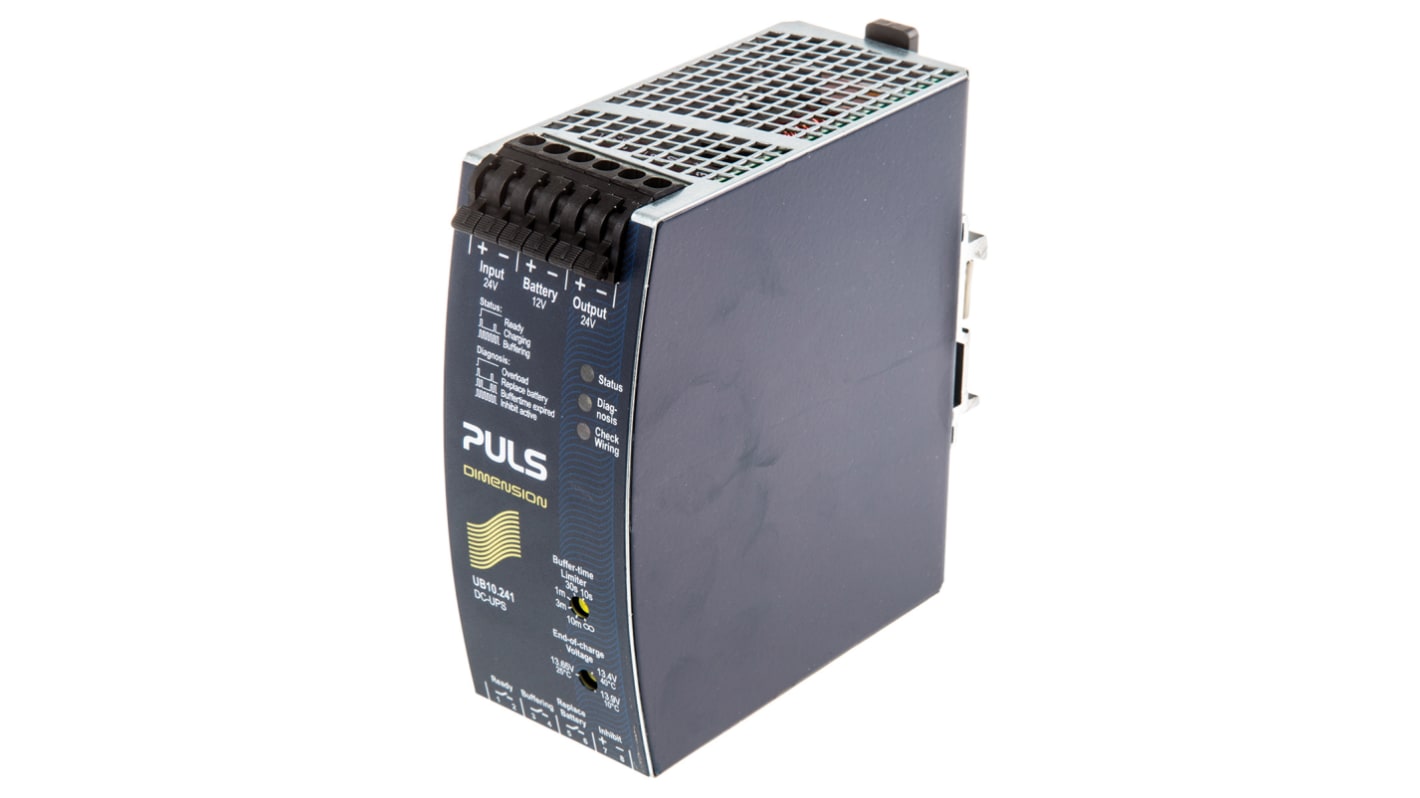

PULS UB10.241 22.5V dc, 30 V dc Input Uninterruptible power supply, DIMENSION 240 W DIN Rail

RS Stock No.:: 627-6225
Distrelec Article No.:: 169-96-560
Mfr. Part No.:: UB10.241
Manufacturer:: PULS

PULS UB10.241 22.5V dc, 30 V dc Input Uninterruptible power supply, DIMENSION 240 W DIN Rail

Subtotal (1 unit)*

MYR2,132.98

FREE delivery for orders over RM 150.00

In Stock

82 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR2,132.98

*price indicative

RS Stock No.:: 627-6225
Distrelec Article No.:: 169-96-560
Mfr. Part No.:: UB10.241
Manufacturer:: PULS

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	PULS
	Model Number	DIMENSION
	Product Type	Uninterruptible power supply
	Sub Type	DC
	Output Voltage	22.4V dc
	Input Voltage	22.5, 30V dc
	Mount Type	DIN Rail
	Power	240W
	Standards/Approvals	IEC 60068-2-6, EN 61000-6-1, IEC 60068-2-27, CE, EN 61000-6-4, EN 60529, FCC Part 15, IEC 60068-2-30, 93/68/EEC, EN 61000-6-3, EMC guideline 89/336/EEC, EN 50178, EN 61000-6-2, LVD 73/23/EEC
	Width	49mm
	Series	UB10.241
	Length	124mm
	Depth	117mm

	Select all
	Brand PULS
	Model Number DIMENSION
	Product Type Uninterruptible power supply
	Sub Type DC
	Output Voltage 22.4V dc
	Input Voltage 22.5, 30V dc
	Mount Type DIN Rail
	Power 240W
	Standards/Approvals IEC 60068-2-6, EN 61000-6-1, IEC 60068-2-27, CE, EN 61000-6-4, EN 60529, FCC Part 15, IEC 60068-2-30, 93/68/EEC, EN 61000-6-3, EMC guideline 89/336/EEC, EN 50178, EN 61000-6-2, LVD 73/23/EEC
	Width 49mm
	Series UB10.241
	Length 124mm
	Depth 117mm

COO (Country of Origin):: CN

PULS Dimension UPS

The PULS uninterruptible power supply (UPS) controller UB10.241 is an addition to standard 24V power supplies to bridge power failures or voltage fluctuations. This device avoids expensive downtimes, long restart cycles, and loss of data. The DC-UPS includes a professional battery management system that charges and monitors the battery to achieve the longest battery service life, as well as, many diagnostic functions that ensure the reliable operation of the entire system. A unique feature of the UB10.241 is it requires only one 12V battery to buffer the 24V output. This makes matching batteries unnecessary and allows precise battery charging and testing. The UB10.241 comes with two preassembled battery modules for the external 12V battery, a lightweight 7Ah battery that can be mounted on the DIN-Rail, and a 26Ah module that can be panel mounted for longer buffer times.

Features and Benefits

50% power reserves

Comprehensive diagnostic and monitoring functions

Current rating is 10A

Electronically overload and short circuit protected

Input voltage is 22.5VDC to 30VDC

Output voltage is 22.4VDC

Power rating is 240W

Replace battery signal included

Selectable buffer time limiter

Stable output voltage in buffer mode

Superior battery management for longest battery life

Applications

Communication

Industrial control

Instrumentation equipment

Office

Certifications

IEC 60950-1 standards

UL 508 standards

UL 60950-1 standards
