Units	Per Unit	Per Pack**
5 - 745	MYR8.526	MYR42.63
750 - 1495	MYR8.344	MYR41.72
1500 +	MYR8.094	MYR40.47

Select all	Attribute	Value
	Brand	Littelfuse
	Diode Configuration	Single
	Direction Type	Bi-Directional
	Maximum Clamping Voltage	53.3V
	Minimum Breakdown Voltage	36.7V
	Mounting Type	Surface Mount
	Package Type	DO-214AB
	Maximum Reverse Stand-off Voltage	33V
	Pin Count	2
	Peak Pulse Power Dissipation	5000W
	Maximum Peak Pulse Current	93.9A
	ESD Protection	Yes
	Number of Elements per Chip	1
	Minimum Operating Temperature	-65 °C
	Dimensions	7.11 x 6.22 x 2.41mm
	Maximum Operating Temperature	+150 °C
	Test Current	1mA
	Length	7.11mm
	Width	6.22mm
	Surge Current Rating	300A
	Maximum Reverse Leakage Current	5µA
	Height	2.41mm

	Select all
	Brand Littelfuse
	Diode Configuration Single
	Direction Type Bi-Directional
	Maximum Clamping Voltage 53.3V
	Minimum Breakdown Voltage 36.7V
	Mounting Type Surface Mount
	Package Type DO-214AB
	Maximum Reverse Stand-off Voltage 33V
	Pin Count 2
	Peak Pulse Power Dissipation 5000W
	Maximum Peak Pulse Current 93.9A
	ESD Protection Yes
	Number of Elements per Chip 1
	Minimum Operating Temperature -65 °C
	Dimensions 7.11 x 6.22 x 2.41mm
	Maximum Operating Temperature +150 °C
	Test Current 1mA
	Length 7.11mm
	Width 6.22mm
	Surge Current Rating 300A
	Maximum Reverse Leakage Current 5µA
	Height 2.41mm

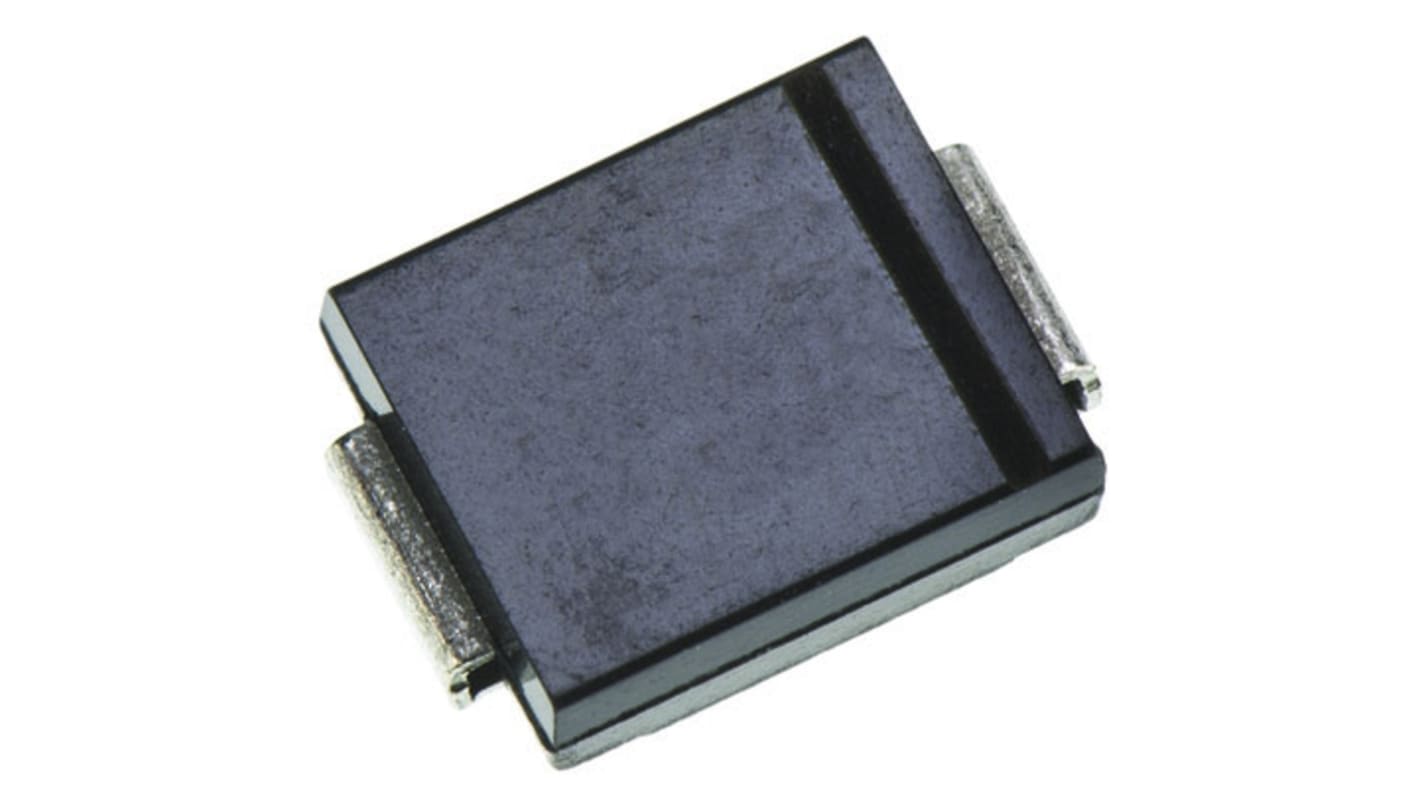

Littelfuse 5.0SMDJ33CA, Bi-Directional TVS Diode, 5000W, 2-Pin DO-214AB

FREE delivery for orders over MYR500.00

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
