Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	onsemi
	Logic Family	LCX
	Mounting Type	Surface Mount
	Number of Elements per Chip	2
	Package Type	TSSOP
	Output Type	3 State
	Pin Count	20
	Dimensions	6.6 x 4.5 x 1.05mm
	Logic Function	Buffer
	Maximum Low Level Output Current	24mA
	Maximum High Level Output Current	-24mA
	Translation	CMOS
	Propagation Delay Test Condition	50pF
	Maximum Operating Supply Voltage	2 to 3.6 V
	Maximum Propagation Delay Time @ Maximum CL	7.5 ns @ 50 pF
	Maximum Operating Temperature	+85 °C
	Minimum Operating Supply Voltage	2 V
	Minimum Operating Temperature	-40 °C

	Select all
	Brand onsemi
	Logic Family LCX
	Mounting Type Surface Mount
	Number of Elements per Chip 2
	Package Type TSSOP
	Output Type 3 State
	Pin Count 20
	Dimensions 6.6 x 4.5 x 1.05mm
	Logic Function Buffer
	Maximum Low Level Output Current 24mA
	Maximum High Level Output Current -24mA
	Translation CMOS
	Propagation Delay Test Condition 50pF
	Maximum Operating Supply Voltage 2 to 3.6 V
	Maximum Propagation Delay Time @ Maximum CL 7.5 ns @ 50 pF
	Maximum Operating Temperature +85 °C
	Minimum Operating Supply Voltage 2 V
	Minimum Operating Temperature -40 °C

Datasheet 74LCX244MTC

The LCX244 contains eight non-inverting buffers with 3-STATE outputs. The device may be employed as a memory address driver, clock driver and bus-oriented transmitter/receiver. The LCX244 is designed for low voltage (2.5V or 3.3V) VCC applications with capability of interfacing to a 5V signal environment. The LCX244 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.

5V tolerant inputs and outputs
2.3V to 3.6V VCC specifications provided
6.5 ns tPD max (VCC = 3.3V), 10 μA ICC max
Power down high impedance inputs and outputs
Supports live insertion/withdrawal (Note 1)
±24 mA output drive (VCC = 3.0V)
Implements patented noise/EMI reduction circuitry
Latch-up performance exceeds 500 mA
ESD performance: Human body model > 2000V Machine model > 200V
Leadless DQFN Pb-Free package
Applications
This product is general usage and suitable for many different applications.

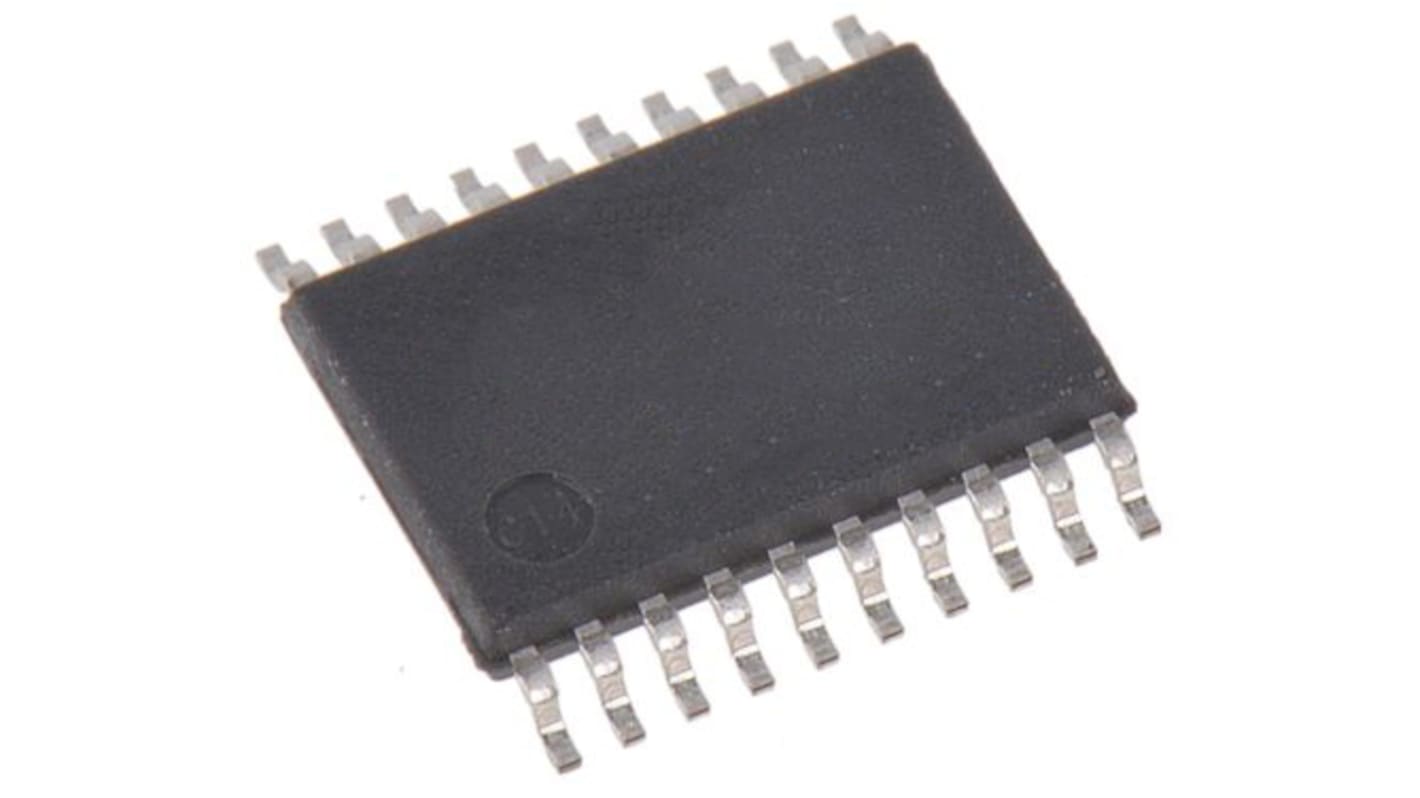

onsemi 74LCX244MTC, Voltage Level Shifter Buffer 2 CMOS, 20-Pin TSSOP
