Units	Per Unit	Per Reel**
4000 - 4000	MYR1.13	MYR4,520.00
8000 - 12000	MYR1.105	MYR4,420.00
16000 +	MYR1.084	MYR4,336.00

Select all	Attribute	Value
	Brand	C & K
	Contact Configuration	SPST
	Terminal Type	J Bend
	Switch Operation	Momentary
	Actuator Length	2 (Dia.)mm
	Actuator Colour	Gold
	Actuator Type	Button
	Length	5.2mm
	Width	5.2mm
	Dimensions	5.2 x 5.2mm
	Mounting Type	Surface Mount
	Contact Current Rating	20 mA
	IP Rating	IP40
	Operating Force	2.6 N
	Voltage Rating	15V dc
	Minimum Operating Temperature	-20°C
	Contact Material	Silver Plated
	Operating Temperature Range	-20 → +70°C
	Maximum Operating Temperature	+70°C

	Select all
	Brand C & K
	Contact Configuration SPST
	Terminal Type J Bend
	Switch Operation Momentary
	Actuator Length 2 (Dia.)mm
	Actuator Colour Gold
	Actuator Type Button
	Length 5.2mm
	Width 5.2mm
	Dimensions 5.2 x 5.2mm
	Mounting Type Surface Mount
	Contact Current Rating 20 mA
	IP Rating IP40
	Operating Force 2.6 N
	Voltage Rating 15V dc
	Minimum Operating Temperature -20°C
	Contact Material Silver Plated
	Operating Temperature Range -20 → +70°C
	Maximum Operating Temperature +70°C

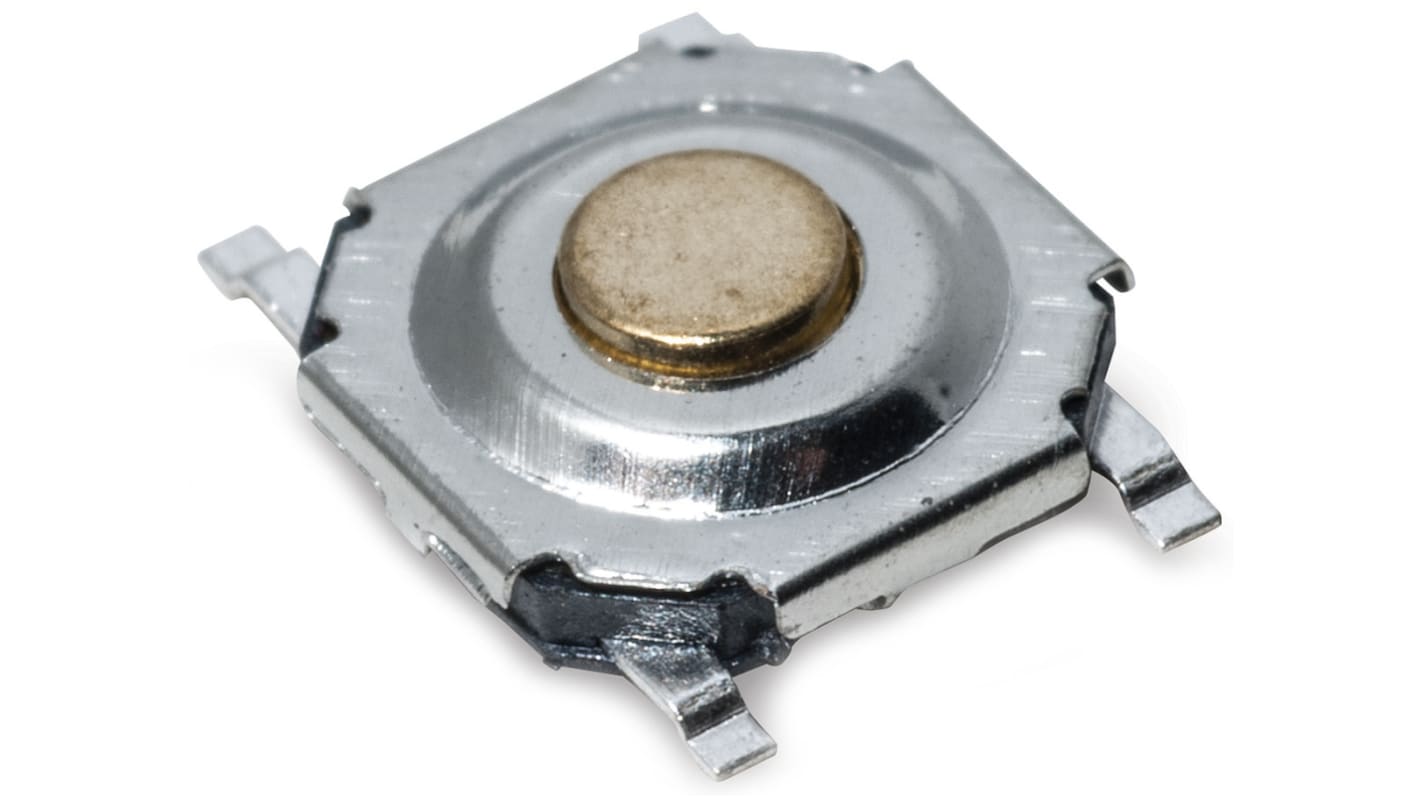

C & K IP40 Gold Button Tactile Switch, SPST 20 mA 2 (Dia.)mm Surface Mount

FREE delivery for orders over MYR500.00

C&K PTS525 Series Tactile Switches

Features and Benefits

Applications

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
