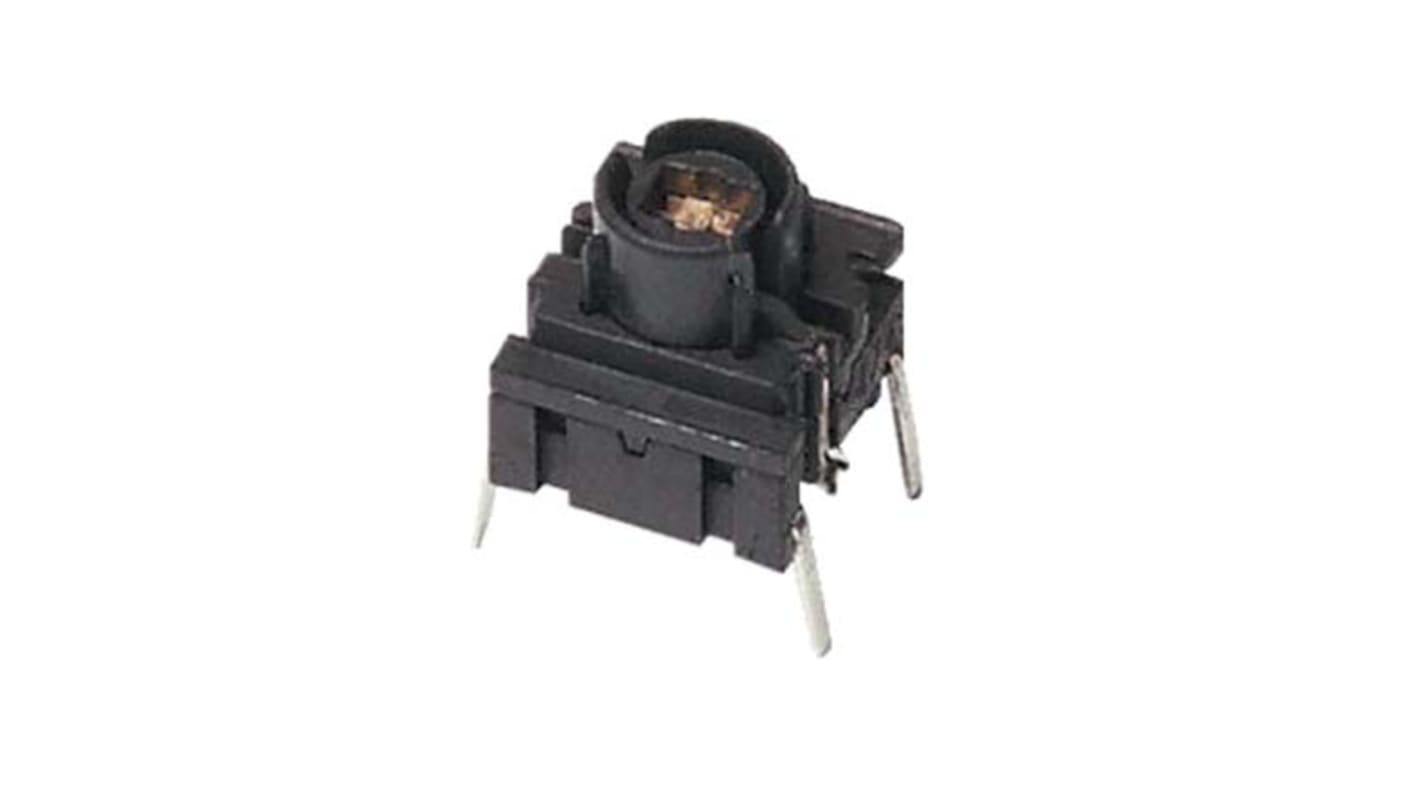

MEC IP67 Red Push Button Tactile Switch, SPST 50 mA @ 24 V dc
- RS Stock No.:
- 126-818
- Mfr. Part No.:
- 4FTH982
- Manufacturer:
- MEC
Bulk discount available
Subtotal (1 unit)**
MYR29.42
37 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
|---|---|
| 1 - 24 | MYR29.42 |
| 25 - 99 | MYR28.53 |
| 100 - 249 | MYR27.64 |
| 250 - 499 | MYR27.08 |
| 500 + | MYR26.49 |
**price indicative
- RS Stock No.:
- 126-818
- Mfr. Part No.:
- 4FTH982
- Manufacturer:
- MEC
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEC | |
| Contact Configuration | SP-NO | |
| Terminal Type | Through Hole | |
| Switch Operation | Momentary | |
| Actuator Colour | Red | |
| Actuator Type | Push Button | |
| Length | 12.5mm | |
| Width | 10.3mm | |
| Dimensions | 12.5 x 10.3mm | |
| Illuminated | Yes | |
| Contact Current Rating | 50 mA @ 24 V dc | |
| IP Rating | IP67 | |
| Voltage Rating | 24V dc | |
| Height | 10.4mm | |
| Operating Force | 2.5 N | |
| Mechanical Life | 10000000Operations | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +125°C | |
| Operating Temperature Range | -40 → +125°C | |
| Contact Material | Gold, Silver | |
Select all | ||
|---|---|---|
Brand MEC | ||
Contact Configuration SP-NO | ||
Terminal Type Through Hole | ||
Switch Operation Momentary | ||
Actuator Colour Red | ||
Actuator Type Push Button | ||
Length 12.5mm | ||
Width 10.3mm | ||
Dimensions 12.5 x 10.3mm | ||
Illuminated Yes | ||
Contact Current Rating 50 mA @ 24 V dc | ||
IP Rating IP67 | ||
Voltage Rating 24V dc | ||
Height 10.4mm | ||
Operating Force 2.5 N | ||
Mechanical Life 10000000Operations | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +125°C | ||
Operating Temperature Range -40 → +125°C | ||
Contact Material Gold, Silver | ||
