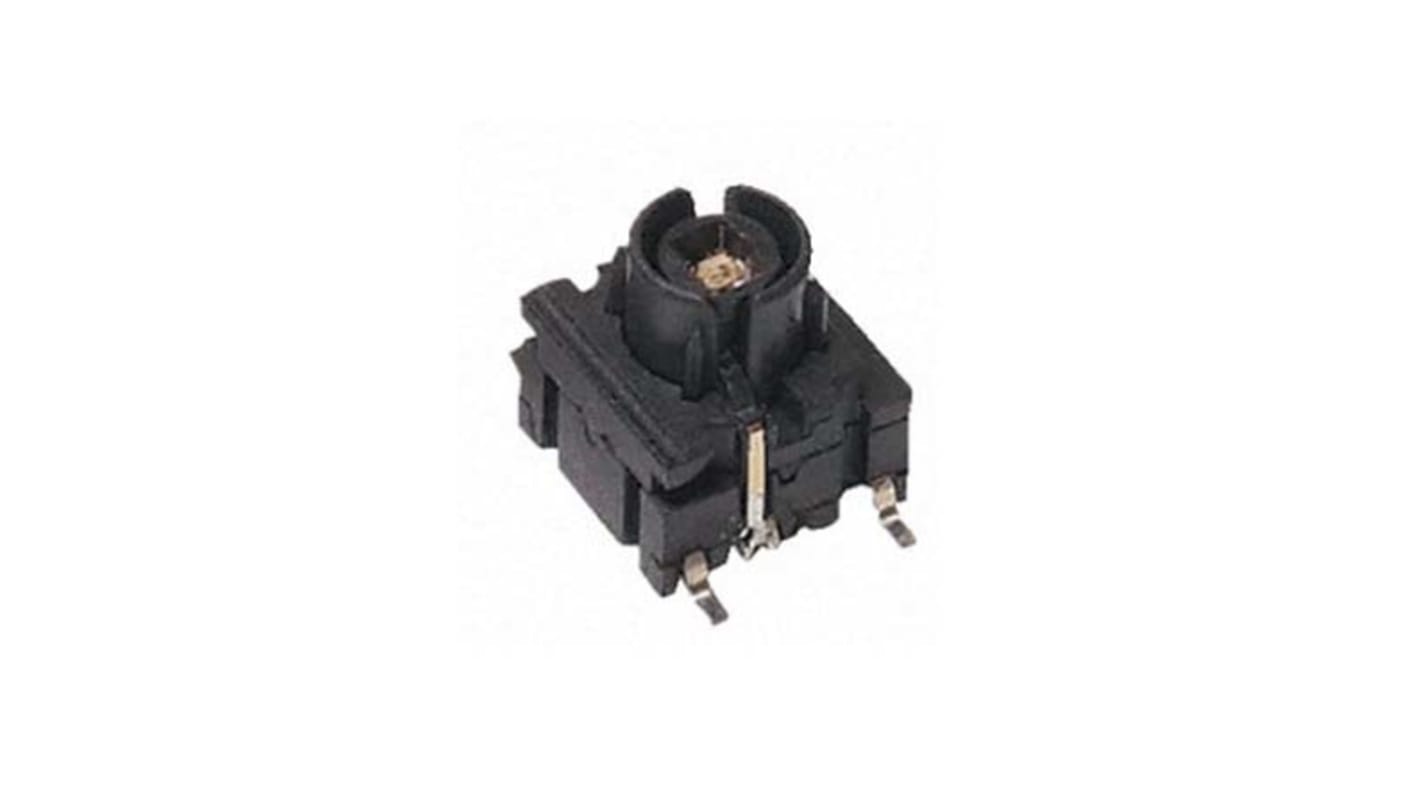

IP67 White Push Button Tactile Switch, SPST 50 mA @ 24 V dc PCB
- RS Stock No.:
- 126-868
- Mfr. Part No.:
- 4FSH961
- Manufacturer:
- MEC
407 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR39.62
| Units | Per Unit |
| 1 - 24 | MYR39.62 |
| 25 - 99 | MYR38.42 |
| 100 - 249 | MYR37.27 |
| 250 + | MYR36.16 |
- RS Stock No.:
- 126-868
- Mfr. Part No.:
- 4FSH961
- Manufacturer:
- MEC
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DK
Product Details
Multimec® illumec™ 4F Switches
SPNO momentary action with integrated LEDs
Sealed to IP67
High luminous intensity
Sealed to IP67
High luminous intensity
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SP-NO |
| Terminal Type | Surface Mount |
| Switch Operation | Momentary |
| Actuator Colour | White |
| Actuator Type | Push Button |
| Length | 14mm |
| Width | 10.3mm |
| Dimensions | 14 x 10.3mm |
| Illuminated | Yes |
| Mounting Type | PCB |
| Contact Current Rating | 50 mA @ 24 V dc |
| IP Rating | IP67 |
| Operating Force | 2.5 N |
| Height | 10.4mm |
| Voltage Rating | 24V dc |
| Maximum Operating Temperature | +125°C |
| Contact Material | Gold, Silver |
| Mechanical Life | 10000000Operations |
| Operating Temperature Range | -40 → +125°C |
| Minimum Operating Temperature | -40°C |
