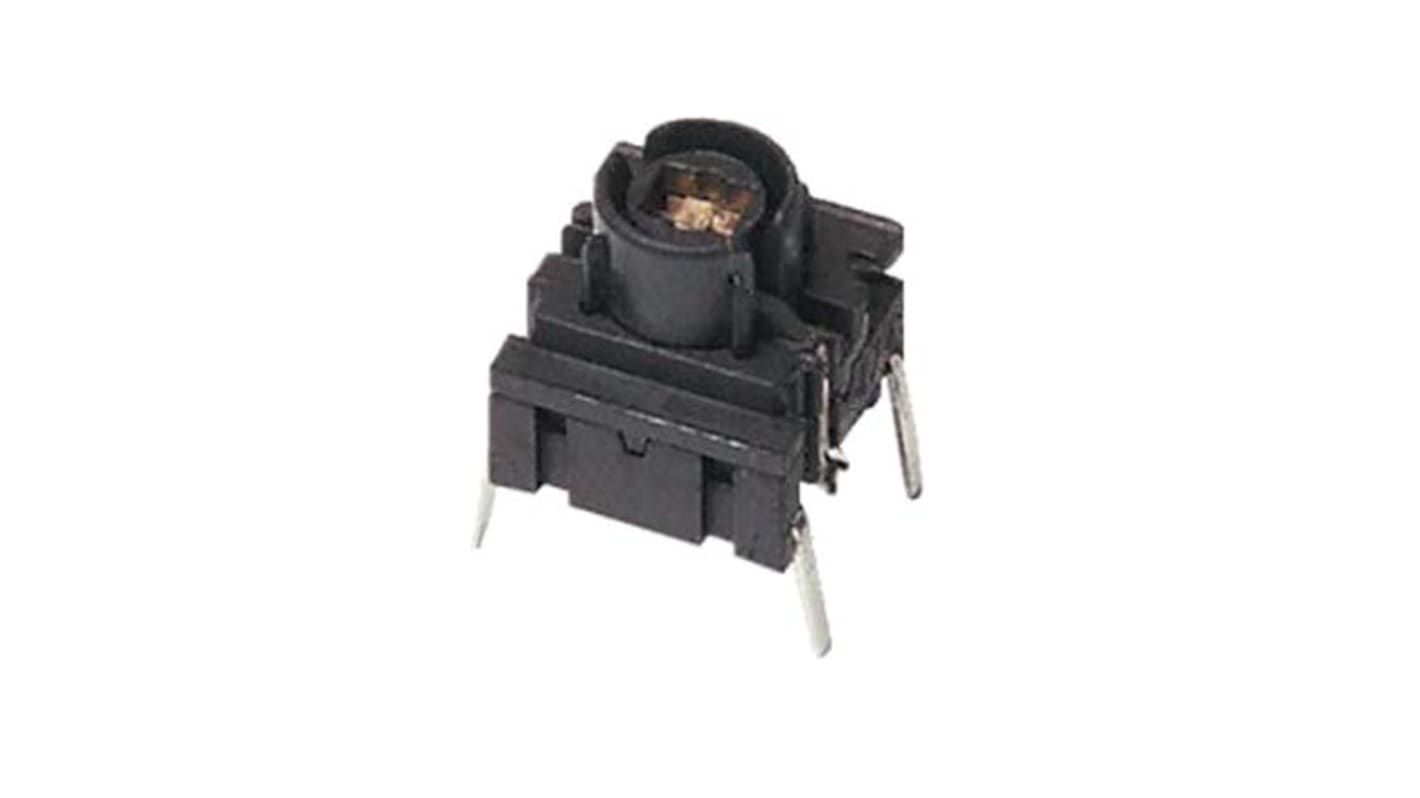

IP67 Blue Push Button Tactile Switch, SPST 50 mA @ 24 V dc
- RS Stock No.:
- 126-773
- Mfr. Part No.:
- 4FTH901
- Manufacturer:
- MEC
Temporarily out of stock - back order for despatch 03/09/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR41.69
| Units | Per Unit |
| 1 + | MYR41.69 |
Alternatives
This product is not currently available. Here are our alternative recommendations.
- RS Stock No.:
- 126-773
- Mfr. Part No.:
- 4FTH901
- Manufacturer:
- MEC
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DK
Product Details
Multimec® illumec™ 4F Switches
SPNO momentary action with integrated LEDs
Sealed to IP67
High luminous intensity
Sealed to IP67
High luminous intensity
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SP-NO |
| Terminal Type | Through Hole |
| Switch Operation | Momentary |
| Actuator Colour | Blue |
| Actuator Type | Push Button |
| Length | 12.5mm |
| Width | 10.3mm |
| Dimensions | 12.5 x 10.3mm |
| Illuminated | Yes |
| Contact Current Rating | 50 mA @ 24 V dc |
| IP Rating | IP67 |
| Operating Force | 2.5 N |
| Voltage Rating | 24V dc |
| Height | 10.4mm |
| Contact Material | Gold, Silver |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +125°C |
| Mechanical Life | 10000000Operations |
| Maximum Operating Temperature | +125°C |
