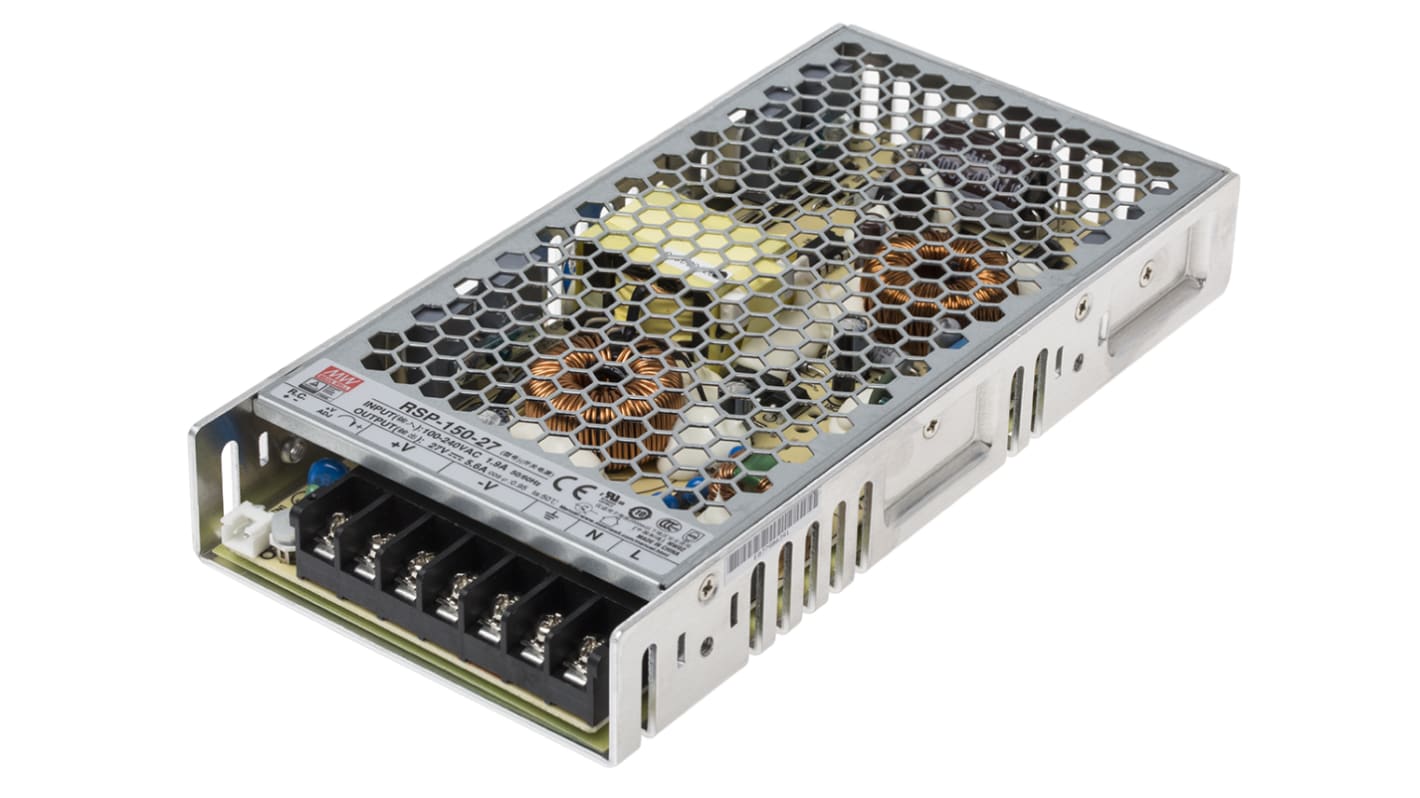

MEAN WELL Switching Power Supply, RSP-150-27 27V dc, 5.6 A, 151 W, Input 85V ac to 370 V dc, 264V ac

RS Stock No.:: 791-1077
Distrelec Article No.:: 110-51-839
Mfr. Part No.:: RSP-150-27
Manufacturer:: MEAN WELL

MEAN WELL Switching Power Supply, RSP-150-27 27V dc, 5.6 A, 151 W, Input 85V ac to 370 V dc, 264V ac

Bulk discount available

Subtotal (1 unit)*

MYR234.57

Stock information currently inaccessible - Please check back later

Units	Per Unit
1 - 9	MYR234.57
10 - 49	MYR229.88
50 +	MYR225.28

*price indicative

RS Stock No.:: 791-1077
Distrelec Article No.:: 110-51-839
Mfr. Part No.:: RSP-150-27
Manufacturer:: MEAN WELL

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	MEAN WELL
	Product Type	Switching Power Supply
	Maximum Output Voltage	27V dc
	Number of Outputs	1
	Mount Type	Chassis
	Power	151W
	Minimum Operating Temperature	-30°C
	SMPS Output Current	5.6 A
	Maximum Operating Temperature	70°C
	Depth	30mm
	Standards/Approvals	AS/NZS62368.1, BSMI CNS143361, CCCGB4943.1, CSA C22.2 No. 62368-1, EAC TP TC 00, IS 13252(Part1)/IEC 60950-1, TUV BS EN/EN 62368-1, UL 62368-1
	Length	199mm
	Weight	600g
	Width	30 mm
	Series	RSP-150
	Maximum Input Voltage	370, 264V dc
	Efficiency	89.5%
	Output Current	5.6A
	Hazardous Area Certification	No
	Minimum Input Voltage	85V ac

	Select all
	Brand MEAN WELL
	Product Type Switching Power Supply
	Maximum Output Voltage 27V dc
	Number of Outputs 1
	Mount Type Chassis
	Power 151W
	Minimum Operating Temperature -30°C
	SMPS Output Current 5.6 A
	Maximum Operating Temperature 70°C
	Depth 30mm
	Standards/Approvals AS/NZS62368.1, BSMI CNS143361, CCCGB4943.1, CSA C22.2 No. 62368-1, EAC TP TC 00, IS 13252(Part1)/IEC 60950-1, TUV BS EN/EN 62368-1, UL 62368-1
	Length 199mm
	Weight 600g
	Width 30 mm
	Series RSP-150
	Maximum Input Voltage 370, 264V dc
	Efficiency 89.5%
	Output Current 5.6A
	Hazardous Area Certification No
	Minimum Input Voltage 85V ac

RSP-150 Series Single Output Power Supply with PFC Function

The RSP-150 Series is a new generation of 150W AC/DC low profile, single output, enclosed type, switching power supply. This switch mode power supply reduced its height by 40%, from the 50mm of the previous models to 30mm. The RSP-150 features up to date high performance circuit topology, PFC function and possess up to 90% high efficiency. This enclosed power supply can be cooled by free air convection from -30°C to +40°C, or +50°C ambient temperature under full load condition and even +70°C by suitable derating. The RSP-150 features a remote ON/OFF control, short circuit, overload, over voltage and over temperature protection. This AC/DC power supply complies with the ITE requirements per UL, CUL, TUV, CCC, CB and CE regulations and also the TUV EN61558-1 and EN61558-2-16 certificates, fulfilling the household appliance requirements in the European market. Applications include industrial automation system, mechanical and electrical equipment, household appliance, instruments, or any systems that require 1U low profile installations.

30mm low profile design, suitable for 1U installation

Universal AC input range 85 to 264V

Built-in active PFC function

High efficiency up to 90%

Fan-less design, cooling by free air convection

-30 to+70°C operating range

Protection: Short circuit / Overload / Over voltage / Over temperature

Built-in constant current limiting circuit

Remote ON/OFF control

LED indicator for power on

3 years warranty

Note

Available on EPLAN.

Approvals

UL60950-1, UL62368-1 / TUV EN60950-1, EN61558-1, EN61558-2-16 / CCC GB4943 / CB IEC60950-1, IEC62368-1
