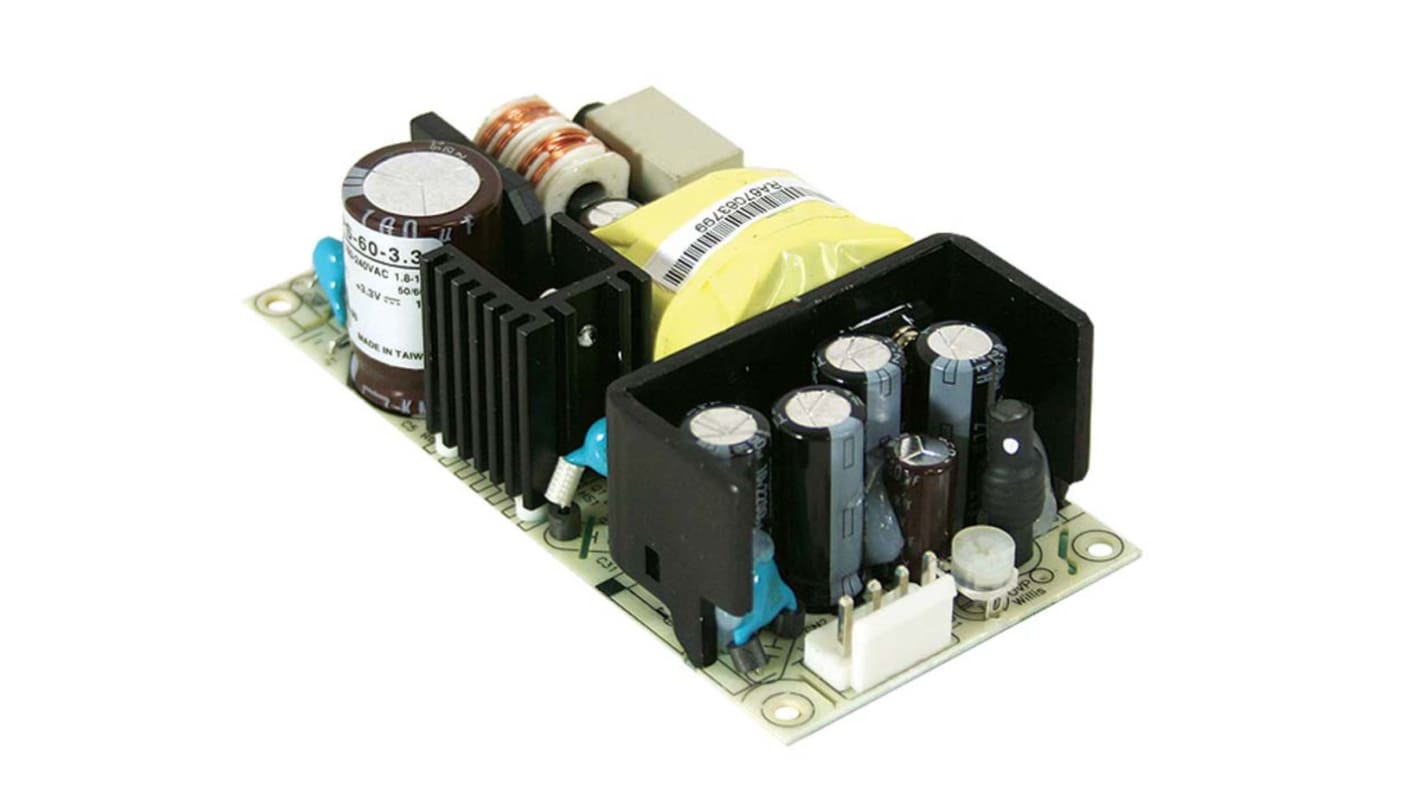

MEAN WELL Switching Power Supply, RPS-60-3.3 3.3V dc, 10A, 33 W, Input 90V ac to 370 V dc, 264V ac

RS Stock No.:: 678-3717
Mfr. Part No.:: RPS-60-3.3
Manufacturer:: MEAN WELL

MEAN WELL Switching Power Supply, RPS-60-3.3 3.3V dc, 10A, 33 W, Input 90V ac to 370 V dc, 264V ac

Bulk discount available

Subtotal (1 unit)*

MYR58.74

FREE delivery for orders over RM 500.00

In Stock

Plus 5 unit(s) shipping from 18 May 2026
Plus 3 unit(s) shipping from 25 May 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 - 9	MYR58.74
10 - 49	MYR57.51
50 +	MYR55.78

*price indicative

RS Stock No.:: 678-3717
Mfr. Part No.:: RPS-60-3.3
Manufacturer:: MEAN WELL

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	MEAN WELL
	Product Type	Switching Power Supply
	Maximum Output Voltage	3.3V dc
	Number of Outputs	1
	Mount Type	Chassis
	Power	33W
	SMPS Output Current	10A
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	70°C
	Width	29mm
	Standards/Approvals	UL 62368-1, AS/NZS62368.1, BSMI CNS143361, CCCGB4943.1, CSA C22.2 No. 62368-1, EAC TP TC 00, IS 13252(Part1)/IEC 60950-1, TUV BS EN/EN 62368-1
	Weight	150g
	Length	101.6mm
	Depth	29mm
	Maximum Input Voltage	370, 264V dc
	Efficiency	87%
	Series	RPS-60
	Hazardous Area Certification	NO
	Minimum Input Voltage	90V ac
	Output Current	10A

	Select all
	Brand MEAN WELL
	Product Type Switching Power Supply
	Maximum Output Voltage 3.3V dc
	Number of Outputs 1
	Mount Type Chassis
	Power 33W
	SMPS Output Current 10A
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 70°C
	Width 29mm
	Standards/Approvals UL 62368-1, AS/NZS62368.1, BSMI CNS143361, CCCGB4943.1, CSA C22.2 No. 62368-1, EAC TP TC 00, IS 13252(Part1)/IEC 60950-1, TUV BS EN/EN 62368-1
	Weight 150g
	Length 101.6mm
	Depth 29mm
	Maximum Input Voltage 370, 264V dc
	Efficiency 87%
	Series RPS-60
	Hazardous Area Certification NO
	Minimum Input Voltage 90V ac
	Output Current 10A

RPS-60 Series, Universal Input, 2x4inch, Single Output

Miniature size 2x4 inch, high power density

High efficiency, long life and high reliability

Universal input voltage 90-264Vac, 127-370Vdc

Energy saving power supply

No load power consumption <0.75W

Medical safety approved

Low leakage current <200μA

Adjustable output voltage (-5 to +10%)

Harmonic current compliance to EN 61000-3-2

EMC meets EN 55022 Class B

Short circuit, overload and overvoltage protection

10% extra 'peak current' rating for 10 seconds

Note

De-rating 2% per °C above 50°C.
MTBF to MIL-HDBK-217F (25°C).

Approvals

TUV, CB, UL recognised component for Canada & US

Standards

EN 60601-1, UL 60601-1
