Cosel Switching Power Supply, GHA500F-48-P, 48V dc, 4.2 A, 10.5 A, 504W, 1 Output, 90 → 264V ac Input Voltage
- RS Stock No.:
- 131-1349
- Mfr. Part No.:
- GHA500F-48-P
- Manufacturer:
- Cosel
Bulk discount available
Subtotal (1 unit)*
MYR1,257.32
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | MYR1,257.32 |
| 10 - 49 | MYR1,226.49 |
| 50 + | MYR1,182.00 |
*price indicative
- RS Stock No.:
- 131-1349
- Mfr. Part No.:
- GHA500F-48-P
- Manufacturer:
- Cosel
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cosel | |
| Output Voltage | 48V dc | |
| Output Current | 4.2 A, 10.5 A | |
| Power Rating | 504W | |
| Number of Outputs | 1 | |
| Input Voltage | 90 → 264V ac | |
| Mounting Type | Chassis Mount | |
| Package Type | Open Frame | |
| Length | 127mm | |
| Width | 76.2mm | |
| Medical Approved | Yes | |
| Depth | 35mm | |
| Minimum Temperature | -20°C | |
| Maximum Temperature | +80°C | |
| Weight | 420g | |
Select all | ||
|---|---|---|
Brand Cosel | ||
Output Voltage 48V dc | ||
Output Current 4.2 A, 10.5 A | ||
Power Rating 504W | ||
Number of Outputs 1 | ||
Input Voltage 90 → 264V ac | ||
Mounting Type Chassis Mount | ||
Package Type Open Frame | ||
Length 127mm | ||
Width 76.2mm | ||
Medical Approved Yes | ||
Depth 35mm | ||
Minimum Temperature -20°C | ||
Maximum Temperature +80°C | ||
Weight 420g | ||
- COO (Country of Origin):
- JP

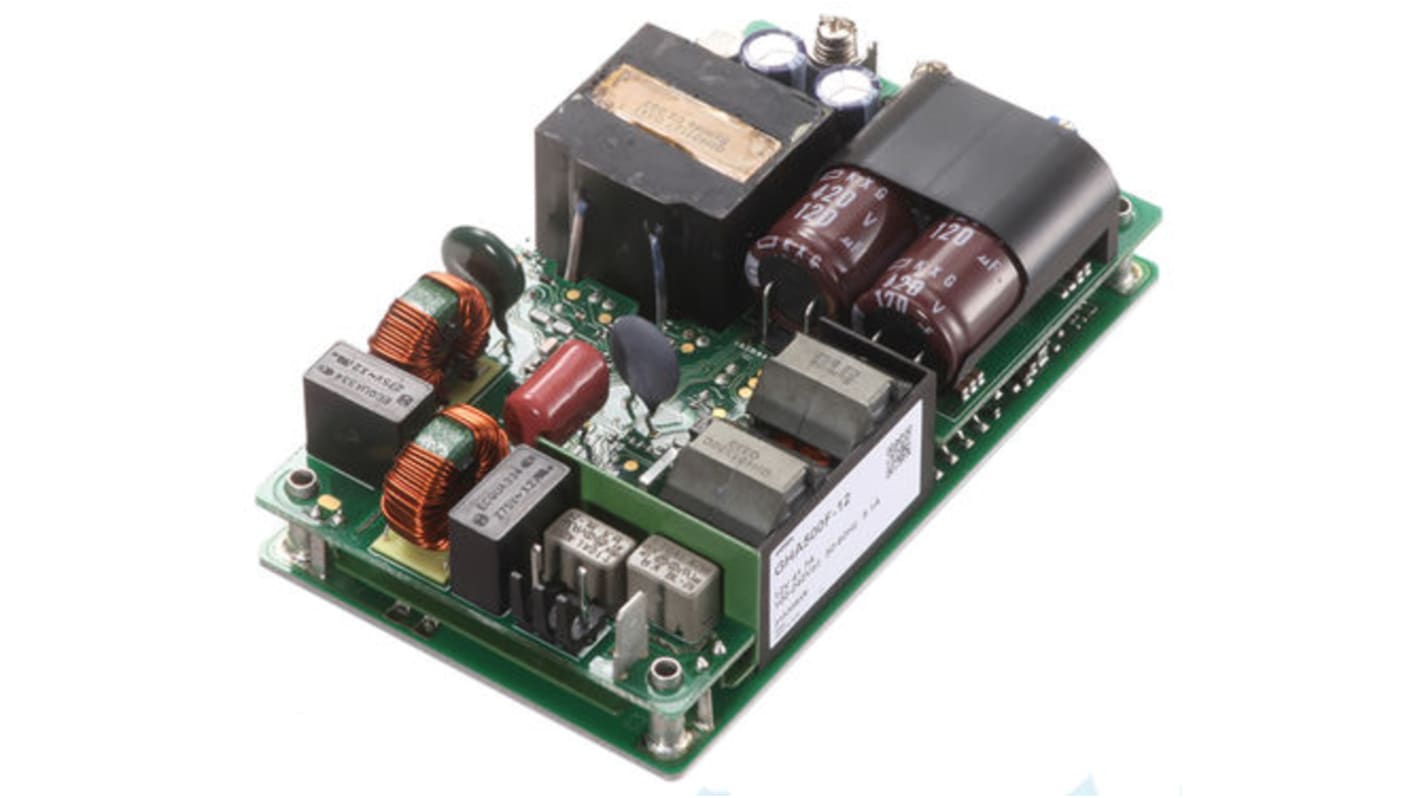

Cosel Embedded Switch Mode Power Supply
The Cosel GHA series 504W single output AC to DC embedded switch-mode power supply has an output current of 2.3A (convection), 4.2A (conduction cooling), 10.5A (forced air) at 48VDC. Though being highly reliable, any stress to the P. C. B, such as twisting or bending, may cause a defect to the unit. Hence, it is advisable to handle the unit with care. It has a universal input supply voltage rating ranging from 90VAC to 264VAC.
Features and Benefits
Industrial and medical safety approvals
Fits 1U applications
Low leakage current
Internal dual fuses
Harmonic attenuator (complies with IEC61000-3-2 class A)
Built in power factor correction circuitry for decreased AC input capacity
Built-in inrush current, overcurrent and overvoltage protection circuits
With remote ON/OFF (optional)
With AUX1 (12V) (optional)
With AUX2 (5V) (optional)
With power-good signal (optional)
5 year warranty
Fits 1U applications
Low leakage current
Internal dual fuses
Harmonic attenuator (complies with IEC61000-3-2 class A)
Built in power factor correction circuitry for decreased AC input capacity
Built-in inrush current, overcurrent and overvoltage protection circuits
With remote ON/OFF (optional)
With AUX1 (12V) (optional)
With AUX2 (5V) (optional)
With power-good signal (optional)
5 year warranty
Certifications
UL60950-1
C-UL, EN60950-1
ANSI/AAMI-ES60601-1/CSA60601-1
EN60601-1 3rd
C-UL, EN60950-1
ANSI/AAMI-ES60601-1/CSA60601-1
EN60601-1 3rd
