Wurth, WE-PD, 1280 Shielded Wire-wound SMD Inductor with a Ferrite Core, 47 μH ±20% Wire-Wound 2.7A Idc
- RS Stock No.:
- 333-8601
- Distrelec Article No.:
- 158-64-781
- Mfr. Part No.:
- 744770147
- Manufacturer:
- Wurth Elektronik

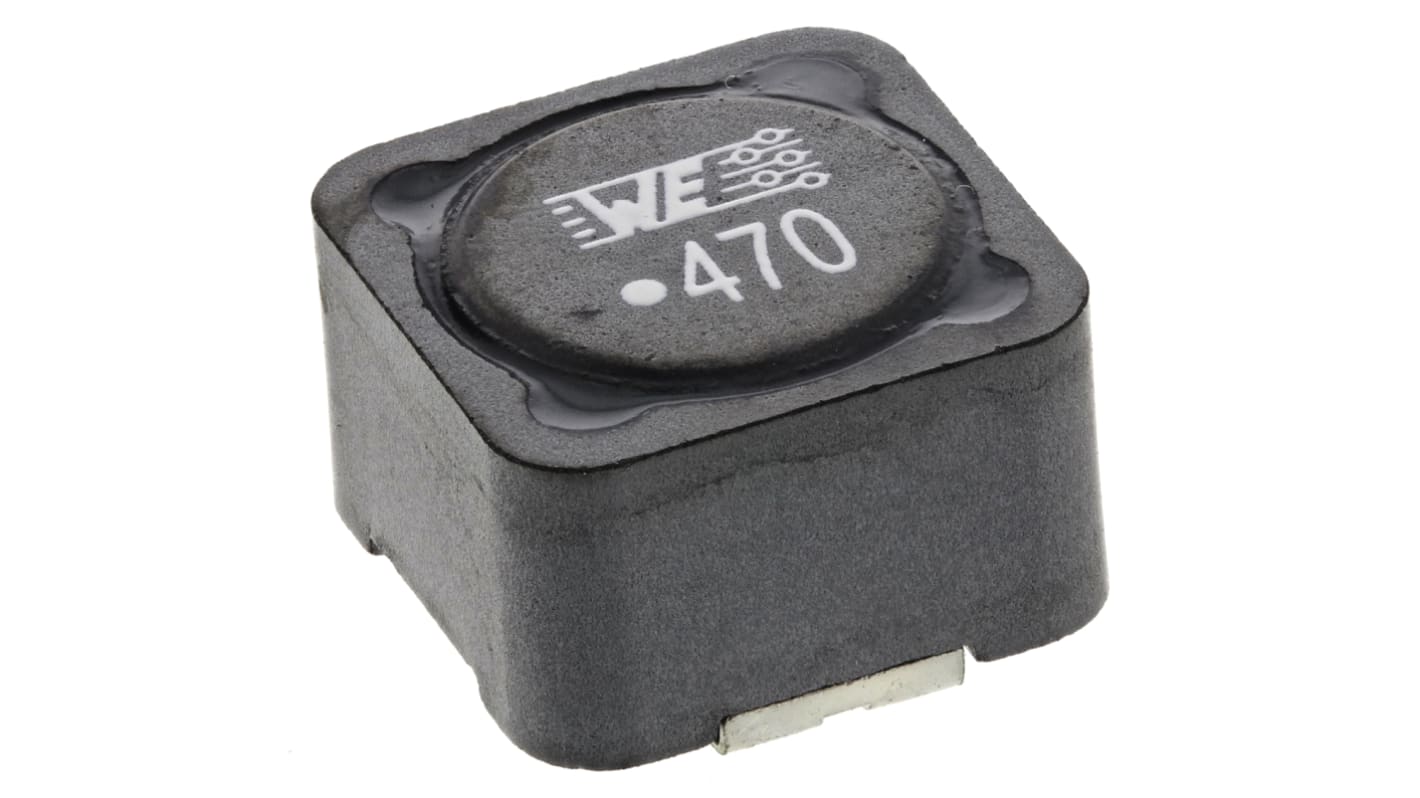

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
MYR9.45
FREE delivery for orders over RM 500.00
In Stock
- 75 unit(s) ready to ship from another location
- Plus 1,596 unit(s) shipping from 06 August 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
---|---|
1 - 124 | MYR9.45 |
125 - 249 | MYR9.10 |
250 + | MYR8.64 |
*price indicative
- RS Stock No.:
- 333-8601
- Distrelec Article No.:
- 158-64-781
- Mfr. Part No.:
- 744770147
- Manufacturer:
- Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wurth Elektronik | |
Inductance | 47 μH | |
Maximum DC Current | 2.7A | |
Package/Case | 1280 | |
Length | 12mm | |
Depth | 12mm | |
Height | 8mm | |
Dimensions | 12 x 12 x 8mm | |
Shielded | Yes | |
Tolerance | ±20% | |
Maximum DC Resistance | 100mΩ | |
Series | WE-PD | |
Core Material | Ferrite | |
Maximum Self Resonant Frequency | 7.9MHz | |
Maximum Operating Temperature | +125°C | |
Minimum Operating Temperature | -40°C | |
Inductor Construction | Wire-Wound | |
