TE Connectivity, SOLISTRAND Strap Butt Splice Connector, Gold over Nickel 26 → 22 AWG
- RS Stock No.:
- 825-2199
- Mfr. Part No.:
- 324369
- Manufacturer:
- TE Connectivity
120 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Price Each (In a Pack of 10)
MYR5.624
| Units | Per Unit | Per Pack* |
| 10 + | MYR5.624 | MYR56.24 |
| *price indicative | ||
- RS Stock No.:
- 825-2199
- Mfr. Part No.:
- 324369
- Manufacturer:
- TE Connectivity
Technical data sheets
Legislation and Compliance
Product Details

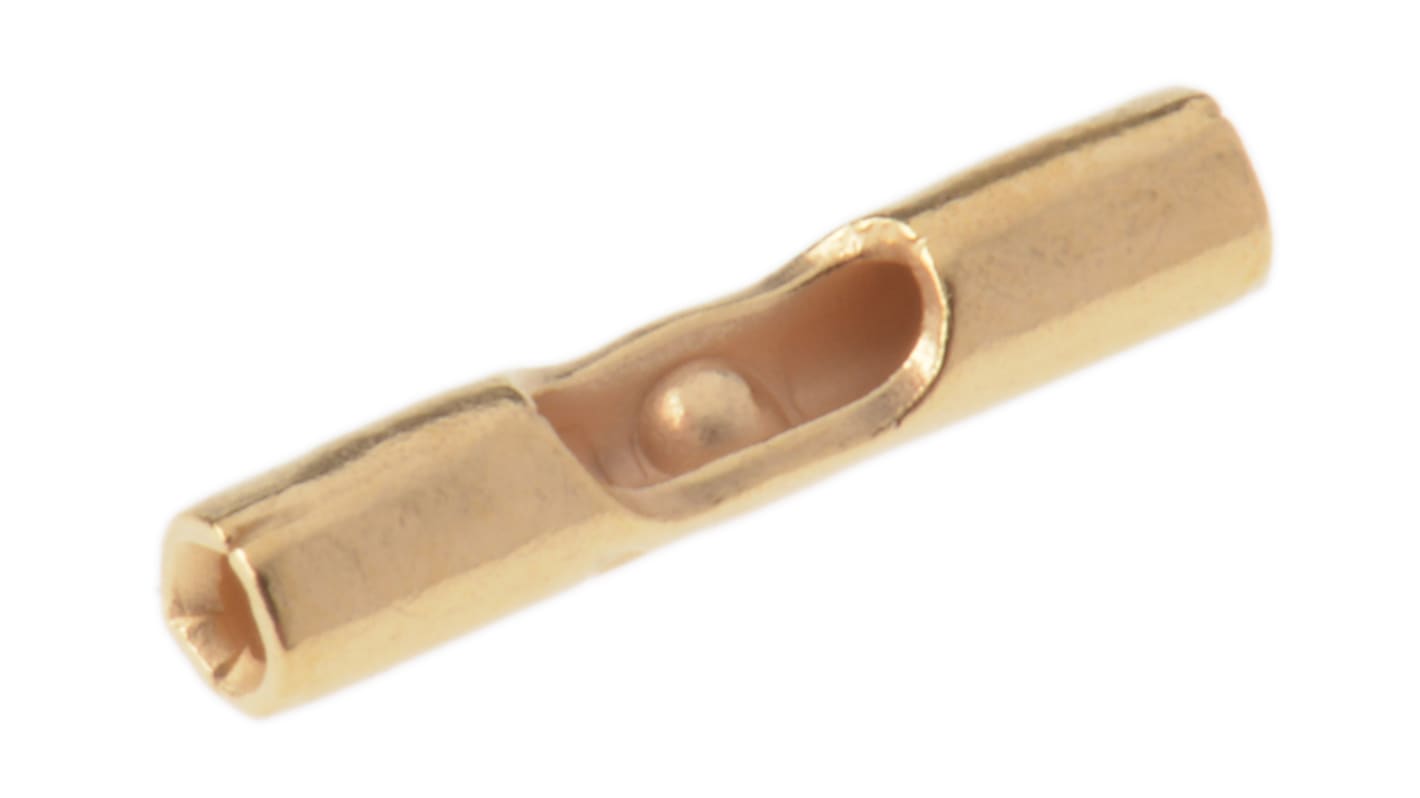

TE Connectivity SOLISTRAND Closed Barrel Strap Butt Splices
SOLISTRAND closed barrel strap butt splices designed to terminate solid and stranded wire and irregular shaped conductors. These SOLISTRAND closed barrel strap butt splices are made from fine grade high conductivity copper and have closed barrels with brazed seams that create a uniform metal strength around the barrel. The inner surface of the barrels are either dimpled or serrated for maximum tensile strength and to maximise the electrical contact area after crimping
Note
TE Connectivity SOLISTRAND Terminals and Splices
Specifications
Attribute | Value |
|---|---|
| Splice Type | Strap Butt |
| Wire Size | 26 → 22 AWG |
| Overall Length | 9.78mm |
| Diameter | 2.08mm |
| Insulation | Uninsulated |
| Series | SOLISTRAND |
| Contact Material | Copper |
| Contact Plating | Gold over Nickel |
| Thickness | 0.46mm |
