HellermannTyton Wire Splice Wire Splice Connector, Insulated 28 → 14 AWG
- RS Stock No.:
- 241-8653
- Mfr. Part No.:
- HCRN-5-BLISTER
- Manufacturer:
- HellermannTyton
540 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 5)
MYR4.116
| Units | Per Unit | Per Pack* |
| 5 + | MYR4.116 | MYR20.58 |
| *price indicative | ||
- RS Stock No.:
- 241-8653
- Mfr. Part No.:
- HCRN-5-BLISTER
- Manufacturer:
- HellermannTyton
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

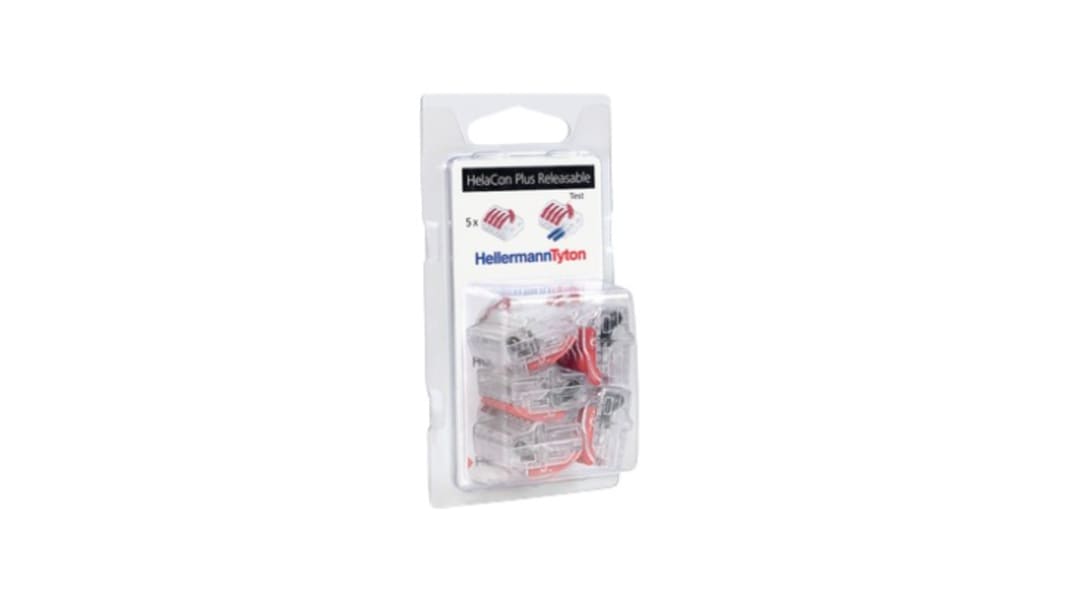

The HellermannTyton releasable wire connector blister pack are used for all types of wires to connect cable and conductors in the field of electrical installation. The connectors can be used in all kinds of junction boxes either on-wall or flush-mounted.
Universal push-in wire connector for solid, stranded and fine-stranded wires
Wire clamping range 0.2-4.0 mm²
Dimensions(mm) height 14 length 26 width 20.5
Maximum current 32A
Maximum voltage 450V
Material polycarbonate
Operating Temperature -30 °C to +85 °C
Wire clamping range 0.2-4.0 mm²
Dimensions(mm) height 14 length 26 width 20.5
Maximum current 32A
Maximum voltage 450V
Material polycarbonate
Operating Temperature -30 °C to +85 °C
Specifications
Attribute | Value |
|---|---|
| Splice Type | Wire Splice |
| Wire Size | 28 → 14 AWG |
| Overall Length | 26mm |
| Minimum Wire Size AWG | 14AWG |
| Number of Ways | 5 |
| Insulation | Insulated |
| Maximum Wire Size AWG | 28AWG |
