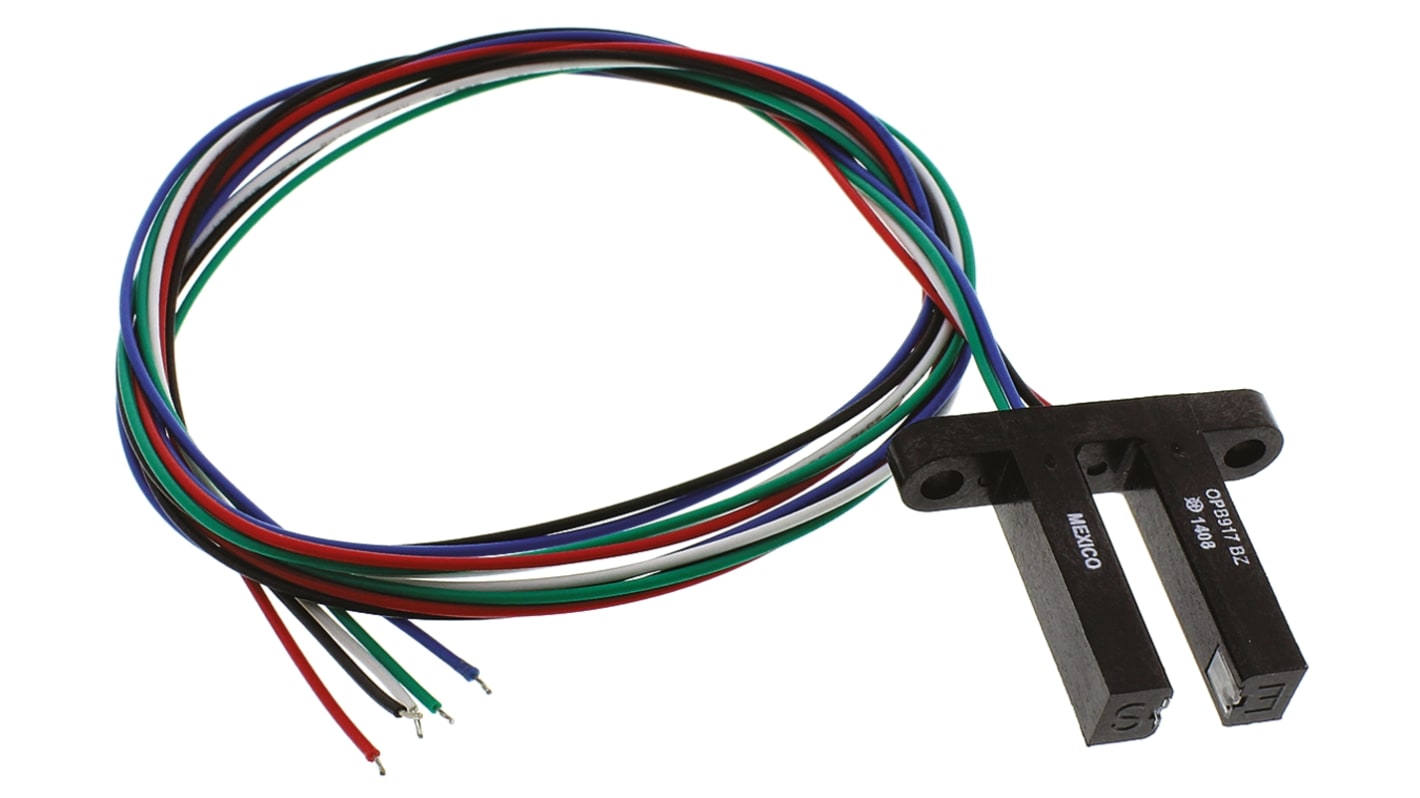

OPB917BZ Optek, Through Hole Slotted Optical Switch, Buffer, Open-Collector with 10K Pull-Up Resistor Output
- RS Stock No.:
- 455-0919
- Mfr. Part No.:
- OPB917BZ
- Manufacturer:
- Optek
Bulk discount available
Subtotal (1 unit)*
MYR35.27
FREE delivery for orders over RM 500.00
In Stock
- Plus 15 unit(s) shipping from 13 October 2025
- Plus 273 unit(s) shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | MYR35.27 |
| 10 - 49 | MYR34.56 |
| 50 - 99 | MYR33.88 |
| 100 - 249 | MYR33.21 |
| 250 + | MYR32.57 |
*price indicative
- RS Stock No.:
- 455-0919
- Mfr. Part No.:
- OPB917BZ
- Manufacturer:
- Optek
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Optek | |
| Output Device | Buffer, Open-Collector with 10K Pull-Up Resistor | |
| Number of Channels | 1 | |
| Typical Rise Time | 50ns | |
| Typical Fall Time | 50ns | |
| Mounting Type | Through Hole | |
| Number of Pins | 5 | |
| Dimensions | 30.73 x 6.35 x 25.65mm | |
| Height | 25.65mm | |
| Length | 30.73mm | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -40°C | |
| Slot Width | 5.08mm | |
| Width | 6.35mm | |
| Operating Temperature Range | -40 → +85°C | |
Select all | ||
|---|---|---|
Brand Optek | ||
Output Device Buffer, Open-Collector with 10K Pull-Up Resistor | ||
Number of Channels 1 | ||
Typical Rise Time 50ns | ||
Typical Fall Time 50ns | ||
Mounting Type Through Hole | ||
Number of Pins 5 | ||
Dimensions 30.73 x 6.35 x 25.65mm | ||
Height 25.65mm | ||
Length 30.73mm | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -40°C | ||
Slot Width 5.08mm | ||
Width 6.35mm | ||
Operating Temperature Range -40 → +85°C | ||
- COO (Country of Origin):
- MX
OPB916 and OPB917 Series Slotted Optical Switches
The OPB916 and OPB917 families of Photologic® slotted optical switches, from Optek Technology, offer you various options enabling design flexibility. This flexibility includes choices of slot width, aperture, shell material, mounting configurations and lead spacing, or wires. An opaque plastic housing minimises the sensitivity to visible and near IR light.
The OPB916 and OPB917 slotted optical switches feature a feep slow which offers longer reach of the optical path from the mounting plane.
The parallel faces inside the slot are covered with an IR transmissive plastic or opaque plastic with an opening. The IR transmissive plastic is suitable for applications which require dust protection and the opaque is for applications that require maximum protection against ambient light.
Suitable applications for the slotted optical switches include; mechanical switch replacement, speed indication, mechanical limit indication and edge sensing.
The OPB916 and OPB917 slotted optical switches feature a feep slow which offers longer reach of the optical path from the mounting plane.
The parallel faces inside the slot are covered with an IR transmissive plastic or opaque plastic with an opening. The IR transmissive plastic is suitable for applications which require dust protection and the opaque is for applications that require maximum protection against ambient light.
Suitable applications for the slotted optical switches include; mechanical switch replacement, speed indication, mechanical limit indication and edge sensing.
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
Slotted Optical Switches, Optek Technology
