Select all	Attribute	Value
	Brand	Finder
	Coil Voltage	24V dc
	Contact Configuration	SPDT
	Mounting Type	PCB Mount
	Maximum Switching Voltage AC	125V ac
	Maximum Switching Power DC	125 W
	Series	P1
	Length	13mm
	Latching	No
	Depth	7.6mm
	Height	6.9mm
	Terminal Type	Through Hole
	Number of Poles	1
	Switching Current	2A
	Coil Resistance	2.88 kΩ
	Contact Material	Gold Plated, Rhodium Plated Palladium Nickel
	Maximum Switching Power AC	125 VA
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+85°C
	Isolation Coil To Contact	1.5kV ac
	Life	10000000 (Electrical) cycles, 10000000 (Mechanical) cycles
	Coil Power	200mW

	Select all
	Brand Finder
	Coil Voltage 24V dc
	Contact Configuration SPDT
	Mounting Type PCB Mount
	Maximum Switching Voltage AC 125V ac
	Maximum Switching Power DC 125 W
	Series P1
	Length 13mm
	Latching No
	Depth 7.6mm
	Height 6.9mm
	Terminal Type Through Hole
	Number of Poles 1
	Switching Current 2A
	Coil Resistance 2.88 kΩ
	Contact Material Gold Plated, Rhodium Plated Palladium Nickel
	Maximum Switching Power AC 125 VA
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +85°C
	Isolation Coil To Contact 1.5kV ac
	Life 10000000 (Electrical) cycles, 10000000 (Mechanical) cycles
	Coil Power 200mW

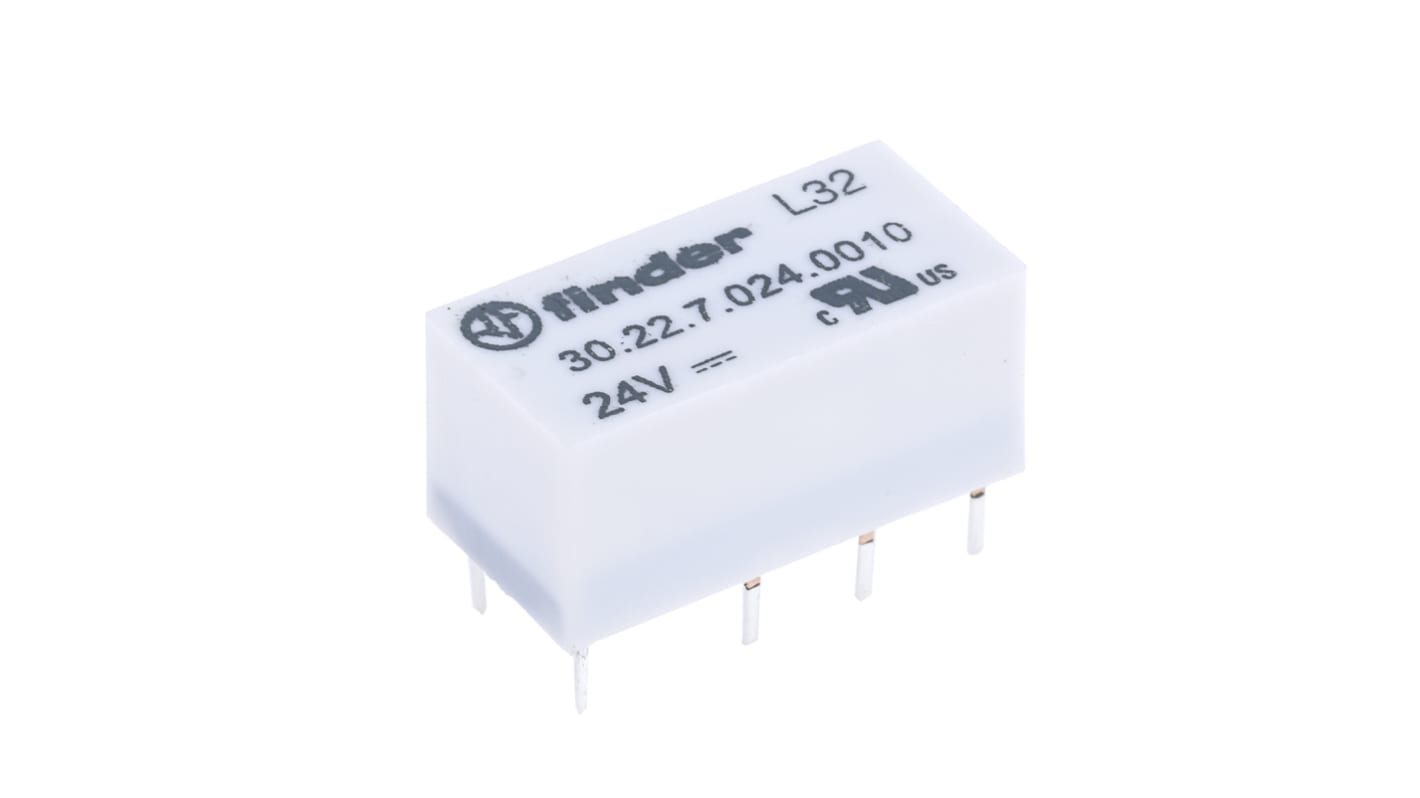

Finder PCB Mount Signal Relay, 24V dc Coil, 2A Switching Current, SPDT

FREE delivery for orders over MYR500.00

30 Series - 30.22
