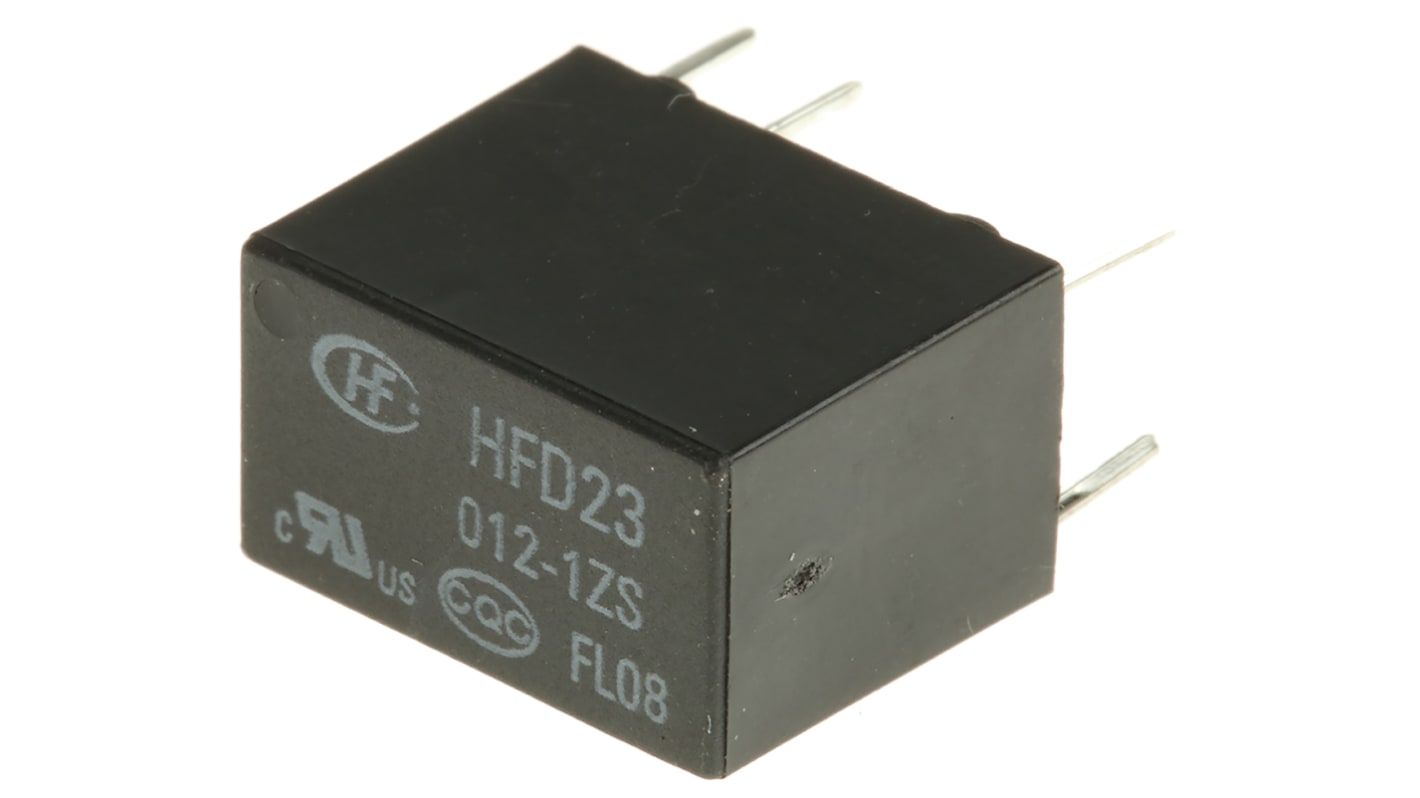

RS PRO PCB Mount Signal Relay, 12V dc Coil, 2A Switching Current, SPDT
- RS Stock No.:
- 476-725
- Distrelec Article No.:
- 304-05-678
- Manufacturer:
- RS PRO
Subtotal (1 unit)*
MYR13.37
FREE delivery for orders over RM 500.00
- 405 unit(s) ready to ship from another location
- Plus 3,178 unit(s) shipping from 26 December 2025
Units | Per Unit |
|---|---|
| 1 - 1 | MYR13.37 |
| 2 - 9 | MYR13.08 |
| 10 + | MYR10.76 |
*price indicative
- RS Stock No.:
- 476-725
- Distrelec Article No.:
- 304-05-678
- Manufacturer:
- RS PRO
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Coil Voltage | 12V dc | |
| Contact Configuration | SPDT | |
| Mounting Type | PCB Mount | |
| Maximum Switching Current AC | 2 A | |
| Maximum Switching Current DC | 2 A | |
| Maximum Switching Voltage AC | 125V | |
| Maximum Switching Voltage DC | 60V | |
| Maximum Switching Power DC | 30 W | |
| Latching | No | |
| Length | 12.5mm | |
| Depth | 7.5mm | |
| Height | 10mm | |
| Dimensions | 12.5 x 10 x 7.5mm | |
| Terminal Type | PCB Pin | |
| Switching Current | 2A | |
| Application | Signal | |
| Number of Poles | 1 | |
| Isolation Coil To Contact | 1.8kV rms | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -30°C | |
| Contact Material | AgNi + Au | |
| Operating Temperature Range | -30 → +70°C | |
| Maximum Switching Power AC | 62.5 VA | |
| Life | 10000000 (Mechanical) cycles, 90000 (Electrical) cycles | |
| Standards Met | CQC 02001001948, RoHS Compliant, UL E133481 | |
| Relay Switching Classification | Subminiature Signal Relay | |
| Coil Power | 50mW | |
| Coil Resistance | 960 Ω | |
| Electrical Life | 10^5 Operations | |
| Features | High Sensitive, 1 Form C Configuration, Wash Tight Type Available | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Coil Voltage 12V dc | ||
Contact Configuration SPDT | ||
Mounting Type PCB Mount | ||
Maximum Switching Current AC 2 A | ||
Maximum Switching Current DC 2 A | ||
Maximum Switching Voltage AC 125V | ||
Maximum Switching Voltage DC 60V | ||
Maximum Switching Power DC 30 W | ||
Latching No | ||
Length 12.5mm | ||
Depth 7.5mm | ||
Height 10mm | ||
Dimensions 12.5 x 10 x 7.5mm | ||
Terminal Type PCB Pin | ||
Switching Current 2A | ||
Application Signal | ||
Number of Poles 1 | ||
Isolation Coil To Contact 1.8kV rms | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -30°C | ||
Contact Material AgNi + Au | ||
Operating Temperature Range -30 → +70°C | ||
Maximum Switching Power AC 62.5 VA | ||
Life 10000000 (Mechanical) cycles, 90000 (Electrical) cycles | ||
Standards Met CQC 02001001948, RoHS Compliant, UL E133481 | ||
Relay Switching Classification Subminiature Signal Relay | ||
Coil Power 50mW | ||
Coil Resistance 960 Ω | ||
Electrical Life 10^5 Operations | ||
Features High Sensitive, 1 Form C Configuration, Wash Tight Type Available | ||
- COO (Country of Origin):
- CN
RS PRO Sub Miniature SPDT Non-Latching Signal Relay (12V dc)
Features and Benefits
- Non-latching signal relay
- Sub miniature size of 12.5 x 10 x 7.5mm
- High sensitivity of 150mW
- PCB mount
- Maximum switching voltage of 12Vdc
- Maximum switching current of 2A
- Contact rating: 0.5A @ 125Vac, 1A @ 30Vdc
