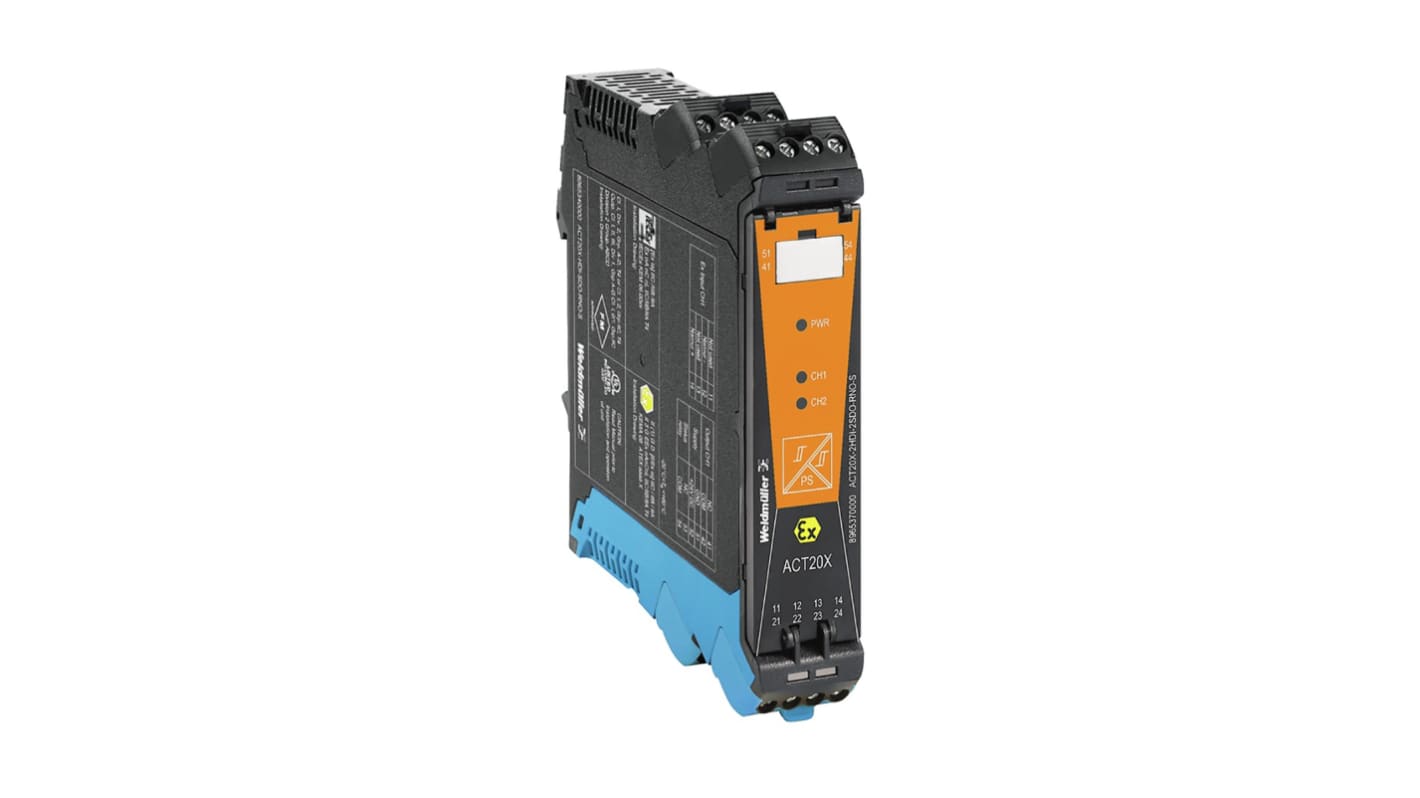

Weidmüller ACT20X Series Signal Conditioner, NAMUR Sensor, Switch Input, Relay Output, 19.2 → 31.2V Supply, IECEx
- RS Stock No.:
- 902-8004
- Mfr. Part No.:
- 8965370000
- Manufacturer:
- Weidmüller
4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR1,183.34
| Units | Per Unit |
| 1 + | MYR1,183.34 |
- RS Stock No.:
- 902-8004
- Mfr. Part No.:
- 8965370000
- Manufacturer:
- Weidmüller
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DK
Product Details
ACT20X HDI-SDO-RNC/RNO-S/2HDI-2SDO-RNO-S Signal Isolating Converter
The ACT20X HDI-SDO-RNC-S/HDI-RNO-S/2HDI-2SDO-RNO-S isolating converters with amplifiers are specially designed for recording NAMUR sensor signals and digital switching signal which originate for Ex zone 0. With 11 mm width per channel, these isolating converters makes the ideal device to use in electrical cabinets as they require little space.
DIN Rail mounting
22.5 mm width
NO or NC options available
Scew connection, removable terminal block
Alarm contacts in the event of a malfunction
1 channel & 2 channel options
IP20 protection
22.5 mm width
NO or NC options available
Scew connection, removable terminal block
Alarm contacts in the event of a malfunction
1 channel & 2 channel options
IP20 protection
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Module Type | Isolation Amplifier |
| Input Signal Type | NAMUR Sensor, Switch |
| Output Signal Type | Relay |
| Input Range | 8V dc |
| Output Range | 2A |
| Supply Voltage | 19.2 → 31.2V |
| Hazardous Area Certification | IECEx |
| Mounting Type | DIN Rail Mount |
| Operating Temperature Range | -20 → +60°C |
| Series | ACT20X |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +60°C |
| Termination | Screw |
