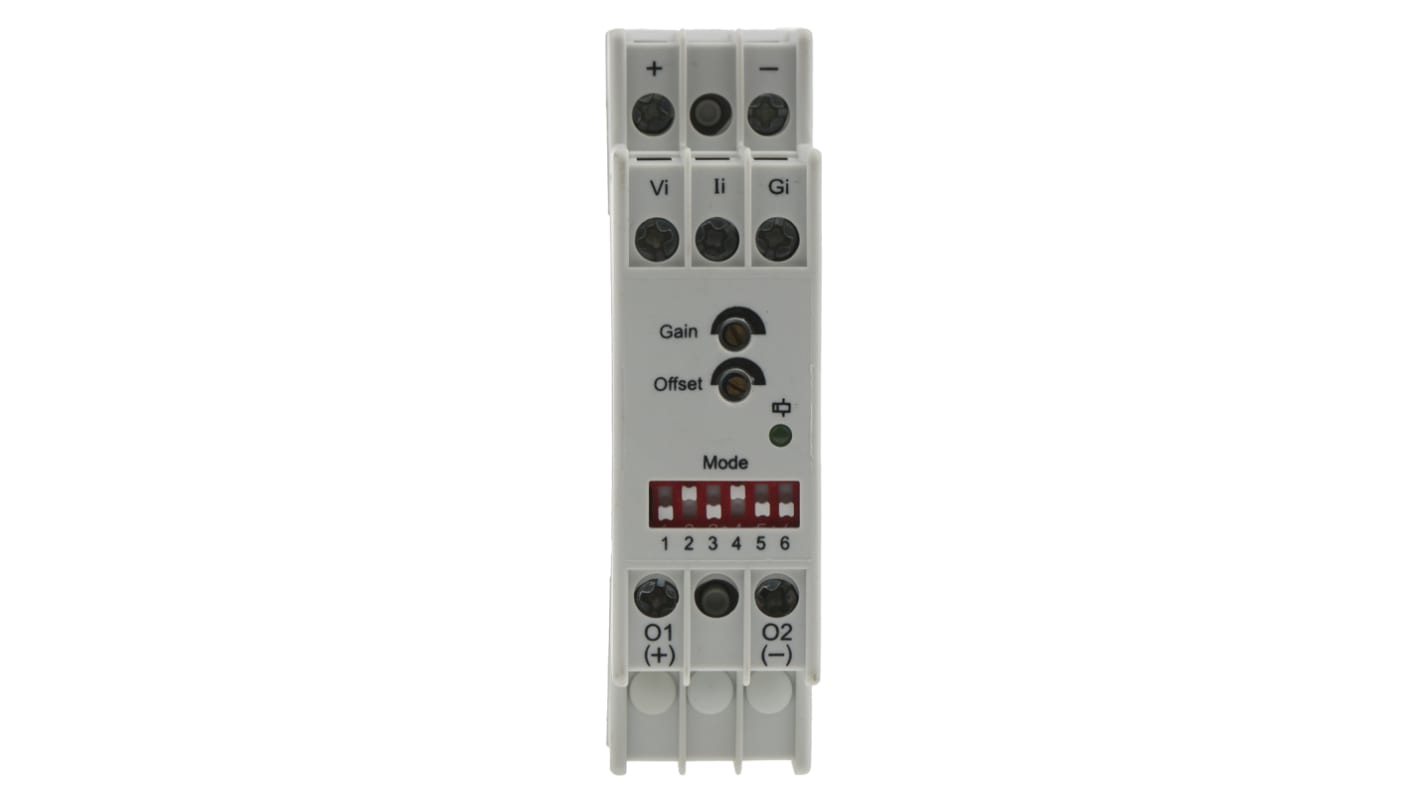

GIC 225 Series Signal Conditioner, Current/Voltage Input, Current/Voltage Output, 24V dc Supply
- RS Stock No.:
- 884-2458
- Mfr. Part No.:
- 2SC3D11CC3
- Manufacturer:
- GIC
Subtotal (1 unit)*
MYR650.73
FREE delivery for orders over RM 150.00
In Stock
- 134 unit(s) ready to ship from another location
- Plus 100 unit(s) shipping from 02 September 2026
- Plus 100 unit(s) shipping from 28 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR650.73 |
*price indicative
- RS Stock No.:
- 884-2458
- Mfr. Part No.:
- 2SC3D11CC3
- Manufacturer:
- GIC
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | GIC | |
| Product Type | Signal Conditioner | |
| Input Signal Type | Current/Voltage | |
| Output Signal Type | Current/Voltage | |
| Input Range | 0 → 10 V dc | |
| Isolation | 3.75kV | |
| Supply Voltage | 24V dc | |
| Hazardous Area Certification | No | |
| Mount Type | DIN Rail | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 55°C | |
| IP Rating | IP40, IP20 | |
| Standards/Approvals | RoHS Compliant, IEC 61000-4-6, IEC 61000-4-4, IEC 61000-4-3, IEC 60068-2-1, IEC 60068-2-2, CISPR 14-1, IEC 61000-4-2, IEC 61000-4-5, IEC 61000-4-29, IEC 60068-2-27, IEC 60068-2-6, UL94-V0 | |
| Series | 225 | |
| Number of Channels | 1 | |
| Select all | ||
|---|---|---|
Brand GIC | ||
Product Type Signal Conditioner | ||
Input Signal Type Current/Voltage | ||
Output Signal Type Current/Voltage | ||
Input Range 0 → 10 V dc | ||
Isolation 3.75kV | ||
Supply Voltage 24V dc | ||
Hazardous Area Certification No | ||
Mount Type DIN Rail | ||
Terminal Type Screw | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 55°C | ||
IP Rating IP40, IP20 | ||
Standards/Approvals RoHS Compliant, IEC 61000-4-6, IEC 61000-4-4, IEC 61000-4-3, IEC 60068-2-1, IEC 60068-2-2, CISPR 14-1, IEC 61000-4-2, IEC 61000-4-5, IEC 61000-4-29, IEC 60068-2-27, IEC 60068-2-6, UL94-V0 | ||
Series 225 | ||
Number of Channels 1 | ||
- COO (Country of Origin):
- IN
GIC Signal Transducer 24 Vdc
Signal transducer with configurable input/output configuration that can be selected via DIP switch combinations.
Includes choice of 16 analogue configurations with 3-way 3.75 kV galvanic isolation and less than 100 ms response time.
Also features adjustable gain and offset.
Slim 22.5 mm wide design
Fast response time
Easily configurable analog input/output
