Phoenix Contact MINI MCR Series Signal Conditioner, RTD Input, Current, Voltage Output, 9.6 → 30V dc Supply
- RS Stock No.:
- 849-6392
- Mfr. Part No.:
- 2902052
- Manufacturer:
- Phoenix Contact
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
2 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
Was MYR932.20
You pay
MYR885.59
| Units | Per Unit |
| 1 + | MYR885.59 |
- RS Stock No.:
- 849-6392
- Mfr. Part No.:
- 2902052
- Manufacturer:
- Phoenix Contact
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
MINI Analog Pro Signal Conditioners
The Mini Analog Pro signal conditioners from Phoenix Contact are the first 6mm range with plug-in connection technology. Using the latest switching technology, applications are made quicker and easier with the signal conditioners' highly compact and visible housing, easily accessible terminal points and current measurement. Users also benefit from simple configuration via DIP switches as well as extended configuration via software or smartphone app without needing additional accessories plus supports NFC communication
Easy startup and servicing: measures signals without disconnecting current loops and optional disconnect function
Excellent signal quality
Available with extended supply voltages and operating temperatures to suit a wide range of applications
Wiring with screw connection or tool-free plug-in technology
Excellent signal quality
Available with extended supply voltages and operating temperatures to suit a wide range of applications
Wiring with screw connection or tool-free plug-in technology

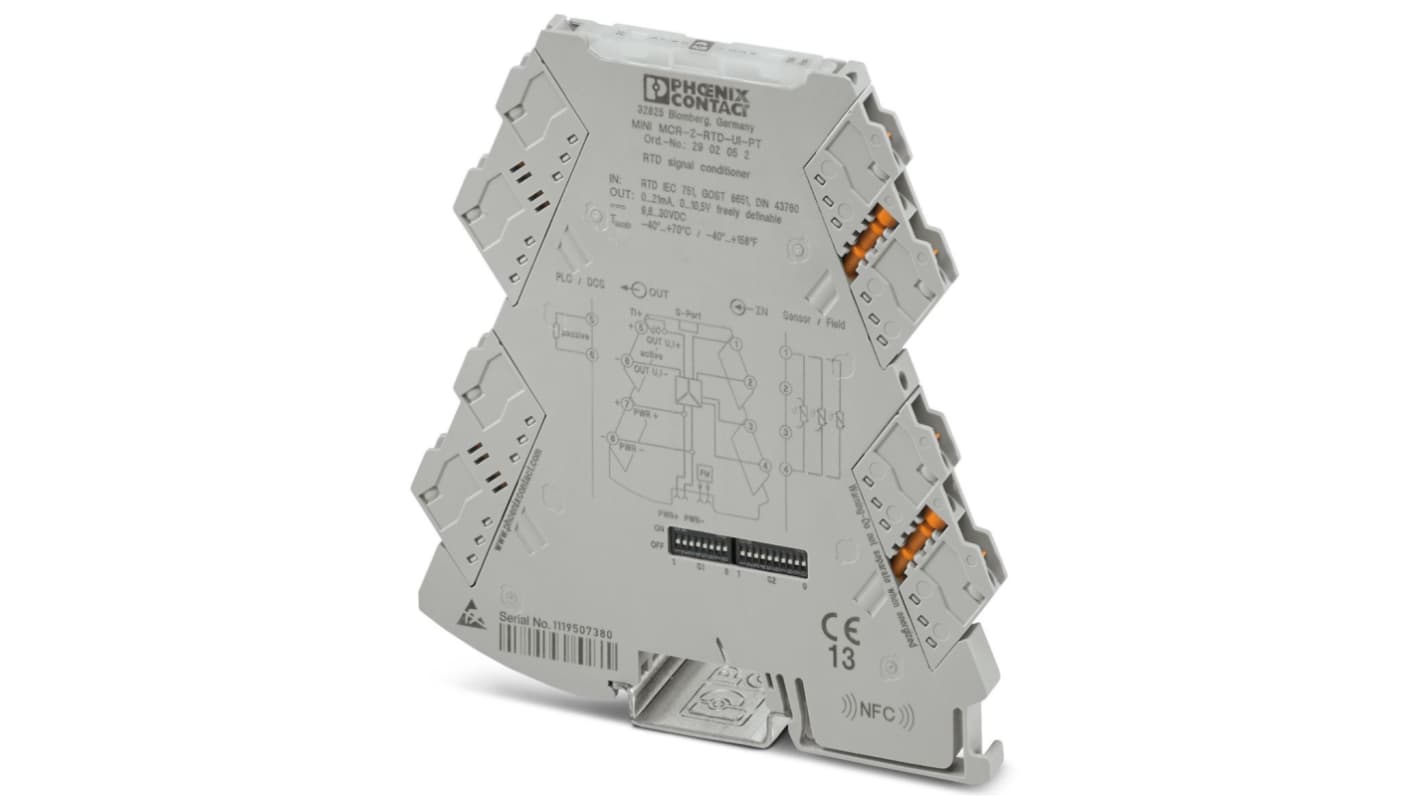

Phoenix Contact Resistance Measuring Transducer - MINIMCR-2-RTD-UIPT - 2902052
This transducer from Phoenix Contact converts resistance into a linear and freely configurable current or voltage signal. It's suitable for connecting to resistance thermometers and remote resistance-type sensors with 2, 3 and 4 conductor connectors.
The component's plug-in technology means it can be installed without the need for specialist equipment. Its terminal points are user-friendly and easy to access, which makes wiring conductors to the unit simple. This versatile transducer also supports fault-reporting technology and near-field communication (NFC), which allows it to wirelessly communicate with other NFC devices within short range.
You can manually configure the transducer using dual in-line packaging (DIP) switches or choose the mobile route and use the smartphone app. It meets Ex Zone standards for the classification of hazardous areas and has a flameproof enclosure to prevent potential electric ignitions.
The component's plug-in technology means it can be installed without the need for specialist equipment. Its terminal points are user-friendly and easy to access, which makes wiring conductors to the unit simple. This versatile transducer also supports fault-reporting technology and near-field communication (NFC), which allows it to wirelessly communicate with other NFC devices within short range.
You can manually configure the transducer using dual in-line packaging (DIP) switches or choose the mobile route and use the smartphone app. It meets Ex Zone standards for the classification of hazardous areas and has a flameproof enclosure to prevent potential electric ignitions.
• Input range of 0 Ω to 4000 Ω and -200°C to +850°C
• Operating temperature range of -40°C to +70°C
• DIN rail mounting type
• Output range of 0 V to 10.5 V and 0 mA to 24.6 mA
• RTD (resistance temperature detector) to current and RTD to voltage signal conditioner type
• Supply voltage of 9.6 V DC to 30 V DC
• Operating temperature range of -40°C to +70°C
• DIN rail mounting type
• Output range of 0 V to 10.5 V and 0 mA to 24.6 mA
• RTD (resistance temperature detector) to current and RTD to voltage signal conditioner type
• Supply voltage of 9.6 V DC to 30 V DC
Specifications
Attribute | Value |
|---|---|
| Module Type | Temperature Converter |
| Input Signal Type | RTD |
| Output Signal Type | Current, Voltage |
| Input Range | 0 → 4000 Ω, -200 → +850°C |
| Output Range | 0 → 10.5 V, 0 → 24.6mA |
| Supply Voltage | 9.6 → 30V dc |
| Mounting Type | DIN Rail Mount |
| Operating Temperature Range | -40 → +70°C |
| Series | MINI MCR |
| Termination | Plug-In |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +70°C |
