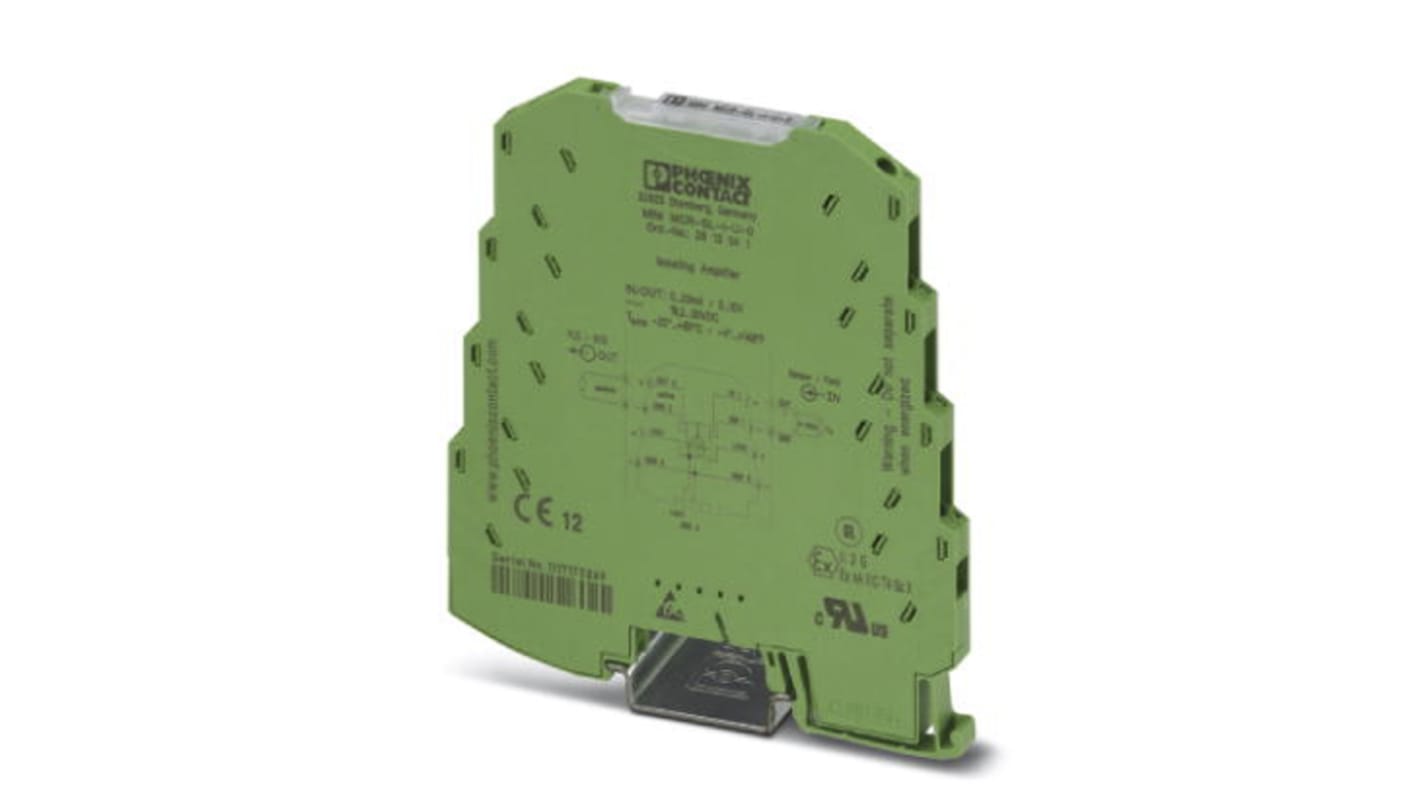

Phoenix Contact MINI MCR Series Signal Conditioner, Current Input, Voltage Output, 24V dc Supply, Class I, B, Div 2,
- RS Stock No.:
- 622-3221
- Mfr. Part No.:
- 2813541
- Manufacturer:
- Phoenix Contact
Subtotal (1 unit)*
MYR1,141.28
FREE delivery for orders over RM 150.00
Stocked by manufacturer
- Ready to ship from 21 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR1,141.28 |
*price indicative
- RS Stock No.:
- 622-3221
- Mfr. Part No.:
- 2813541
- Manufacturer:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Signal Conditioner | |
| Input Signal Type | Current | |
| Output Signal Type | Voltage | |
| Input Range | 0 → 20 mA | |
| Output Range | 0 → 10 V dc | |
| Supply Voltage | 24V dc | |
| Hazardous Area Certification | Class I, B, Div 2, Groups A, UL, ATEX, D T5, C, Ex II 3 G Ex nA IIC T4 Gc X | |
| Mount Type | DIN Rail | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 65°C | |
| IP Rating | IP20 | |
| Signal Conditioner Type | Isolating Amplifier | |
| Standards/Approvals | cUL, EN 60715, CE-, EN 61010, EN 61000-6-2, EN 61000-6-4, UL, GL, EMC Directive 2004/108/EC | |
| Series | MINI MCR | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Signal Conditioner | ||
Input Signal Type Current | ||
Output Signal Type Voltage | ||
Input Range 0 → 20 mA | ||
Output Range 0 → 10 V dc | ||
Supply Voltage 24V dc | ||
Hazardous Area Certification Class I, B, Div 2, Groups A, UL, ATEX, D T5, C, Ex II 3 G Ex nA IIC T4 Gc X | ||
Mount Type DIN Rail | ||
Terminal Type Screw | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 65°C | ||
IP Rating IP20 | ||
Signal Conditioner Type Isolating Amplifier | ||
Standards/Approvals cUL, EN 60715, CE-, EN 61010, EN 61000-6-2, EN 61000-6-4, UL, GL, EMC Directive 2004/108/EC | ||
Series MINI MCR | ||
- COO (Country of Origin):
- DE
Mini MCR — standardised signal isolating amplifier
Standardised input and output signals
3-way isolation
Screw connection
Overall width 6.2 mm
Energy supply via feed terminal, stock no.489-2926
Accessories
Hinged clear lid with additional labelling facility
Label for clear lid
Approvals
CE
