Phoenix Contact MACX MCR Series Signal Conditioner, <30.5V, Current Input, Current Output, ATEX
- RS Stock No.:
- 122-9819
- Mfr. Part No.:
- 2905280
- Manufacturer:
- Phoenix Contact
View all Signal Conditioners
2 In SG stock for delivery within 2 working days
1 In Global stock for delivery within 4 working day(s)
Price Each
MYR1,881.34
units | Per Unit |
1 + | MYR1,881.34 |
- RS Stock No.:
- 122-9819
- Mfr. Part No.:
- 2905280
- Manufacturer:
- Phoenix Contact
- COO (Country of Origin):
- DE
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

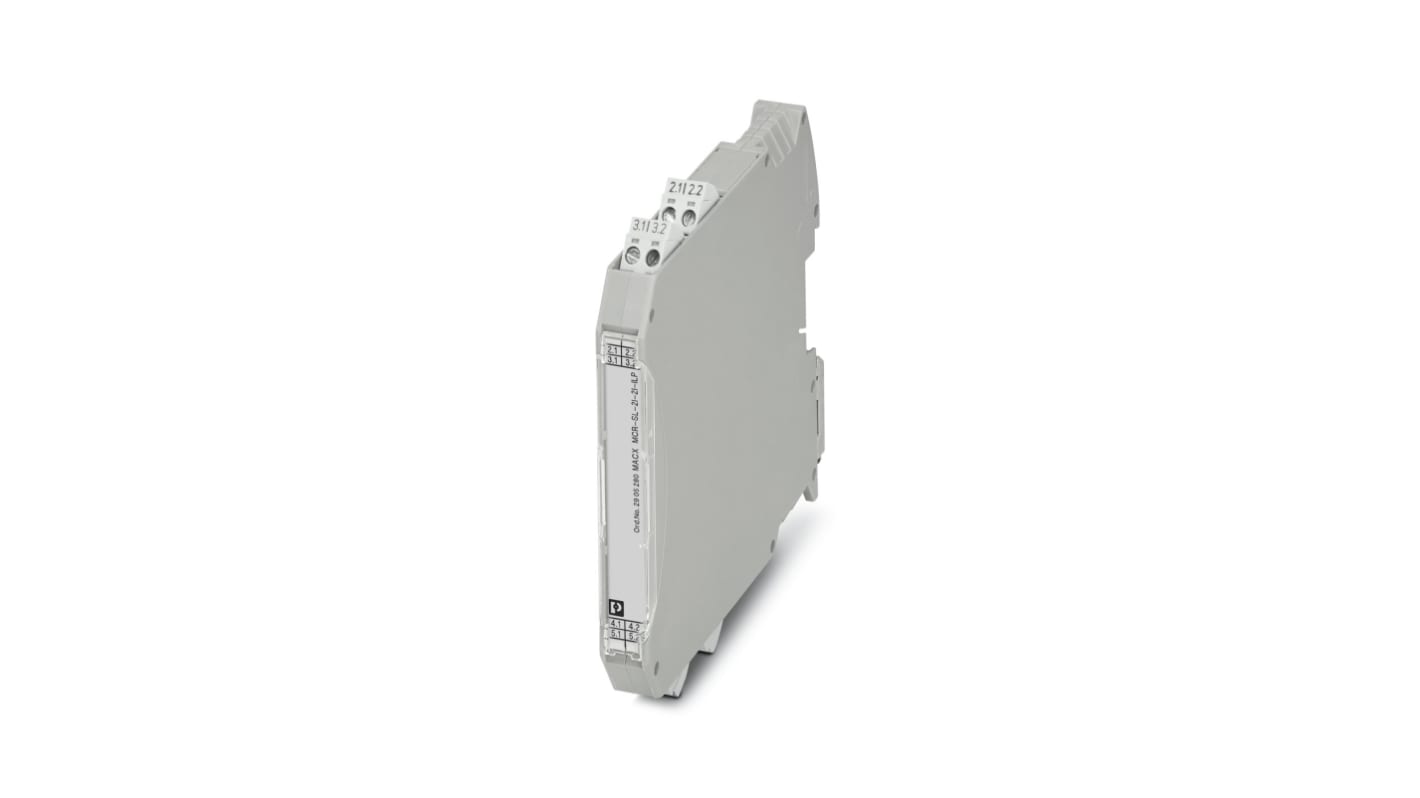

MACX MCR Loop Powered Isolators
Phoenix Contact MACX MCR series loop powered isolators for the electrical isolation of analogue signals. Available as single or dual channel devices with active sensor technology and a supply voltage of 6 V dc to 30 V dc.
Phoenix Contact Signal Conditioner, Current Input and Output Type,
Scratching your head for a way to convert analogue signals into a useable format? This current-to-current signal conditioner from Phoenix Contact gets the job done. Simply connect the input from a sensor with a current up to 20mA, and the unit will provide an output that's suitable for process monitoring and control devices. Two-way electrical isolation prevents interference, reducing the chance of incorrect readings.
It's a passive isolator, so it gets its power from the transmission loop, saving you the bother of having to plug it into a power source. The spring-cage connection technology makes the unit simple to affix to a terminal block, or you can screw it in for extra security.
This conditioner has a wide operating temperature range of -40°C to +85°C, making it suitable for use in harsh industrial environments. As long as your hands are dry, it's touch-proof and safe to handle without risk of electric shocks.
It's a passive isolator, so it gets its power from the transmission loop, saving you the bother of having to plug it into a power source. The spring-cage connection technology makes the unit simple to affix to a terminal block, or you can screw it in for extra security.
This conditioner has a wide operating temperature range of -40°C to +85°C, making it suitable for use in harsh industrial environments. As long as your hands are dry, it's touch-proof and safe to handle without risk of electric shocks.
Features & Benefits
PA housing is hardwearing and abrasion-resistant for a long lifespan
Compact dimensions of 99 (H) x 12.5 (W) x 114.5mm (D) for installation in tight spaces
DIN rail mounting makes it simple to snap into place
Compact dimensions of 99 (H) x 12.5 (W) x 114.5mm (D) for installation in tight spaces
DIN rail mounting makes it simple to snap into place
Specifications
Attribute | Value |
Module Type | Loop Powered Isolator |
Input Signal Type | Current |
Output Signal Type | Current |
Supply Voltage | <30.5V |
Input Range | 0 → 20 mA, 4 → 20mA |
Output Range | 0 → 20 mA, 4 → 20mA |
Hazardous Area Certification | ATEX |
Mounting Type | DIN Rail Mount |
Operating Temperature Range | -40 → +85°C |
Maximum Operating Temperature | +85°C |
Termination | Screw |
Standards Met | EAC |
Series | MACX MCR |
Minimum Operating Temperature | -40°C |
