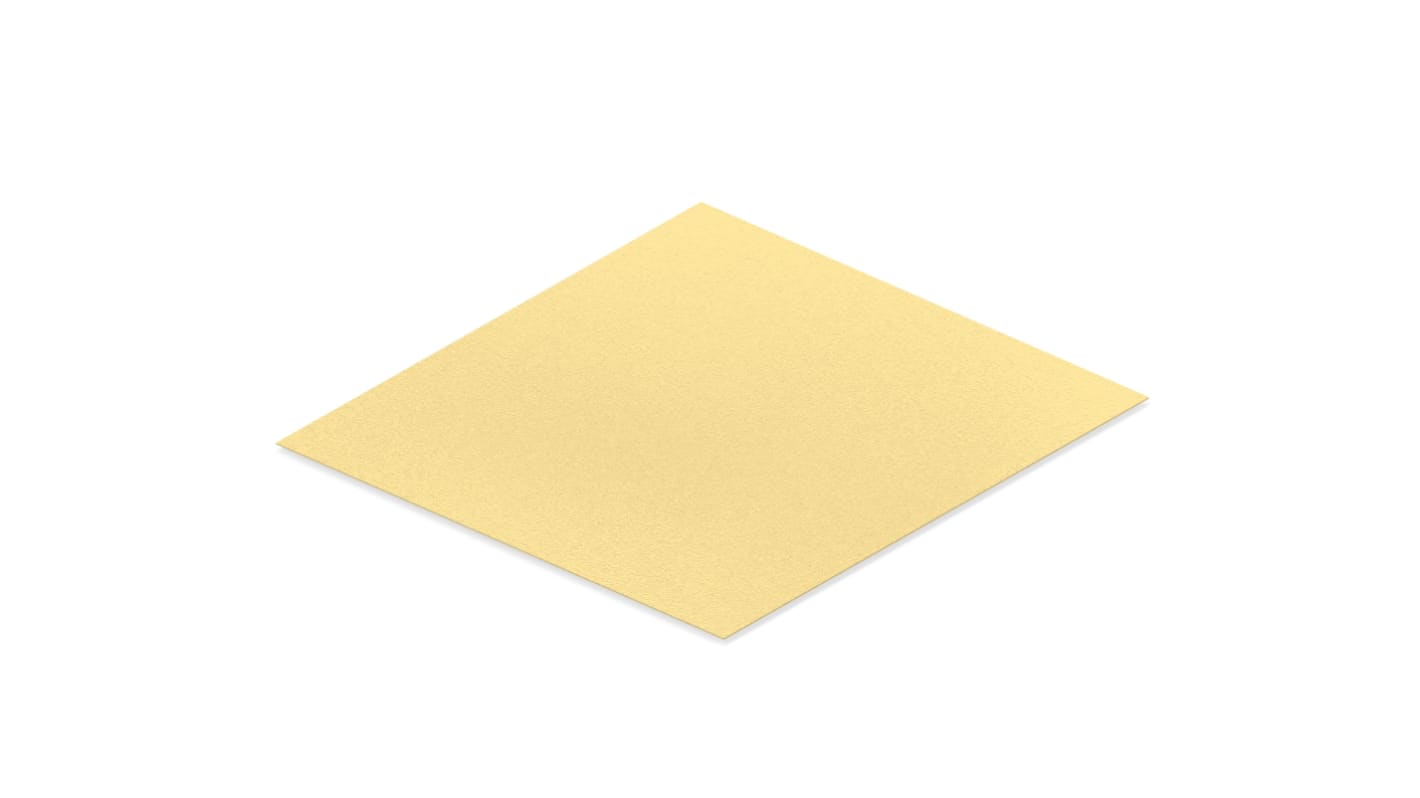

TE Connectivity Silicone Shielding Sheet, 300mm x 300mm x 0.8mm
- RS Stock No.:
- 255-7220
- Mfr. Part No.:
- 1212-SSA-0008
- Manufacturer:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
MYR1,998.69
FREE delivery for orders over RM 500.00
Last RS stock
- Final 10 unit(s), ready to ship from another location
Units | Per Unit |
|---|---|
| 1 - 4 | MYR1,998.69 |
| 5 + | MYR1,945.56 |
*price indicative
- RS Stock No.:
- 255-7220
- Mfr. Part No.:
- 1212-SSA-0008
- Manufacturer:
- TE Connectivity
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Material | Silicone | |
| Fixing Method | Surface Mount | |
| Thickness | 0.8mm | |
| Series | Kemtron 1212 | |
| Length | 300mm | |
| Width | 300mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Material Silicone | ||
Fixing Method Surface Mount | ||
Thickness 0.8mm | ||
Series Kemtron 1212 | ||
Length 300mm | ||
Width 300mm | ||
- COO (Country of Origin):
- GB
The TE Connectivity shielding sheet is used to reduce electromagnetic interference.It is a practice of reducing the electromagnetic field in a space with the help of barriers made up of conductive or magnetic materials.The conductive elastomers are fully cured silicones or fluorosilicone loaded with a variety of highly conductive particles providing superior EMI/RFI shielding performance combined with excellent environmental sealing. Sheet size-300mm sq x 0.8mm thick.
Conductive sheet
The sheet consist of a silicone as a binding material and silver plated aluminum as a filler material
Operating temperature ranges between -55 to 160 °C
Maximum volume resistivity is 0.008 Ω.cm
Closing Force is 10 N/cm²
The sheet consist of a silicone as a binding material and silver plated aluminum as a filler material
Operating temperature ranges between -55 to 160 °C
Maximum volume resistivity is 0.008 Ω.cm
Closing Force is 10 N/cm²
