Units	Per Unit
1 - 4	MYR141.21
5 - 9	MYR138.37
10 - 49	MYR135.59
50 +	MYR132.87

Select all	Attribute	Value
	Brand	HARTING
	Series	2134
	Number of Cores	4
	Cross Sectional Area	0.34 mm²
	Sheath Colour	Grey
	Length	5m
	Sheath Material	PUR
	Connector 1 Gender	Female
	Connector 1 Orientation	Straight
	Connector 1	M12
	Connector 1 Number of Contacts	4
	Connector 2	M12
	Connector 2 Gender	Male
	Connector 2 Orientation	Straight
	Connector 2 Housing Gender	Male
	Connector 2 Number of Contacts	4
	Coding	A
	Shielded/Unshielded	Unshielded
	IP Rating	IP67
	Standards Met	IEC 61076-2-101, ISO/IEC 11 801, ISO/IEC 24 702, RoHS Compliant
	Maximum Operating Temperature	+80°C
	Minimum Operating Temperature	-25°C
	Operating Temperature Range	-25 → +80 °C
	Cable Shape	Multicore
	American Wire Gauge	22 AWG
	Connector 1 Housing Gender	Female

	Select all
	Brand HARTING
	Series 2134
	Number of Cores 4
	Cross Sectional Area 0.34 mm²
	Sheath Colour Grey
	Length 5m
	Sheath Material PUR
	Connector 1 Gender Female
	Connector 1 Orientation Straight
	Connector 1 M12
	Connector 1 Number of Contacts 4
	Connector 2 M12
	Connector 2 Gender Male
	Connector 2 Orientation Straight
	Connector 2 Housing Gender Male
	Connector 2 Number of Contacts 4
	Coding A
	Shielded/Unshielded Unshielded
	IP Rating IP67
	Standards Met IEC 61076-2-101, ISO/IEC 11 801, ISO/IEC 24 702, RoHS Compliant
	Maximum Operating Temperature +80°C
	Minimum Operating Temperature -25°C
	Operating Temperature Range -25 → +80 °C
	Cable Shape Multicore
	American Wire Gauge 22 AWG
	Connector 1 Housing Gender Female

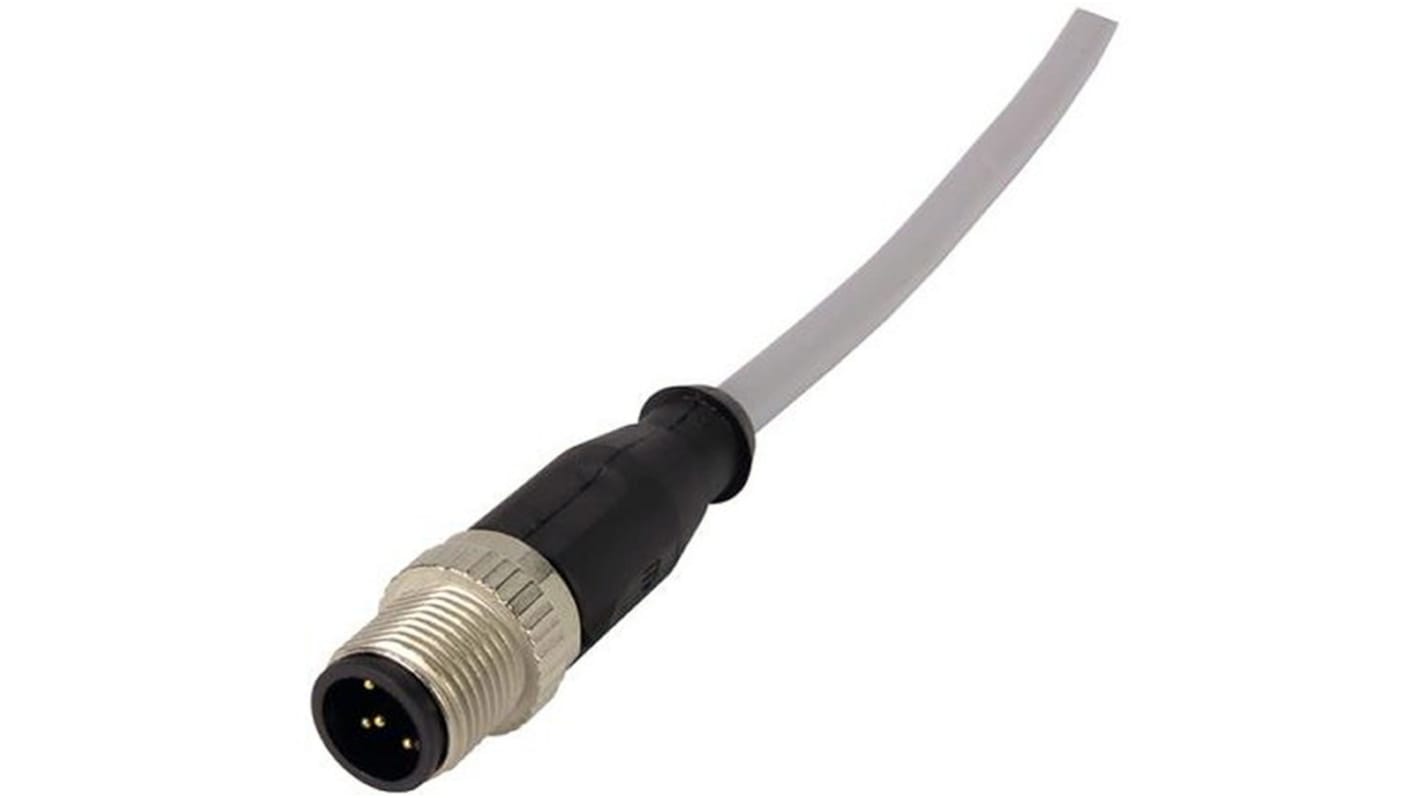

HARTING Straight Female 4 way M12 to Straight Male 4 way M12 Sensor Actuator Cable, 5m

FREE delivery for orders over MYR500.00

M12 A-Coded Male to Female Connector Cordsets
