Phoenix Contact Male 3 way M8 to Sensor Actuator Cable, 1.5m
- RS Stock No.:
- 861-3247
- Mfr. Part No.:
- 1406469
- Manufacturer:
- Phoenix Contact
Temporarily out of stock - back order for despatch 02/07/2024, delivery within 4 working days from despatch date
Price Each
MYR73.20
| Units | Per Unit |
| 1 + | MYR73.20 |
- RS Stock No.:
- 861-3247
- Mfr. Part No.:
- 1406469
- Manufacturer:
- Phoenix Contact
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- PL
Product Details

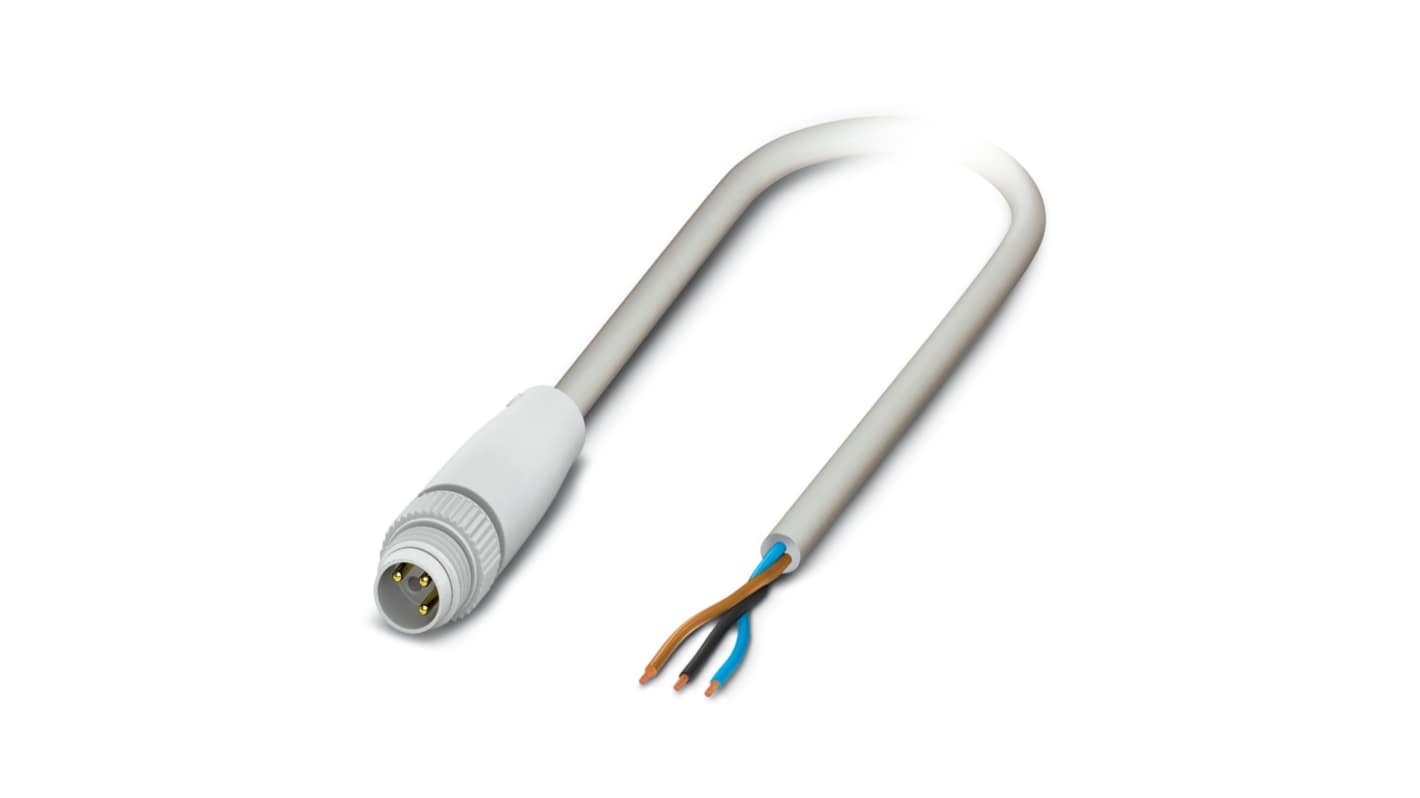

Sensor/actuator cable, 3-position, PP-EPDM halogen-free, gray RAL 7035, Plug straight M8, on free cable end, cable length: 1.5 m, Hygienic design, with plastic knurl
Contamination can be detected quickly – thanks to the light color
Easy and safe: 100% electrically tested plug-in components
Easy to clean, thanks to the special hygienic design
Specifications
Attribute | Value |
|---|---|
| Series | SAC |
| Cross Sectional Area | (Signal Line) 3x 0.25 mm² |
| Number of Cores | 3 |
| Length | 1.5m |
| Connector 1 Number of Contacts | 3 |
| Connector 1 Gender | Male |
| Connector 1 | M8 |
| Current Rating | 4 A |
| Voltage Rating | 60 V |
| IP Rating | IP65, IP67, IP68, IP69K |
| Connector 1 Housing Gender | Male |
| American Wire Gauge | 24 AWG |
| Conductor Material | Bare Cu litz wires |
| Minimum Bend Radius | 10 x D (Flexible) 5 x D (Fixed) |
