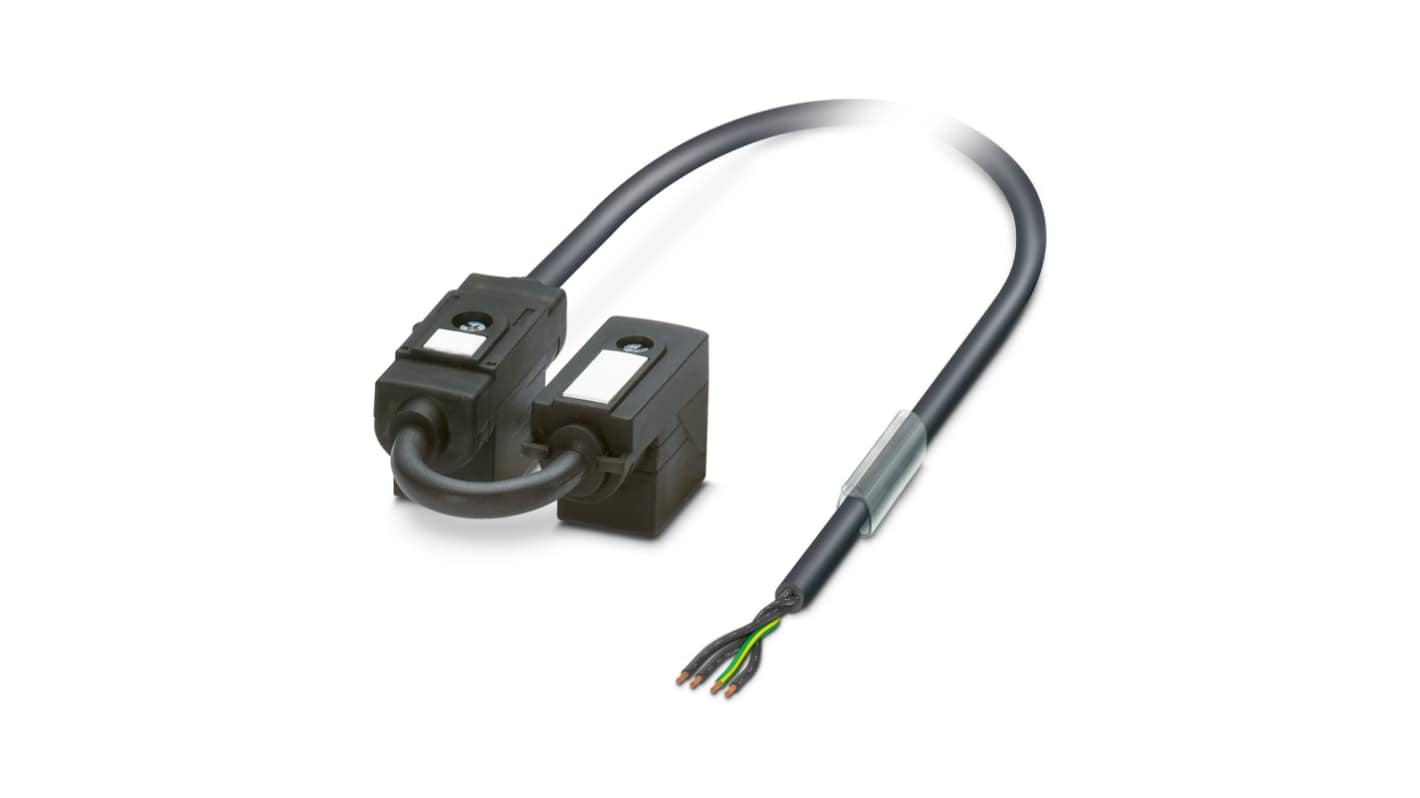

Phoenix Contact 4 way DIN 43650 Form B x 2 to Sensor Actuator Cable, 3m
- RS Stock No.:
- 858-8299
- Mfr. Part No.:
- 1458172
- Manufacturer:
- Phoenix Contact
Discontinued product
- RS Stock No.:
- 858-8299
- Mfr. Part No.:
- 1458172
- Manufacturer:
- Phoenix Contact
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Series | SAC | |
Cross Sectional Area | 0.75 mm² | |
Number of Cores | 4 | |
Sheath Material | PUR | |
Length | 3m | |
Sheath Colour | Black | |
Connector 1 Number of Contacts | 4 | |
Connector 1 | DIN 43650 Form B x 2 | |
Current Rating | 4 A | |
Voltage Rating | 24 V | |
IP Rating | IP65, IP67 | |
Insulation Material | PVC | |
Cable Shape | Twisted Pair | |
Outer Diameter | 6.3mm | |
American Wire Gauge | 18 AWG | |
Minimum Bend Radius | 63 mm | |
Conductor Material | Bare Cu litz wires | |
