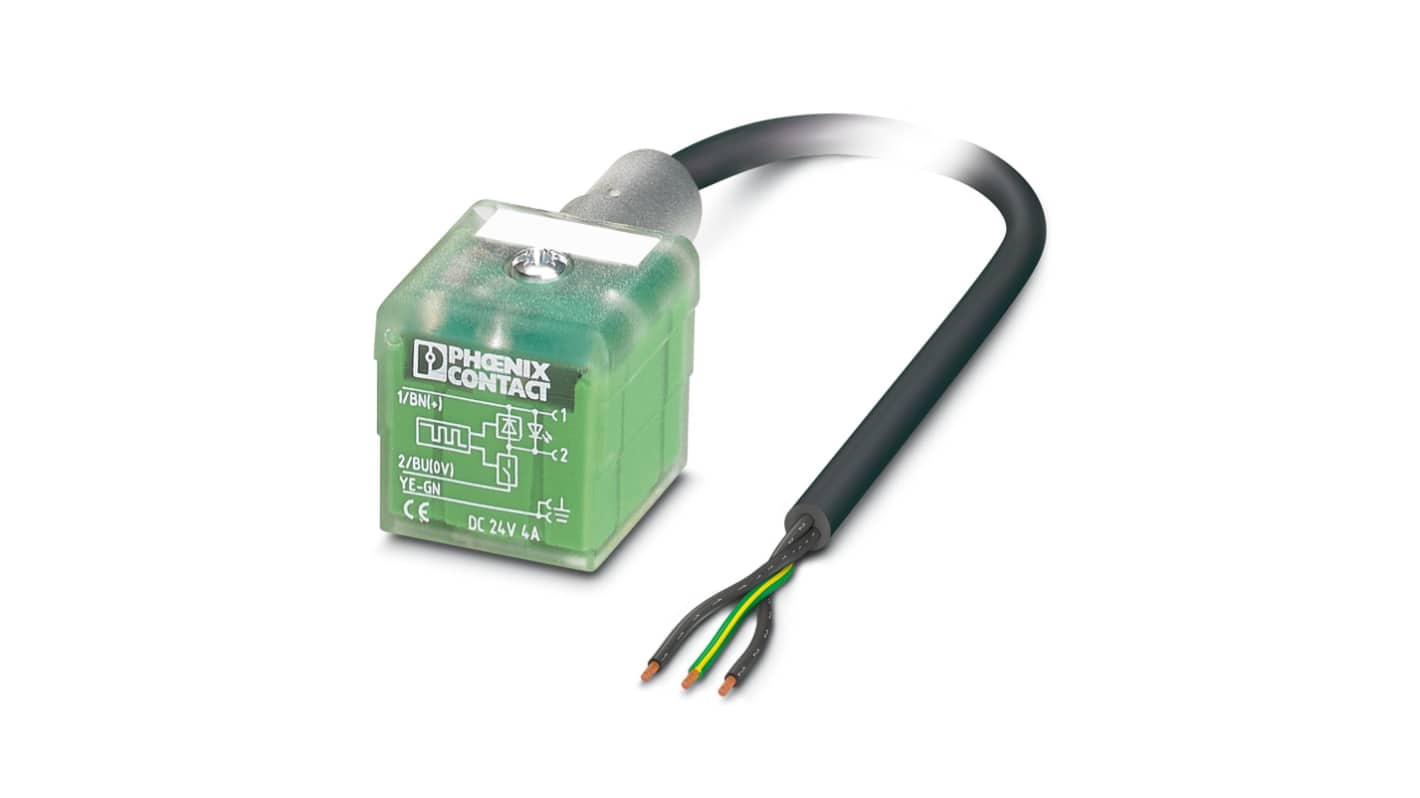

Phoenix Contact Straight Male 3 way DIN 43650 Form A to Unterminated Sensor Actuator Cable, 10m

RS Stock No.:: 857-5666
Mfr. Part No.:: 1401168
Manufacturer:: Phoenix Contact

Phoenix Contact Straight Male 3 way DIN 43650 Form A to Unterminated Sensor Actuator Cable, 10m

Price Each**

MYR251.03

Temporarily out of stock - back order for despatch 03/03/2025, delivery within 4 working days from despatch date*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit
1 +	MYR251.03

**price indicative

RS Stock No.:: 857-5666
Mfr. Part No.:: 1401168
Manufacturer:: Phoenix Contact

Datasheet

Attribute	Value
Series	SAC-3P
Number of Cores	3
Cross Sectional Area	0.5 mm²
Sheath Colour	Black/Grey
Sheath Material	PUR
Length	10m
Connector 1 Number of Contacts	3
Connector 1 Orientation	Straight
Connector 1	DIN 43650 Form A
Connector 1 Gender	Male
Connector 2	Unterminated
Voltage Rating	24 V dc
Current Rating	4 A
IP Rating	IP67
Insulation Material	PP
American Wire Gauge	20 AWG
Cable Shape	Twisted Pair
Oil Resistant	Yes
Fire Behaviour	Halogen Free
Connector 1 Housing Gender	Male
Outer Diameter	4.5mm
Conductor Material	Bare Cu litz wires
Minimum Bend Radius	22.5 mm

Phoenix Contact Straight Male 3 way DIN 43650 Form A to Unterminated Sensor Actuator Cable, 10m
