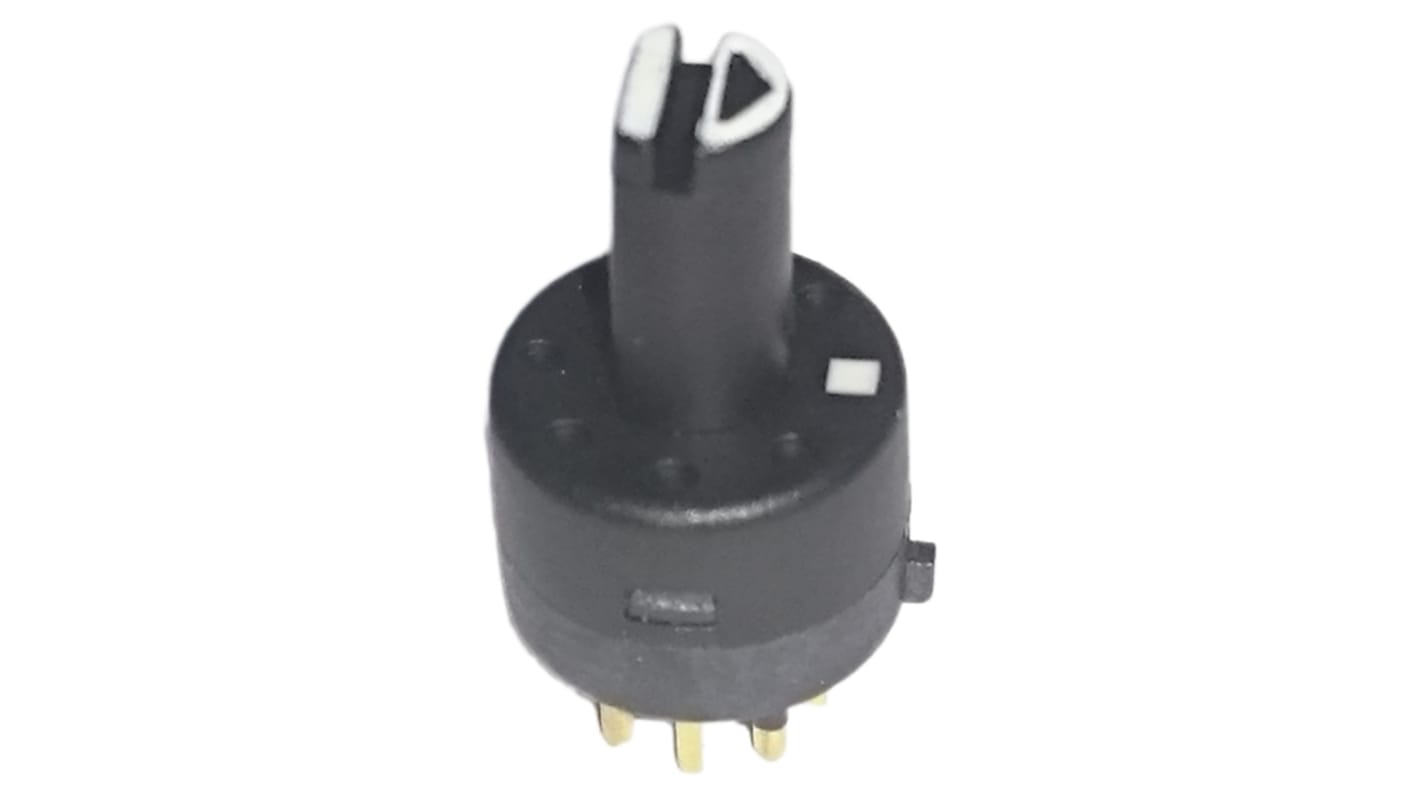

Lorlin, 2 Position SP2T Rotary Switch, 500 mA, PCB Pin
- RS Stock No.:
- 899-8554
- Mfr. Part No.:
- MTL-21-20
- Manufacturer:
- Lorlin
Bulk discount available
Subtotal (1 unit)**
MYR31.34
40 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
|---|---|
| 1 - 9 | MYR31.34 |
| 10 - 24 | MYR30.68 |
| 25 - 49 | MYR29.74 |
| 50 - 199 | MYR29.01 |
| 200 + | MYR28.38 |
**price indicative
- RS Stock No.:
- 899-8554
- Mfr. Part No.:
- MTL-21-20
- Manufacturer:
- Lorlin
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lorlin | |
| Contact Configuration | SP2T | |
| Contact Current Rating | 500 mA | |
| Number of Switch Positions | 2 | |
| Number of Contacts | 8 | |
| Voltage Rating | 24V ac/dc | |
| Diameter | 9.2mm | |
| Dimensions | 9.2 (Dia.) x 14.2mm | |
| Mounting Type | PCB | |
| Mounting Hole Size | 0.76mm | |
| Terminal Type | PCB Pin | |
| Maximum Operating Temperature | +65°C | |
| Contact Type | Shorting | |
| Actuator Colour | Black | |
| Angle of Throw | 45° | |
| Minimum Operating Temperature | -30°C | |
| Mechanical Life | >5000Cycles | |
| Case Material | Glass Filled Polyester PBT | |
| Contact Material | Gold Plated Brass | |
| Height | 14.2mm | |
