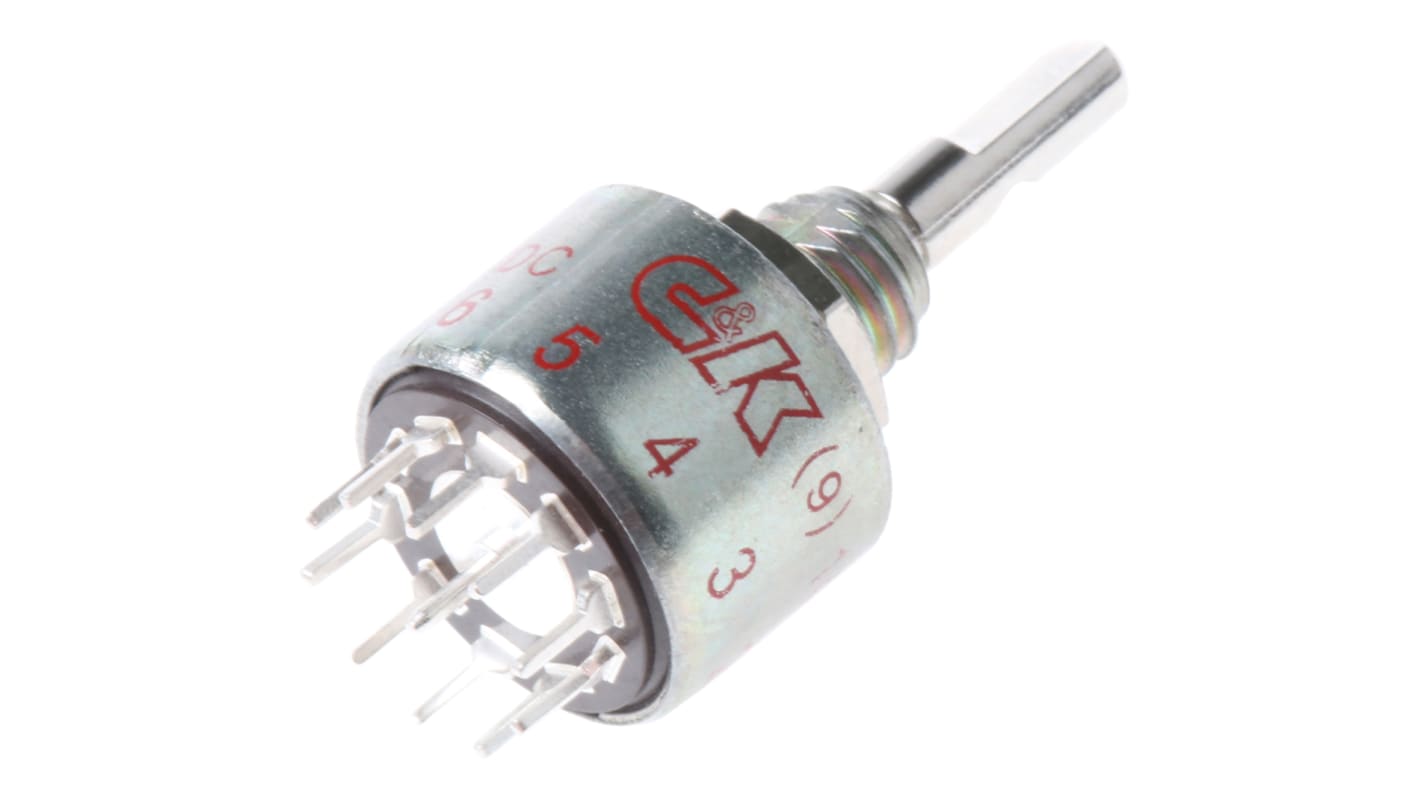

C & K, 5 Position SPST Rotary Switch, 250 mA@ 125 V ac, 250 mA@ 28 V dc, 6 A@ 125 V ac, 6 A@ 28 V dc, PC Terminal
- RS Stock No.:
- 793-1718
- Mfr. Part No.:
- MA05L1NCQD
- Manufacturer:
- C & K
5 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Price Each
MYR77.06
Units | Per Unit |
|---|---|
| 1 - 24 | MYR77.06 |
| 25 - 49 | MYR75.52 |
| 50 - 99 | MYR74.01 |
| 100 + | MYR72.53 |
- RS Stock No.:
- 793-1718
- Mfr. Part No.:
- MA05L1NCQD
- Manufacturer:
- C & K
Technical data sheets
Legislation and Compliance
Product Details
M Series Rotary Switch
The M series half- inch rotary switches are designed for use in a wide variety of applications including test equipment, industrial equipment and medical equipment. For durability they have a stainless steel actuator and non-shorting contacts.
Metal bodied rotary switches with 36° indexing for panel mounting
Break before make contacts
Panel cut-out: Ø6.35mm
Shaft: Ø3.17mm; Length: 10.15mm
Break before make contacts
Panel cut-out: Ø6.35mm
Shaft: Ø3.17mm; Length: 10.15mm
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SP |
| Contact Current Rating | 250 mA@ 125 V ac, 250 mA@ 28 V dc, 6 A@ 125 V ac, 6 A@ 28 V dc |
| Number of Switch Positions | 5 |
| Number of Contacts | 5 |
| Voltage Rating | 28 V dc, 125V ac |
| Diameter | 13.34mm |
| Dimensions | 13.34 (Dia.) x 9.4mm |
| Mounting Type | Through Hole |
| Mounting Hole Size | 1.17 mm |
| Terminal Type | PC Terminal |
| Application | Industrial Equipment, Medical Equipment, Test Equipment |
| Maximum Operating Temperature | +85°C |
| Case Material | Zinc Plated Zinc Alloy |
| Height | 9.4mm |
| Minimum Operating Temperature | -30°C |
| Mechanical Life | 10000Cycles |
| Contact Material | Silver Plated Copper Alloy |
