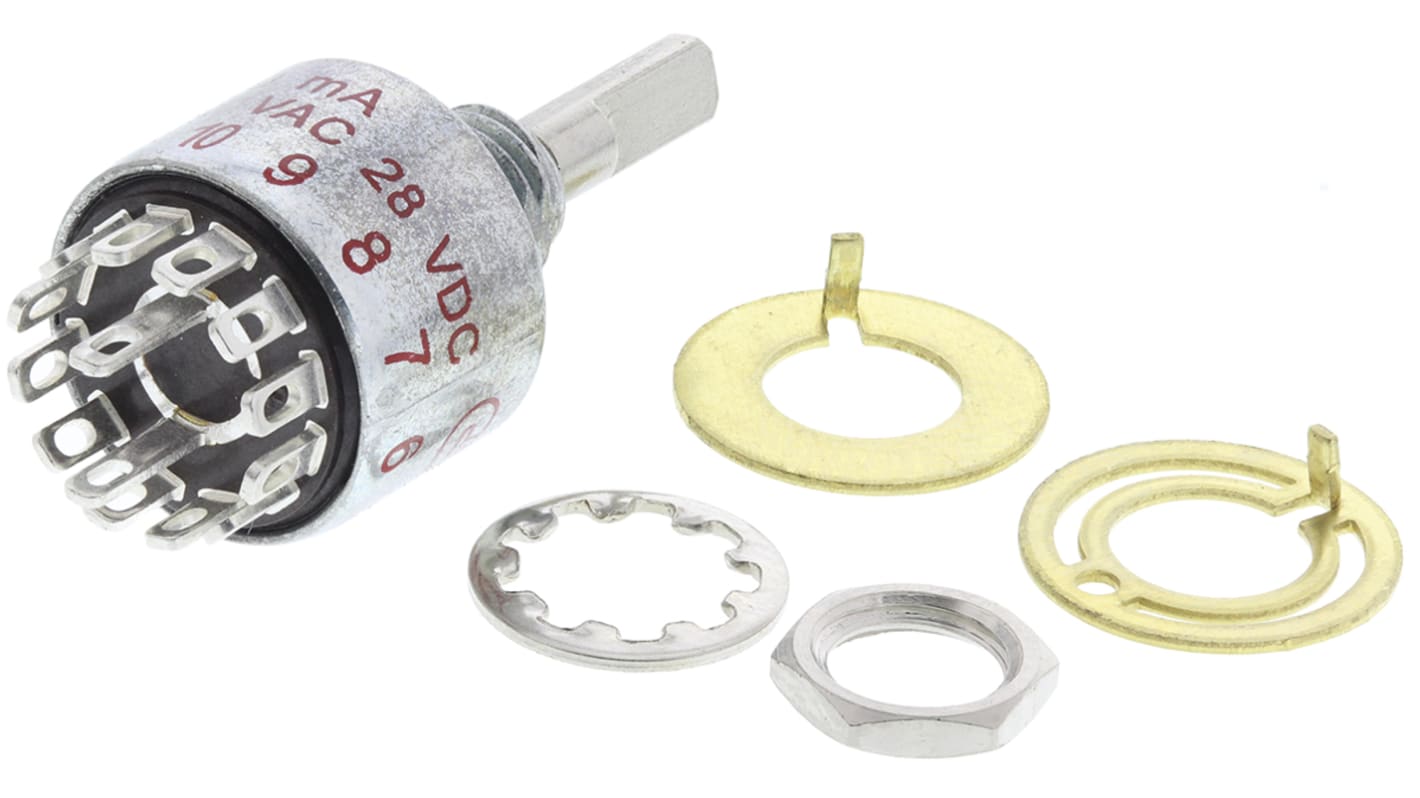

C & K, 6 Position DPST Rotary Switch, 250 mA @ 28 V dc, Solder
- RS Stock No.:
- 161-5114
- Mfr. Part No.:
- MH00L1NZQD
- Manufacturer:
- C & K
81 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR104.57
| Units | Per Unit |
| 1 - 99 | MYR104.57 |
| 100 - 249 | MYR102.37 |
| 250 - 499 | MYR99.30 |
| 500 + | MYR96.86 |
- RS Stock No.:
- 161-5114
- Mfr. Part No.:
- MH00L1NZQD
- Manufacturer:
- C & K
Technical data sheets
Legislation and Compliance
Product Details
Miniature Rotary Switches
These half-inch rotary switches are designed for use in a wide variety of application including test equipment, industrial equipment and medical equipment. For durability they feature a stainless steel actuator and non-shorting contacts.
Metal bodied rotary switches with 30° indexing for panel mounting
Offered in a non-stop rotating version which can be set from 2 to 6 or 12 positions, depending on the model, by use of the stop ring supplied
Available in single pole 12-way (161-5108) and double pole 6-way (161-5114) versions
Break before make contacts
Panel cut-out: Ø6.35mm
Shaft: Ø3.17mm; Length: 9.53mm
Offered in a non-stop rotating version which can be set from 2 to 6 or 12 positions, depending on the model, by use of the stop ring supplied
Available in single pole 12-way (161-5108) and double pole 6-way (161-5114) versions
Break before make contacts
Panel cut-out: Ø6.35mm
Shaft: Ø3.17mm; Length: 9.53mm
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | DP |
| Contact Current Rating | 250 mA @ 28 V dc |
| Number of Switch Positions | 6 |
| Number of Contacts | 2 |
| Voltage Rating | 125 V ac, 28V dc |
| Depth | 13.34mm |
| Width | 13.34mm |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Height | 31.37mm |
| Minimum Operating Temperature | -30°C |
| Case Material | Zinc Alloy |
| Contact Material | Silver Plated Copper Alloy |
| Maximum Operating Temperature | +85°C |
| Angle of Throw | 30° |
