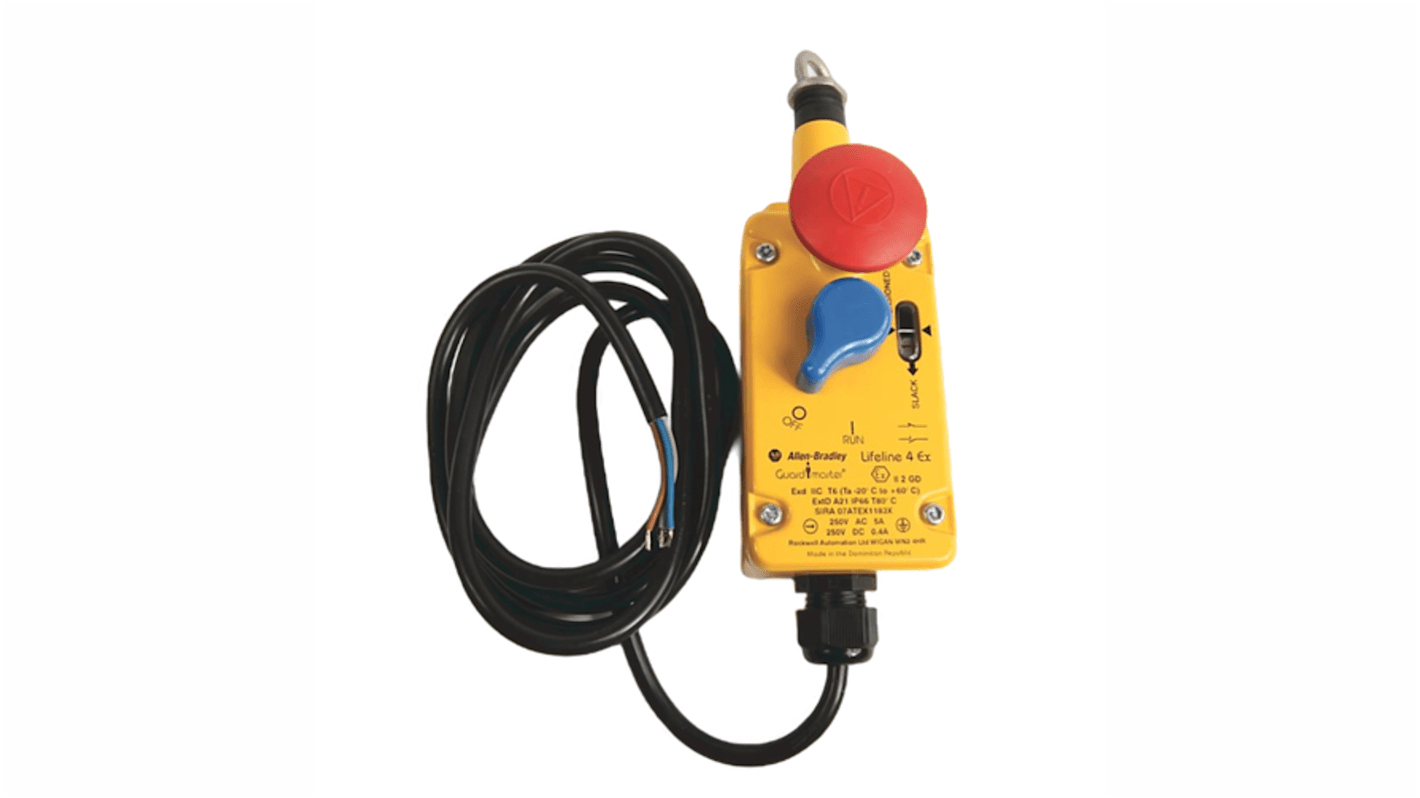

Allen Bradley Lifeline Cable Switch 62 mm, 2 NC

Name: Allen Bradley Lifeline Cable Switch 62 mm, 2 NC
Brand: Allen Bradley
SKU: 264-9446
Price: 2768.91 MYR
Availability: InStock

Subtotal (1 unit)*

MYR2,768.91

In Stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR2,768.91

*price indicative

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Allen Bradley
	Product Type	Cable Switch
	Contact Configuration	2 NC
	IP Rating	IP67
	Series	Lifeline
	Minimum Operating Temperature	-20°C
	Reset Button	Yes
	E-Stop Button	Yes
	Maximum Operating Temperature	80°C
	Standards/Approvals	IEC 60947-5-1, IEC 60947-5-5, ISO 13850
	Depth	115mm
	Length	62mm
	Width	51mm
	Housing Material	Aluminium
	Hazardous Area Certification	No
	Mechanical Life	1000000Cycles
	Conduit Entry	M20

	Select all
	Brand Allen Bradley
	Product Type Cable Switch
	Contact Configuration 2 NC
	IP Rating IP67
	Series Lifeline
	Minimum Operating Temperature -20°C
	Reset Button Yes
	E-Stop Button Yes
	Maximum Operating Temperature 80°C
	Standards/Approvals IEC 60947-5-1, IEC 60947-5-5, ISO 13850
	Depth 115mm
	Length 62mm
	Width 51mm
	Housing Material Aluminium
	Hazardous Area Certification No
	Mechanical Life 1000000Cycles
	Conduit Entry M20

RoHS Status: Exempt

The Rockwell Automation cable pull switch has 2 NC safety contacts. It is an explosion proof.

Die cast alloy
