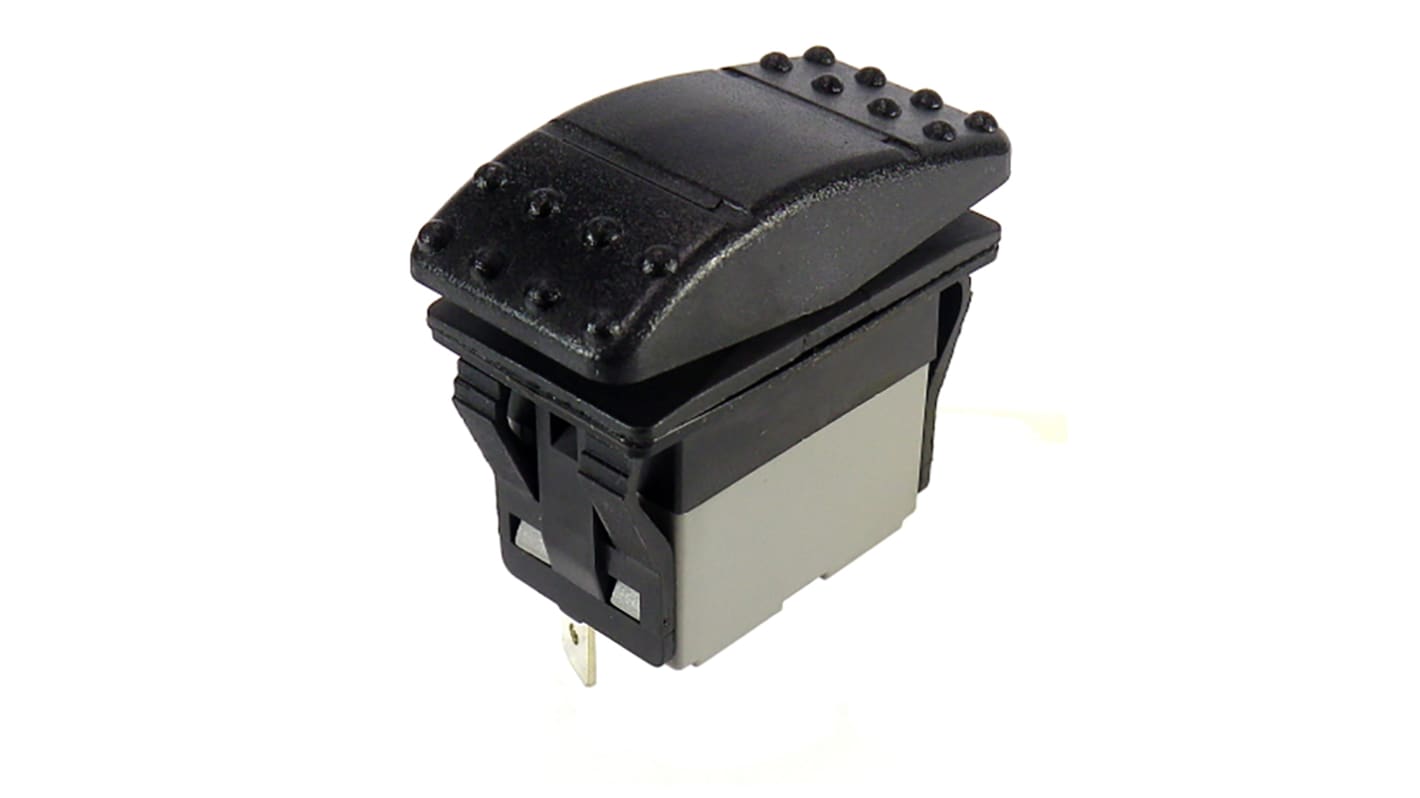

RS PRO SPDT, (On)-Off-(On) Rocker Switch Panel Mount

Name: RS PRO SPDT, (On)-Off-(On) Rocker Switch Panel Mount
Brand: RS PRO
SKU: 174-8334
Price: 72.62 MYR
Availability: InStock

Bulk discount available

Price Each

MYR72.62

108 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

Attribute	Value
Contact Configuration	SPDT
Switch Operation	(On)-Off-(On)
Panel Cut Out Width	37mm
Panel Cut Out Height	21.1mm
Contact Current Rating	16 A @ 125 → 250 V ac, 16 A @ 30 V dc, 20 A @ 125 → 250 V ac
Illuminated	No
Actuator Colour	Black
Mounting Type	Panel Mount
IP Rating	IP67
Terminal Type	Quick Connect
Actuator Shape	Rectangular
AC Voltage Rating	125 → 250V
Panel Cut Out Size	21.1 x 37mm
DC Voltage Rating	30V
Contact Resistance	20mΩ
Operating Temperature Range	-20 → +85°C
Minimum Operating Temperature	-20°C
Case Material	Polyamide
Maximum Operating Temperature	+85°C
Contact Material	Copper
