Select all	Attribute	Value
	Brand	TE Connectivity
	Contact Configuration	DPDT
	Switch Operation	(On)-Off-(On)
	Panel Cut Out Width	12.7mm
	Panel Cut Out Height	15.72mm
	Contact Current Rating	5 A
	Illuminated	No
	Actuator Colour	Black
	Mounting Type	Panel Mount
	Terminal Type	Wire Lug
	DC Voltage Rating	28V
	AC Voltage Rating	125 V, 250V
	Panel Cut Out Size	15.72 x 12.7mm
	Minimum Operating Temperature	-30°C
	Operating Temperature Range	-30 → +85°C
	Mechanical Life	400000Operations
	Contact Material	Silver
	Maximum Operating Temperature	+85°C
	Contact Resistance	10mΩ
	Case Material	Thermoplastic

	Select all
	Brand TE Connectivity
	Contact Configuration DPDT
	Switch Operation (On)-Off-(On)
	Panel Cut Out Width 12.7mm
	Panel Cut Out Height 15.72mm
	Contact Current Rating 5 A
	Illuminated No
	Actuator Colour Black
	Mounting Type Panel Mount
	Terminal Type Wire Lug
	DC Voltage Rating 28V
	AC Voltage Rating 125 V, 250V
	Panel Cut Out Size 15.72 x 12.7mm
	Minimum Operating Temperature -30°C
	Operating Temperature Range -30 → +85°C
	Mechanical Life 400000Operations
	Contact Material Silver
	Maximum Operating Temperature +85°C
	Contact Resistance 10mΩ
	Case Material Thermoplastic

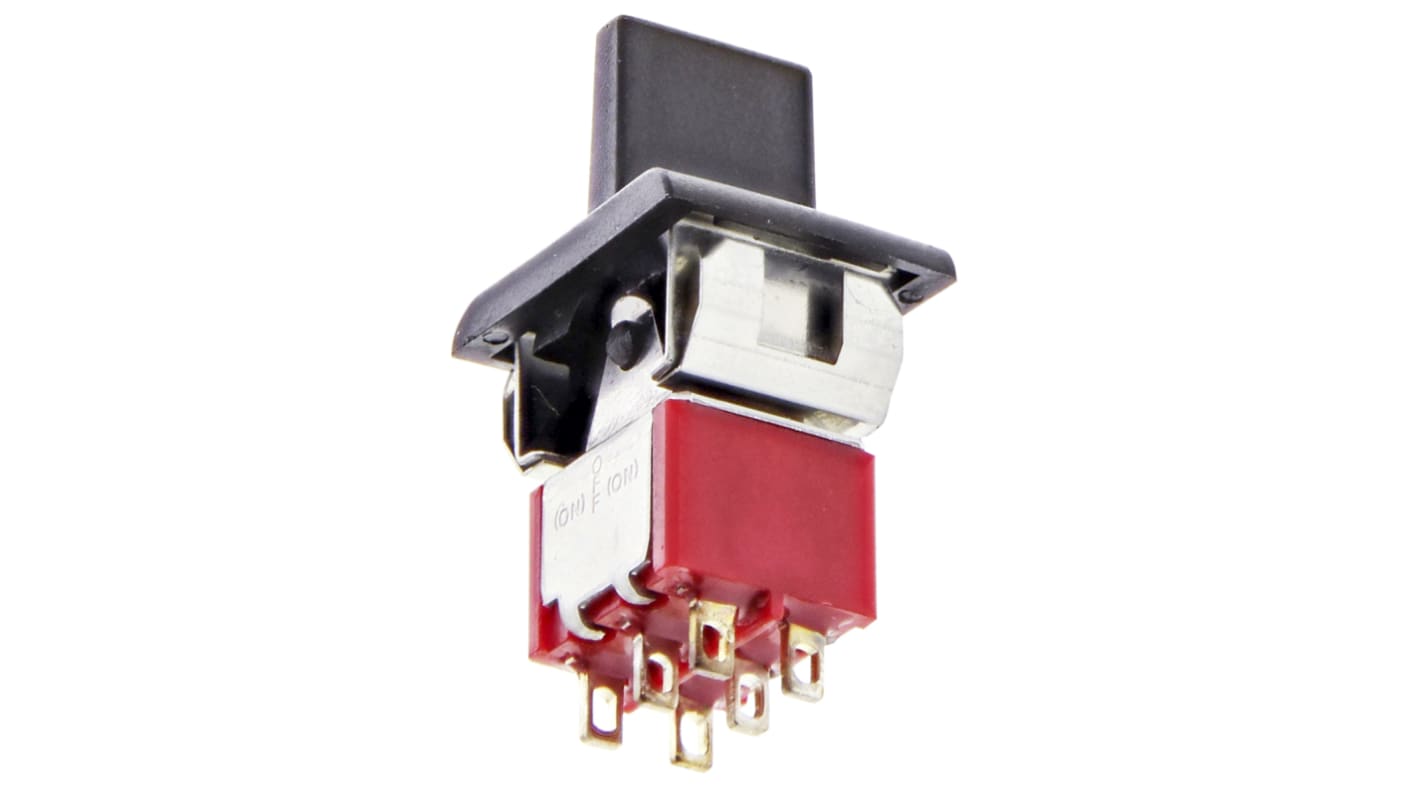

TE Connectivity DPDT, (On)-Off-(On) Rocker Switch Panel Mount

FREE delivery for orders over MYR500.00

Gemini A Series

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
