Units	Per Unit
1 - 1	MYR29.87
2 - 4	MYR29.24
5 - 9	MYR28.35
10 +	MYR27.65

Select all	Attribute	Value
	Brand	TE Connectivity
	Contact Configuration	Double Pole Double Throw (DPDT)
	Switch Operation	On-Off-On
	Panel Cut Out Width	12.7mm
	Panel Cut Out Height	15.72mm
	Contact Current Rating	5 A @ 28 V dc
	Illuminated	No
	Actuator Colour	Black
	Mounting Type	Panel Mount
	Terminal Type	Wire Lug
	Panel Cut Out Size	15.72 x 12.7mm
	AC Voltage Rating	120 V, 250V
	Actuator Shape	Rectangular
	Maximum Operating Temperature	+85°C
	Contact Resistance	10mΩ
	Operating Temperature Range	-30 → +85°C
	Mechanical Life	400000Operations
	Contact Material	Silver
	Case Material	Thermoplastic
	Minimum Operating Temperature	-30°C

	Select all
	Brand TE Connectivity
	Contact Configuration Double Pole Double Throw (DPDT)
	Switch Operation On-Off-On
	Panel Cut Out Width 12.7mm
	Panel Cut Out Height 15.72mm
	Contact Current Rating 5 A @ 28 V dc
	Illuminated No
	Actuator Colour Black
	Mounting Type Panel Mount
	Terminal Type Wire Lug
	Panel Cut Out Size 15.72 x 12.7mm
	AC Voltage Rating 120 V, 250V
	Actuator Shape Rectangular
	Maximum Operating Temperature +85°C
	Contact Resistance 10mΩ
	Operating Temperature Range -30 → +85°C
	Mechanical Life 400000Operations
	Contact Material Silver
	Case Material Thermoplastic
	Minimum Operating Temperature -30°C

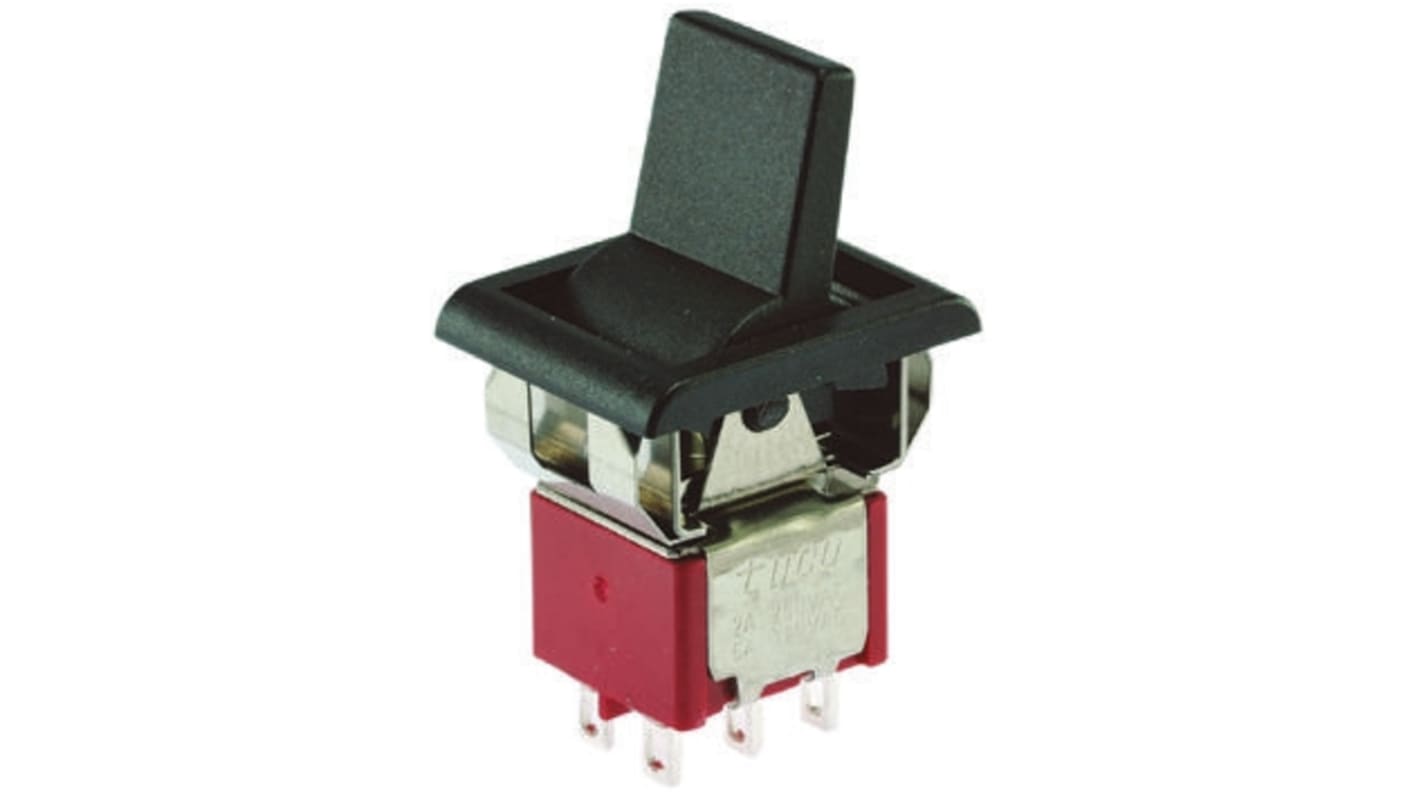

TE Connectivity DPDT, On-Off-On Rocker Switch Panel Mount

FREE delivery for orders over MYR500.00

Gemini A Series

For these production packs, non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
