TE Connectivity, SOLISTRAND Uninsulated Ring Terminal, M8 (5/16) Stud Size, 1mm² to 2.6mm² Wire Size
- RS Stock No.:
- 825-2221
- Mfr. Part No.:
- 35776
- Manufacturer:
- TE Connectivity

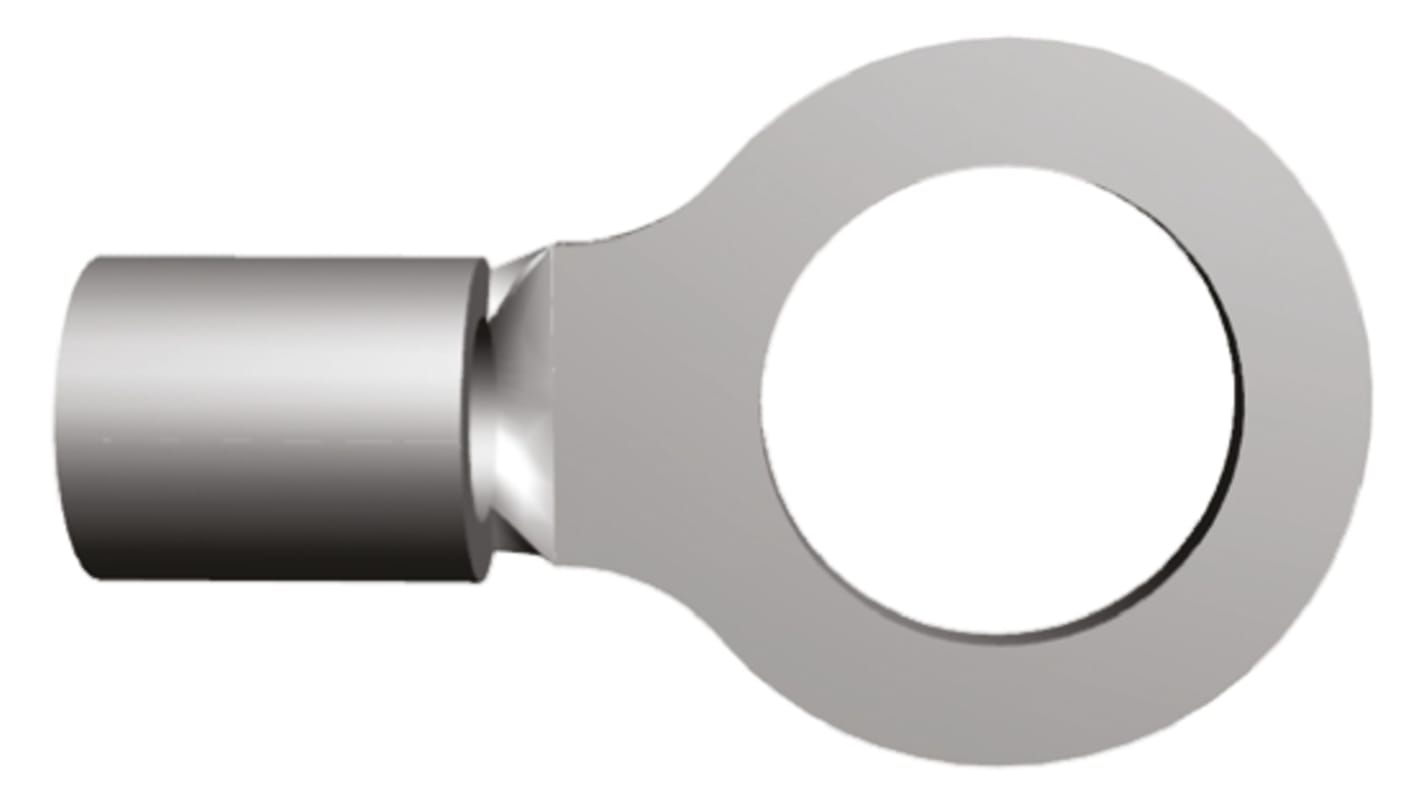

This image is representative of the product range
1 / 2
Bulk discount available
Subtotal (1 pack of 50 units)**
MYR147.50
1200 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit | Per Pack** |
---|---|---|
50 - 200 | MYR2.95 | MYR147.50 |
250 + | MYR2.862 | MYR143.10 |
**price indicative
- RS Stock No.:
- 825-2221
- Mfr. Part No.:
- 35776
- Manufacturer:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Series | SOLISTRAND | |
Insulation | Uninsulated | |
Outer Ring Diameter | 12.7mm | |
Inner Ring Diameter | 8.33mm | |
Maximum Wire Size mm² | 2.6mm² | |
Minimum Wire Size mm² | 1mm² | |
Maximum Wire Size AWG | 14AWG | |
Minimum Wire Size AWG | 16AWG | |
Stud Size | M8 (5/16) | |
Contact Material | Copper | |
Contact Plating | Tin | |
Thickness | 1.22mm | |
Overall Length | 21.97mm | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Series SOLISTRAND | ||
Insulation Uninsulated | ||
Outer Ring Diameter 12.7mm | ||
Inner Ring Diameter 8.33mm | ||
Maximum Wire Size mm² 2.6mm² | ||
Minimum Wire Size mm² 1mm² | ||
Maximum Wire Size AWG 14AWG | ||
Minimum Wire Size AWG 16AWG | ||
Stud Size M8 (5/16) | ||
Contact Material Copper | ||
Contact Plating Tin | ||
Thickness 1.22mm | ||
Overall Length 21.97mm | ||
