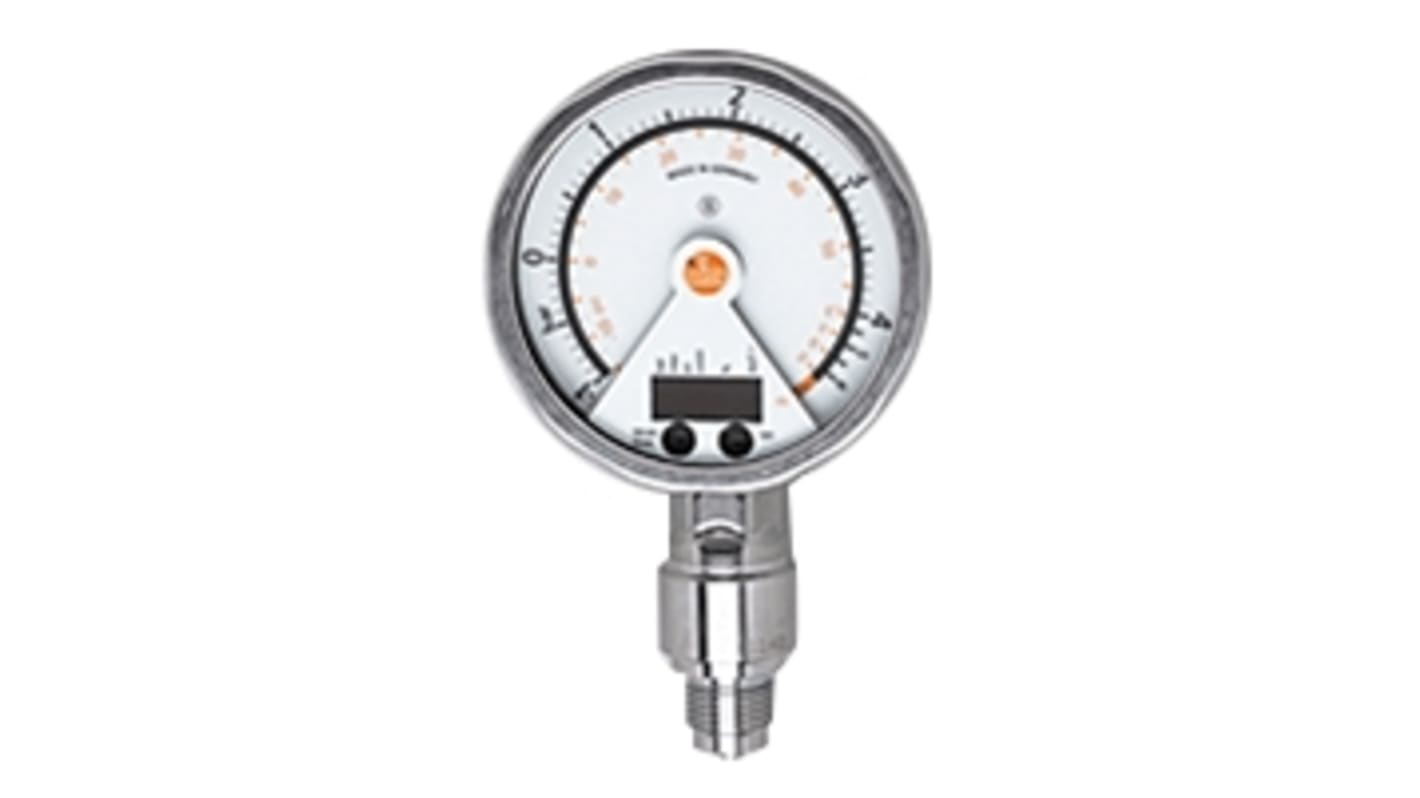

ifm electronic Pressure Sensor, -1bar Min, 4bar Max, Analogue + PNP-NO/NC Programmable Output, Relative Reading
- RS Stock No.:
- 835-3866
- Mfr. Part No.:
- PG2455
- Manufacturer:
- ifm electronic
Subtotal (1 unit)**
MYR2,803.65
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
|---|---|
| 1 + | MYR2,803.65 |
**price indicative
- RS Stock No.:
- 835-3866
- Mfr. Part No.:
- PG2455
- Manufacturer:
- ifm electronic
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Pressure Reading Type | Relative | |
| Minimum Pressure Reading | -1bar | |
| Maximum Pressure Reading | 4bar | |
| Accuracy | ±0.5 % | |
| Output Type | Analogue + PNP-NO/NC Programmable | |
| Media Measured | Gas, Liquid | |
| Process Connection | G1/2 | |
| Electrical Connection | M12 Connector | |
| Analogue Output | 4 → 20 mA | |
| Response Time | 9 ms, 28 ms | |
| Maximum Current | 250 mA | |
| Supply Voltage | 18 → 32 V dc | |
| Housing Material | Stainless Steel | |
| IP Rating | IP67, IP69K | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +80°C | |
Select all | ||
|---|---|---|
Brand ifm electronic | ||
Pressure Reading Type Relative | ||
Minimum Pressure Reading -1bar | ||
Maximum Pressure Reading 4bar | ||
Accuracy ±0.5 % | ||
Output Type Analogue + PNP-NO/NC Programmable | ||
Media Measured Gas, Liquid | ||
Process Connection G1/2 | ||
Electrical Connection M12 Connector | ||
Analogue Output 4 → 20 mA | ||
Response Time 9 ms, 28 ms | ||
Maximum Current 250 mA | ||
Supply Voltage 18 → 32 V dc | ||
Housing Material Stainless Steel | ||
IP Rating IP67, IP69K | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
