Select all	Attribute	Value
	Brand	ifm electronic
	Pressure Reading Type	Relative
	Minimum Pressure Reading	-1bar
	Maximum Pressure Reading	1bar
	Accuracy	<±0.4 %
	Output Type	Analogue + PNP-NO/NC Programmable
	Media Measured	Fluid
	Process Connection	G1/4
	Electrical Connection	M12 Connector
	Analogue Output	0 → 10 V, 4 → 20 mA
	Communication Protocol	IO-LINK
	Response Time	<1.5 (Minimum Switching Output) ms, <3 (Maximum Analogue Output) ms
	Maximum Current	250 mA
	Supply Voltage	18 → 30 V dc
	Interface	IO-Link
	Housing Material	PBT GF20, PBT+PC GF30, PC, Stainless Steel
	Minimum Operating Temperature	-25°C
	IP Rating	IP65, IP67
	Maximum Operating Temperature	+80°C

	Select all
	Brand ifm electronic
	Pressure Reading Type Relative
	Minimum Pressure Reading -1bar
	Maximum Pressure Reading 1bar
	Accuracy <±0.4 %
	Output Type Analogue + PNP-NO/NC Programmable
	Media Measured Fluid
	Process Connection G1/4
	Electrical Connection M12 Connector
	Analogue Output 0 → 10 V, 4 → 20 mA
	Communication Protocol IO-LINK
	Response Time <1.5 (Minimum Switching Output) ms, <3 (Maximum Analogue Output) ms
	Maximum Current 250 mA
	Supply Voltage 18 → 30 V dc
	Interface IO-Link
	Housing Material PBT GF20, PBT+PC GF30, PC, Stainless Steel
	Minimum Operating Temperature -25°C
	IP Rating IP65, IP67
	Maximum Operating Temperature +80°C

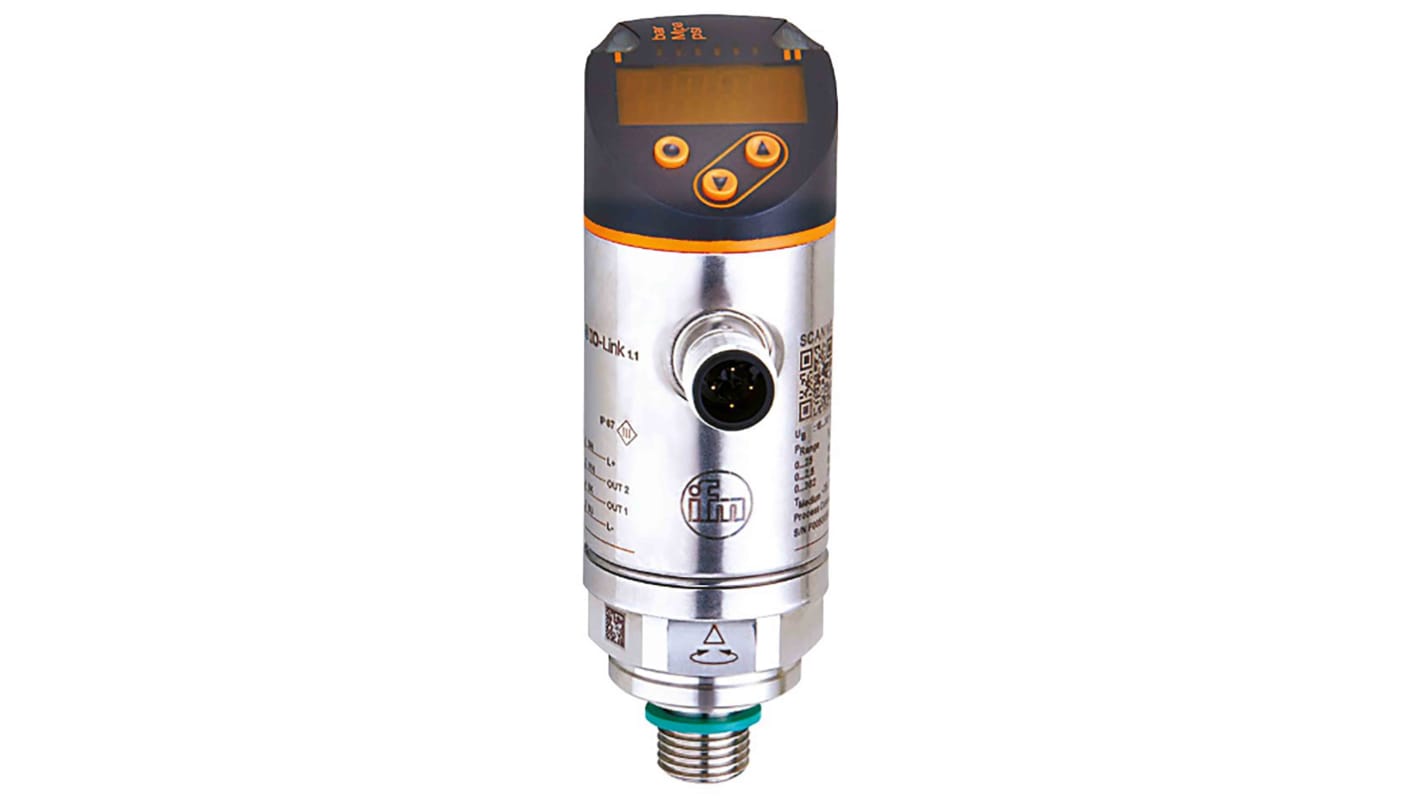

ifm electronic Pressure Sensor, -1bar Min, 1bar Max, Analogue + PNP-NO/NC Programmable Output, Relative Reading

FREE delivery for orders over MYR500.00

ifm electronic PN2xxx Series Pressure Sensors
