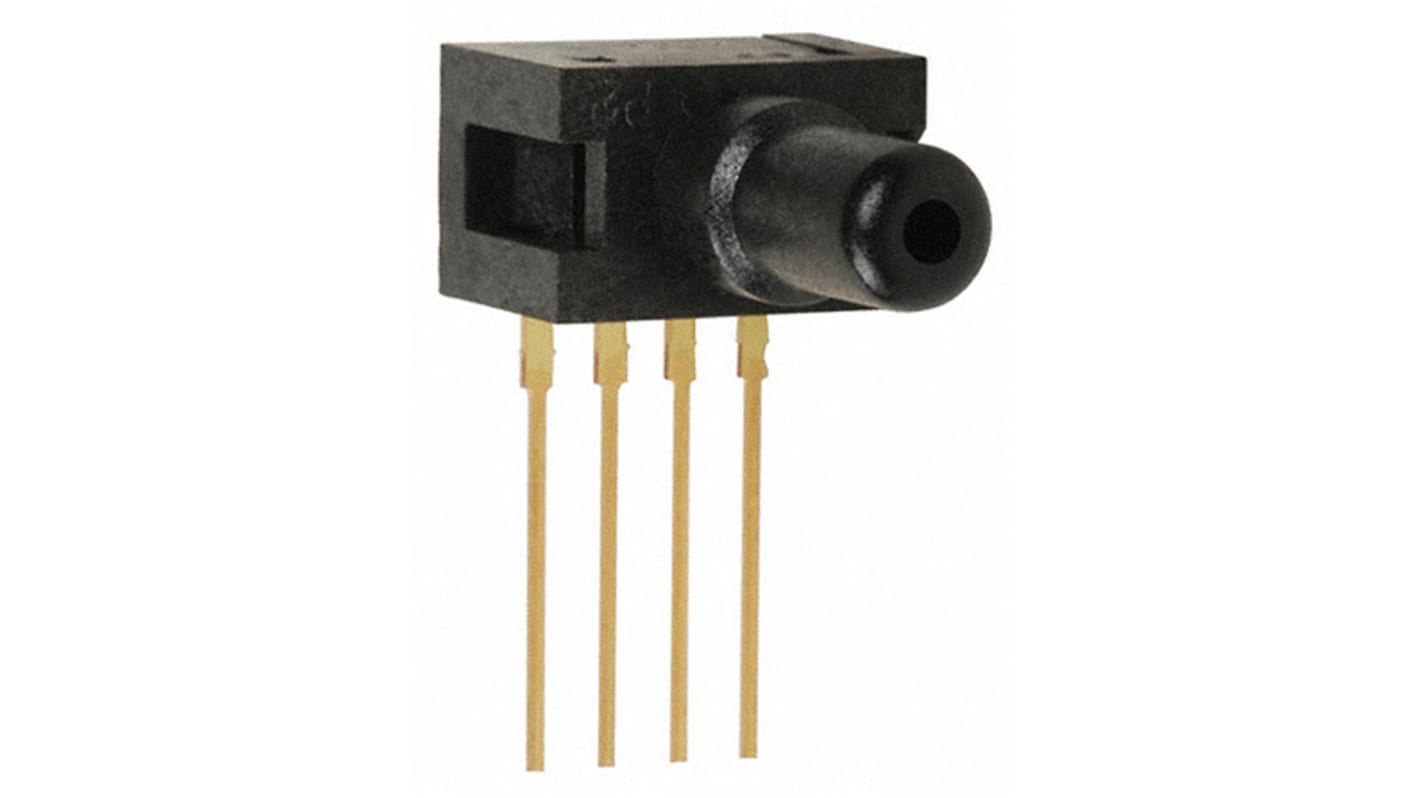

Gauge Pressure Sensor 0-30 psi 5V SMT-4

  • RS Stock No. 169-7657
  • Mfr. Part No. 26PCDFA6G
  • Manufacturer Honeywell
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Honeywell 24PC/26PC Series Low Pressure Sensors

These miniature Surface Mount Technology (SMT) Low Pressure Sensors are small, cost effective devices intended for use with wet/wet differential sensing. Based on the long established reliability and accuracy of the single in-line package, the SMT version’s smaller configuration reduces the footprint area on the printed circuit board thereby reducing overall PCB size and cost. The sensor is capable of being board-mounted with other common SMT devices, helping to eliminate secondary board mounting operations and improving manufacturing productivity.

The 24PC/26PC sensors feature proven sensing technology that uses a specialized piezo-resistive micro-machined sensing element to offer high performance, reliability, and accuracy. Both sensor series are unamplified but the 26PC series are temperature compensated. The sensors can be used with a wide variety of wet and dry media that are compatible with polyphthalamide (PPA) plastics and media seals and they are designed to measure pressures from ±1 to ±15 psi over an operating temperature range of -40 to 85 ºC.

• Compact SMT mounting package
• Wet/Wet capability (i.e. liquids on both ports)
• 24PC Series: Uncompensated/Unamplified
• 26PC Series: Compensated/Unamplified
• RoHS compliant
• Designed and manufactured according to ISO 9001 standards

Pressure Sensors, Honeywell

Specifications
Attribute Value
Pressure Reading Type Gauge
Minimum Pressure Reading 0psi
Maximum Pressure Reading 30psi
Accuracy ±0.25 %
Output Type Unamplified
Media Measured Nitrogen Gas, Oxygen
Analogue Output 0 → 100 mV
Electrical Connection 4-Pin Connector
Response Time 1 ms
Supply Voltage 2.5 → 16 V dc
Mounting Type Through Hole
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C
25 In Global stock for delivery within 4 - 6 working days
Price Each (In a Box of 25)
MYR 148.266
units
Per unit
Per Box*
25 +
MYR148.266
MYR3,706.65
*price indicative
