Select all	Attribute	Value
	Brand	Hongfa Europe GMBH
	Coil Voltage	24V dc
	Contact Configuration	SPST
	Mounting Type	PCB Mount
	Switching Current	16A
	Number of Poles	1
	Latching	No
	Terminal Type	PCB Pin
	Maximum Switching Voltage AC	277V
	Maximum Switching Voltage DC	30V dc
	Maximum Switching Current DC	20 A
	Maximum Switching Current AC	20 A
	Length	29mm
	Coil Resistance	1100Ω
	Coil Power	720mW
	Minimum Operating Temperature	-40°C
	Series	HF14FW
	Height	26.5mm
	Maximum Operating Temperature	+85°C
	Life	1 x 10^7 cycles
	Isolation Coil To Contact	4kV
	Depth	13mm
	Contact Material	Silver Alloy
	Maximum Switching Power AC	5.54 kVA
	Maximum Switching Power DC	480 W

	Select all
	Brand Hongfa Europe GMBH
	Coil Voltage 24V dc
	Contact Configuration SPST
	Mounting Type PCB Mount
	Switching Current 16A
	Number of Poles 1
	Latching No
	Terminal Type PCB Pin
	Maximum Switching Voltage AC 277V
	Maximum Switching Voltage DC 30V dc
	Maximum Switching Current DC 20 A
	Maximum Switching Current AC 20 A
	Length 29mm
	Coil Resistance 1100Ω
	Coil Power 720mW
	Minimum Operating Temperature -40°C
	Series HF14FW
	Height 26.5mm
	Maximum Operating Temperature +85°C
	Life 1 x 10^7 cycles
	Isolation Coil To Contact 4kV
	Depth 13mm
	Contact Material Silver Alloy
	Maximum Switching Power AC 5.54 kVA
	Maximum Switching Power DC 480 W

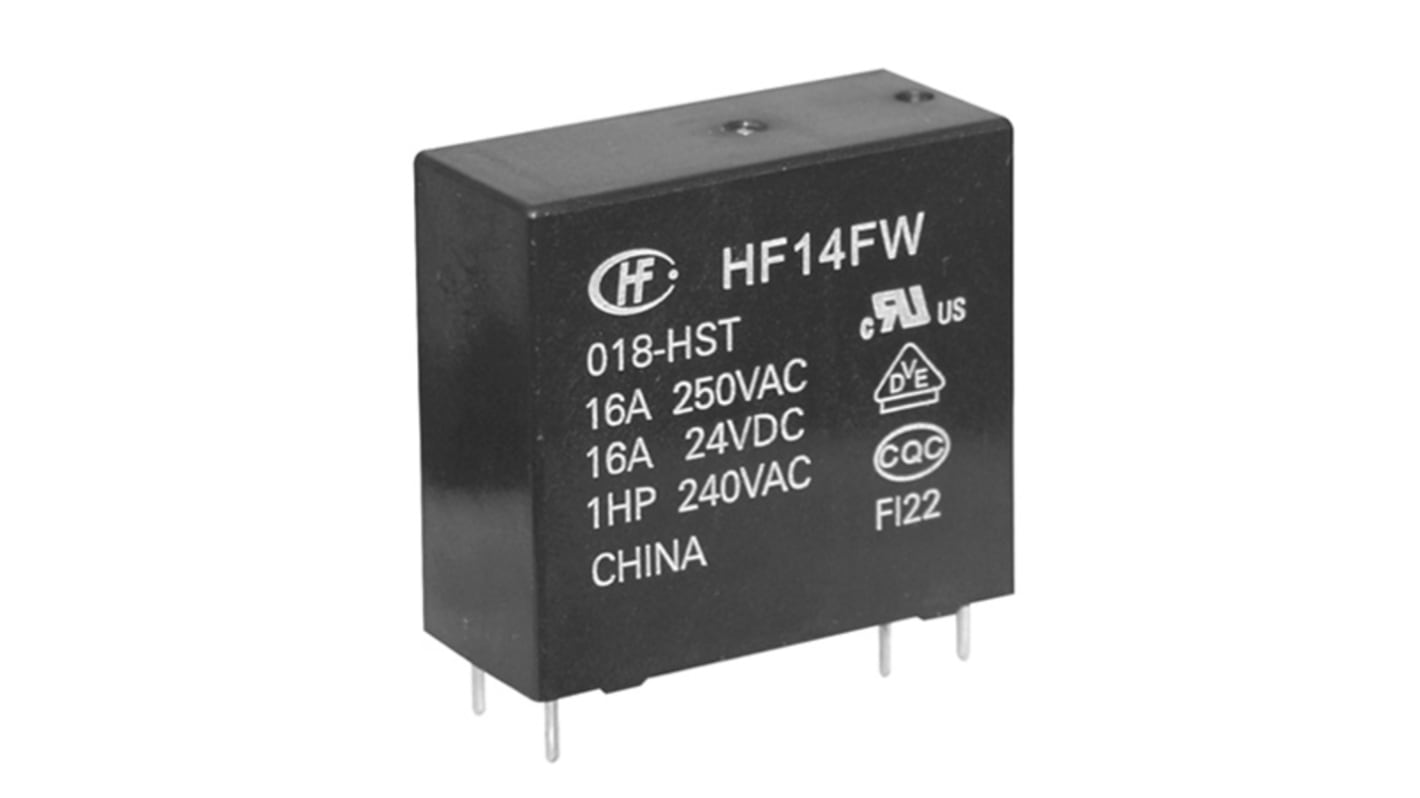

Hongfa Europe GMBH PCB Mount Power Relay, 24V dc Coil, 16A Switching Current, SPST

FREE delivery for orders over MYR500.00

Hongfa SPNO Non-Latching Relay

Features and Benefits

Applications

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
