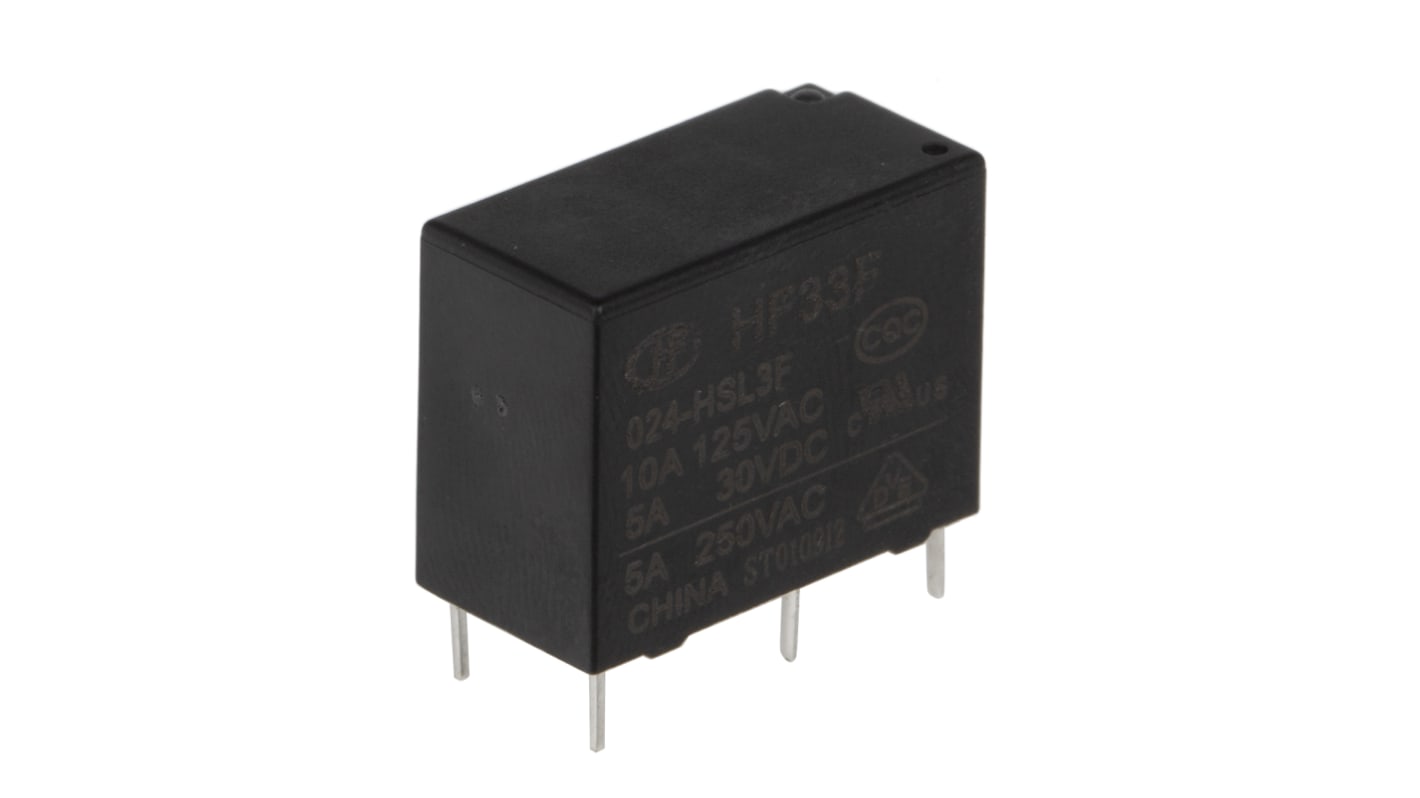

    Hongfa Europe GMBH PCB Mount Power Relay, 24V dc Coil, 10A Switching Current, SPST

    View all Power Relays
    Bulk discount available

    Subtotal (1 pack of 5 units)**

    MYR28.29

    Add to Basket
    Select or type quantity
    165 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Real time qty checker
    Units
    Per Unit
    Per Pack**
    5 - 20MYR5.658MYR28.29
    25 - 45MYR5.54MYR27.70
    50 +MYR5.372MYR26.86

    **price indicative

    RS Stock No.:
    176-2899
    Mfr. Part No.:
    HF33F/024-HSL3F
    Manufacturer:
    Hongfa Europe GMBH
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    Hongfa Europe GMBH

    Coil Voltage

    24V dc

    Contact Configuration

    SPST

    Mounting Type

    PCB Mount

    Switching Current

    10A

    Number of Poles

    1

    Latching

    No

    Terminal Type

    PCB Pin

    Maximum Switching Voltage AC

    250V

    Maximum Switching Voltage DC

    30V dc

    Maximum Switching Current DC

    10 A

    Maximum Switching Current AC

    10 A

    Length

    20.5mm

    Coil Resistance

    1280Ω

    Coil Power

    200mW

    Maximum Operating Temperature

    +70°C

    Series

    HF33F

    Minimum Operating Temperature

    -40°C

    Standards Met

    CQC File No:CQC09002028694, cULus File No:E134517, VDE File No:125661

    Height

    15.3mm

    Depth

    10.2mm

    Isolation Coil To Contact

    4kV ac

    Life

    5 x 10^6 cycles

    Contact Material

    Silver Alloy

    Maximum Switching Power DC

    150 W

    Maximum Switching Power AC

    1.25 kVA

    Dimensions

    20.5 x 10.2 x 15.3mm
