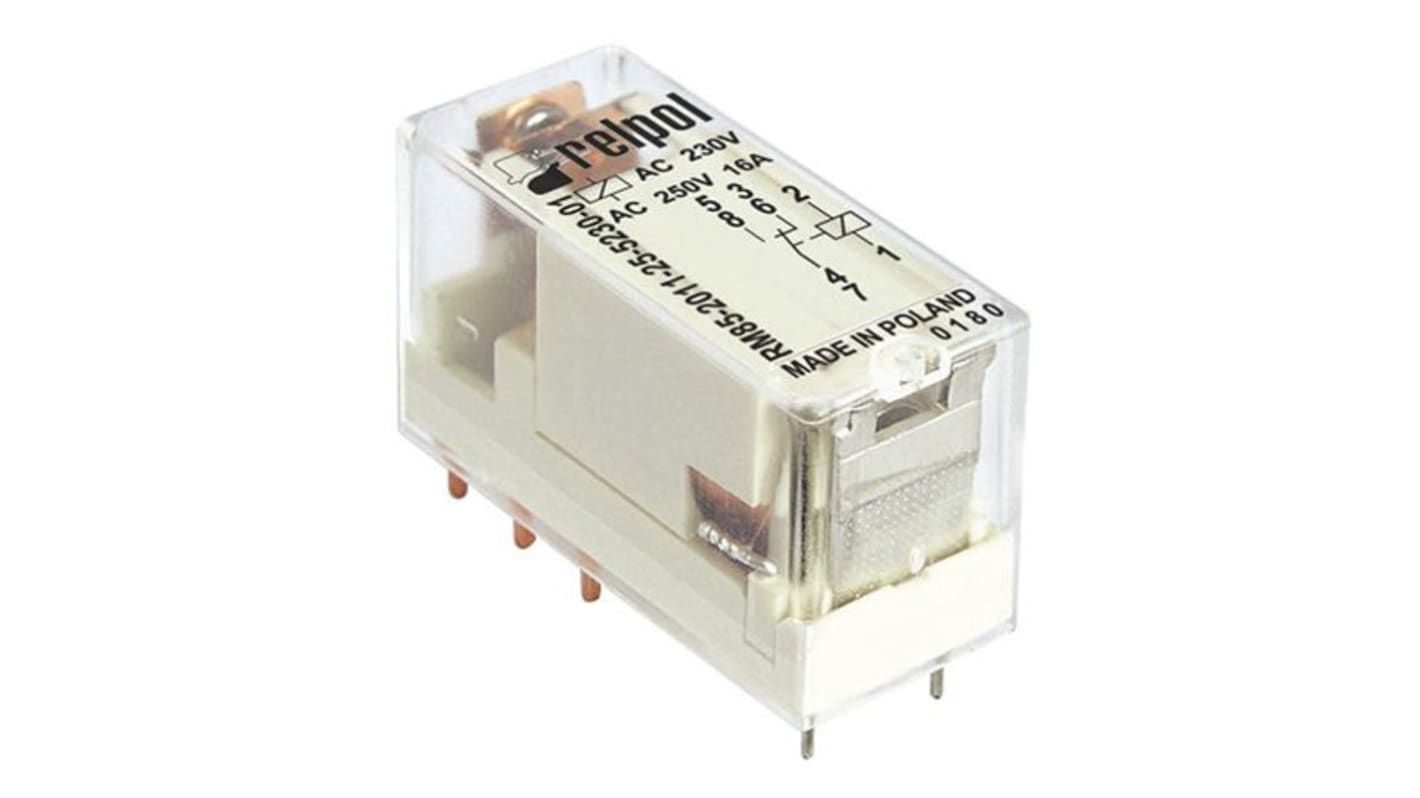

    Relpol PCB Mount Power Relay, 9V dc Coil, 16A Switching Current

    View all Power Relays

    Subtotal (1 unit)**

    MYR35.13

    Add to Basket
    Select or type quantity
    11 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Real time qty checker
    Units
    Per Unit
    1 +MYR35.13

    **price indicative

    RS Stock No.:
    134-8381
    Mfr. Part No.:
    RM85-2011-35-1009
    Manufacturer:
    Relpol
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    Relpol

    Coil Voltage

    9V dc

    Mounting Type

    PCB Mount

    Switching Current

    16A

    Number of Poles

    1

    Latching

    No

    Terminal Type

    PCB Pin

    Maximum Switching Voltage AC

    440V

    Maximum Switching Voltage DC

    24V dc

    Length

    29mm

    Coil Resistance

    200Ω

    Coil Power

    400 → 480mW

    Maximum Operating Temperature

    +85°C

    Life

    >30000000 (Mechanical) cycles, >70000 (Electrical) cycles

    Isolation Coil To Contact

    5kV ac

    Height

    15.7mm

    Minimum Operating Temperature

    -40°C

    Standards Met

    CCC, CSA, CULus, EAC, VDE

    Depth

    12.7mm

    Contact Material

    Silver Alloy

    Maximum Switching Power AC

    4 kVA
