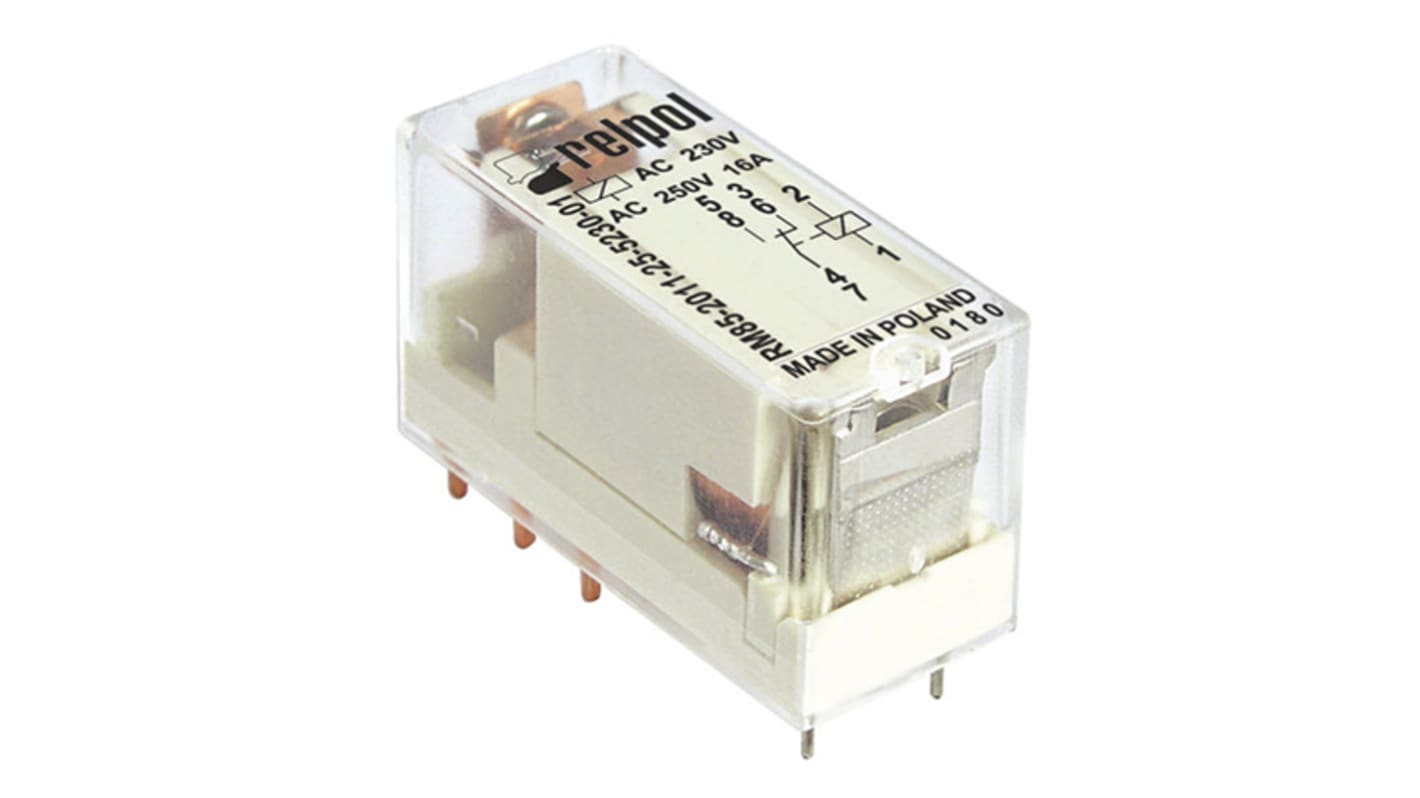

    Relpol PCB Mount Power Relay, 230V ac Coil, 16A Switching Current, SPDT

    Subtotal (1 unit)**

    MYR57.64

    Add to Basket
    Select or type quantity
    400 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Real time qty checker
    Units
    Per Unit
    1 +MYR57.64

    **price indicative

    RS Stock No.:
    123-2089
    Mfr. Part No.:
    RM85-2011-35-5230
    Manufacturer:
    Relpol
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    Relpol

    Coil Voltage

    230V ac

    Contact Configuration

    SPDT

    Mounting Type

    PCB Mount

    Switching Current

    16A

    Number of Poles

    1

    Latching

    No

    Terminal Type

    Plug In

    Maximum Switching Voltage AC

    440V

    Maximum Switching Voltage DC

    24V dc

    Length

    29mm

    Coil Resistance

    38500Ω

    Coil Power

    750mW

    Life

    >30000000 (Mechanical) cycles, >70000 (Electrical) cycles

    Isolation Coil To Contact

    5kV ac

    Maximum Operating Temperature

    +70°C

    Standards Met

    CSA, cULus, EAC, PN-EN 60335-1, VDE

    Contact Material

    Silver Alloy

    Minimum Operating Temperature

    -40°C

    Depth

    12.7mm

    Series

    RM85

    Height

    15.7mm

    Maximum Switching Power AC

    4 kVA
