Units	Per Unit
1 - 24	MYR534.91
25 +	MYR523.67

Select all	Attribute	Value
	Brand	Schurter
	Maximum Current Rating	20A
	Maximum Voltage Rating	250 V ac
	Mounting Type	Flange Mount
	Termination Style	Screw
	Number of Phases	1
	Number of Stages	Single Stage
	Series	FMAB
	Operating Frequency	60Hz
	Length	137mm
	Depth	106mm
	Capacitance	1 nF, 2.2 nF, 10nF
	Height	58mm
	Inductance	3.5 x 2 mH
	Dimensions	137 x 106 x 58mm
	Minimum Operating Temperature	-25°C
	Leakage Current	5.2 mA
	Maximum Operating Temperature	+100°C
	Resistance	1MΩ
	Power Loss	4.6W

	Select all
	Brand Schurter
	Maximum Current Rating 20A
	Maximum Voltage Rating 250 V ac
	Mounting Type Flange Mount
	Termination Style Screw
	Number of Phases 1
	Number of Stages Single Stage
	Series FMAB
	Operating Frequency 60Hz
	Length 137mm
	Depth 106mm
	Capacitance 1 nF, 2.2 nF, 10nF
	Height 58mm
	Inductance 3.5 x 2 mH
	Dimensions 137 x 106 x 58mm
	Minimum Operating Temperature -25°C
	Leakage Current 5.2 mA
	Maximum Operating Temperature +100°C
	Resistance 1MΩ
	Power Loss 4.6W

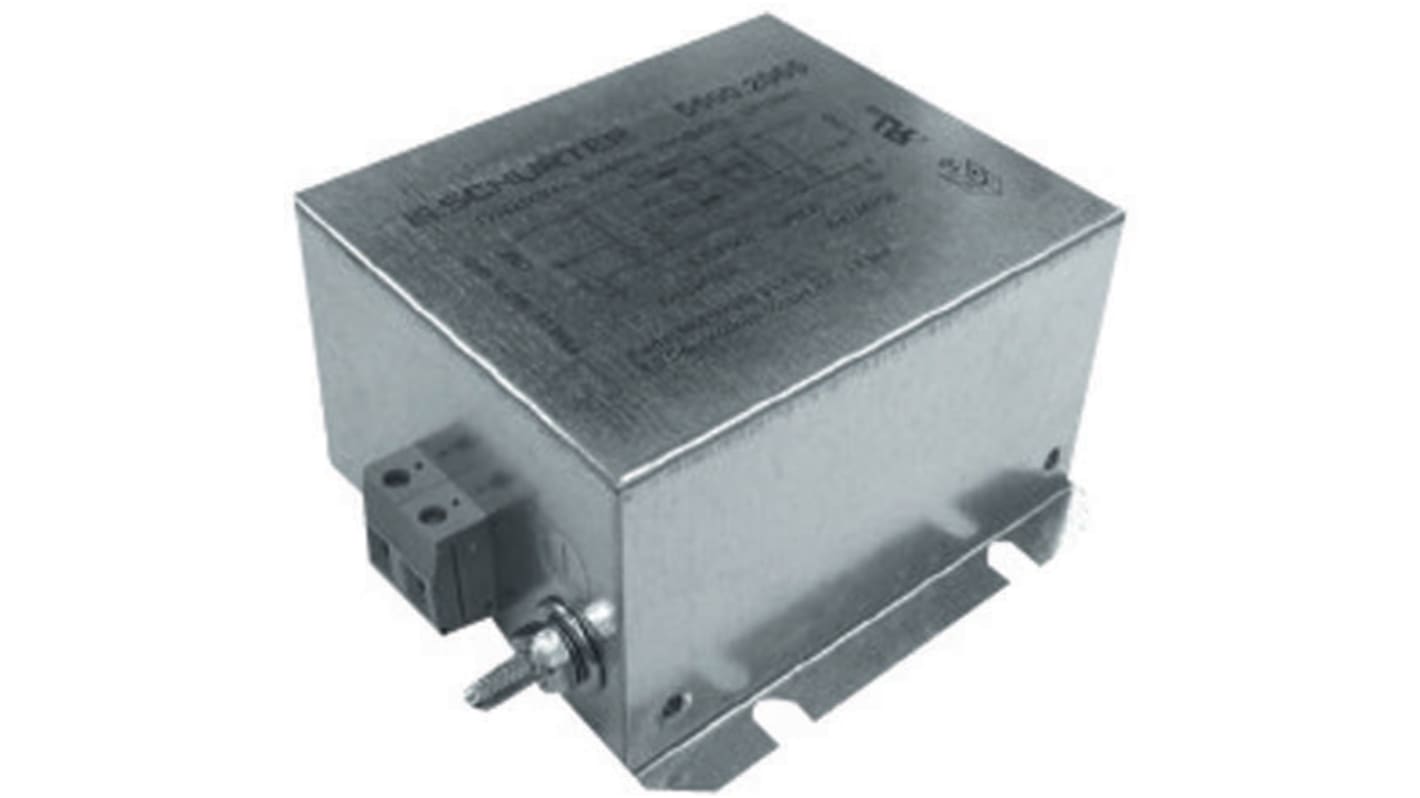

Schurter, FMAB 20A 250 V ac 60Hz, Flange Mount EMC Filter, Screw, Single Phase

FREE delivery for orders over MYR500.00

Mains filters for installation on FMAB chassis

Approvals

Related links
