RS PRO Pure Sine Wave 1000W Power Inverter, 24V Input, 230V Output
- RS Stock No.:
- 179-3331
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
MYR1,507.34
FREE delivery for orders over RM 500.00
In Stock
- 15 unit(s) ready to ship from another location
- Plus 1 unit(s) shipping from 21 January 2026
- Plus 1 unit(s) shipping from 09 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | MYR1,507.34 |
| 10 - 49 | MYR1,470.41 |
| 50 + | MYR1,210.17 |
*price indicative
- RS Stock No.:
- 179-3331
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Input Voltage | 24V | |
| Output Voltage | 230V | |
| Output Power Continuous | 1000W | |
| Output Power Intermittent | 1100W | |
| Output Power Waveform | Pure Sine Wave | |
| Output Connection Type | Universal | |
| Efficiency | >90% | |
| MTBF | 50000h | |
| Output Current | 8.7A | |
| Length | 302.2mm | |
| Width | 150mm | |
| Depth | 97.4mm | |
| Weight | 3kg | |
| Minimum Temperature | -20°C | |
| Maximum Temperature | +50°C | |
| Output Frequency Range | 50Hz | |
| Mounting Type | Chassis Mount | |
| Output Electrical Phase | 1 | |
| Number of Output Connections | 1 | |
| Inverter Directionality | DC to AC | |
| Standards Met | CE, ECE R10.05:2014, ECE R10.05:2014EN 61000-6-3, EN 60950-1, EN 61000-6-1, EN 61000-6-3 | |
| Maximum Input Current | 83.3A | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Input Voltage 24V | ||
Output Voltage 230V | ||
Output Power Continuous 1000W | ||
Output Power Intermittent 1100W | ||
Output Power Waveform Pure Sine Wave | ||
Output Connection Type Universal | ||
Efficiency >90% | ||
MTBF 50000h | ||
Output Current 8.7A | ||
Length 302.2mm | ||
Width 150mm | ||
Depth 97.4mm | ||
Weight 3kg | ||
Minimum Temperature -20°C | ||
Maximum Temperature +50°C | ||
Output Frequency Range 50Hz | ||
Mounting Type Chassis Mount | ||
Output Electrical Phase 1 | ||
Number of Output Connections 1 | ||
Inverter Directionality DC to AC | ||
Standards Met CE, ECE R10.05:2014, ECE R10.05:2014EN 61000-6-3, EN 60950-1, EN 61000-6-1, EN 61000-6-3 | ||
Maximum Input Current 83.3A | ||
- COO (Country of Origin):
- CN

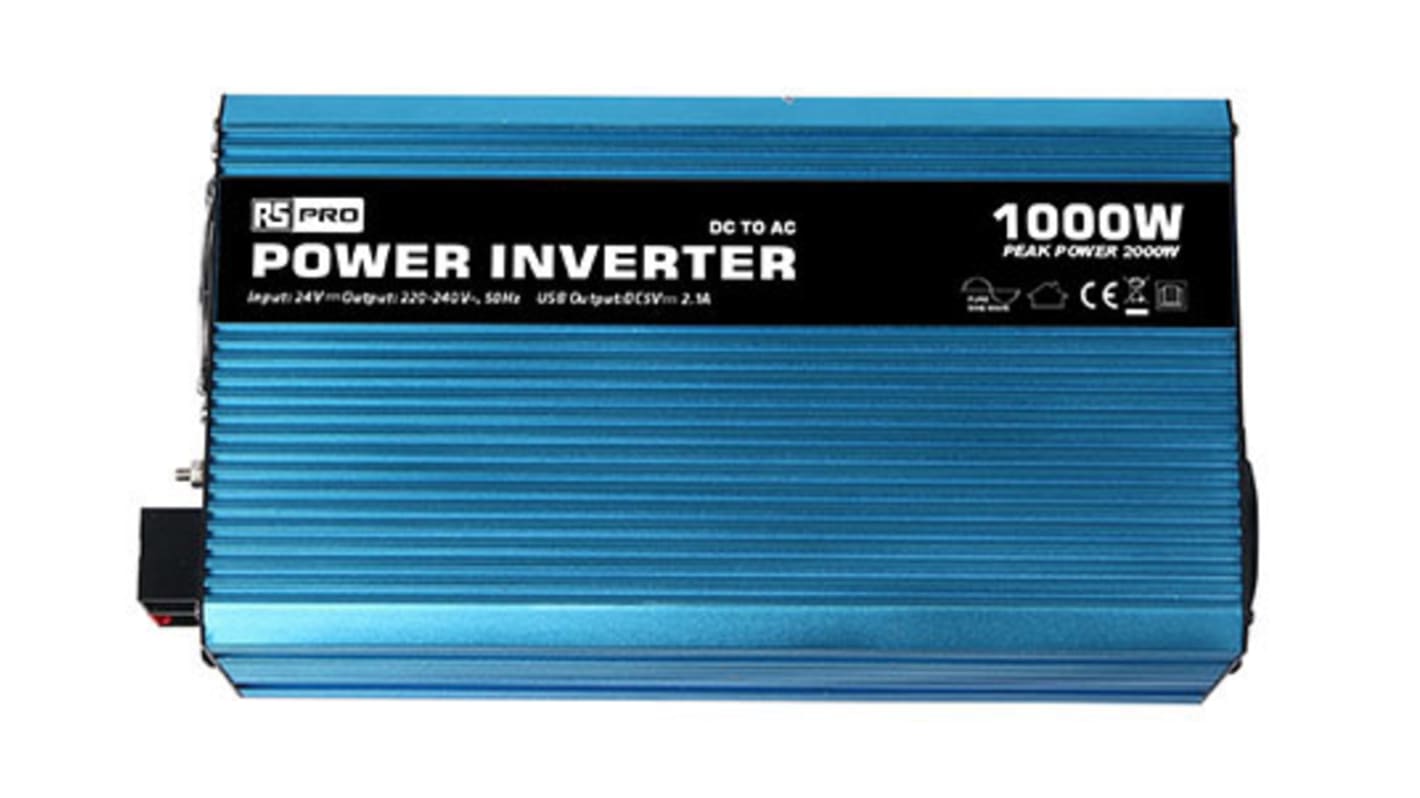

RS PRO 1000 W Fixed Installation DC-AC Power Inverter, 24 V/230 V
The RS PRO fixed installation DC to AC power inverter is the ideal gadget for charging appliances when all you have available is a car battery. It works on the principle that car batteries generate direct current (DC), which is incompatible with domestic appliances, as these run on alternating current (AC). Inverters are used to power devices on the road.
The transformer produces pure sine wave, which is a smoothly varying AC that works best with delicate electronics like smart devices. It has a soft-start mechanism to limit the inrush current, helping to prevent sudden stress on the mechanical parts.
This inverter is easy to fit onto a car battery thanks to its straightforward chassis mount and comes in a durable anodised aluminium case for good heat dissipation. Built to exacting manufacturing standards, it's protected from overheating, short-circuiting and overload.
The transformer produces pure sine wave, which is a smoothly varying AC that works best with delicate electronics like smart devices. It has a soft-start mechanism to limit the inrush current, helping to prevent sudden stress on the mechanical parts.
This inverter is easy to fit onto a car battery thanks to its straightforward chassis mount and comes in a durable anodised aluminium case for good heat dissipation. Built to exacting manufacturing standards, it's protected from overheating, short-circuiting and overload.
Features and Benefits
• DC-AC power inverter
• Chassis mounting
• Pure sine wave
• One output connection
• Single-phase electrical output
• Input voltage of 24 V
• Output voltage of 230 V
• Continuous power output of 1000 W
• Intermittent power output of 1100 W
• Surge power of 200 W
• Universal output connection type
• Efficiency rating over 90%
• Output current of 8.7 A
• Maximum input current of 83.3 A
• Mean time between failures of 50,000 h
• Length of 302.2 mm
• Width of 150 mm
• Depth of 97.4 mm
• Weight of 3 kg
• Operating temperature range of -20°C to +50°C
• Output frequency range of 50 Hz ±3
• Conforms to standards ECE R10.05:201 and EN 61000-6-3 on electromagnetic compatibility
• Meets EN 60950-1 on safe information technology equipment
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS (Restriction of Hazardous Substances) compliant
• Chassis mounting
• Pure sine wave
• One output connection
• Single-phase electrical output
• Input voltage of 24 V
• Output voltage of 230 V
• Continuous power output of 1000 W
• Intermittent power output of 1100 W
• Surge power of 200 W
• Universal output connection type
• Efficiency rating over 90%
• Output current of 8.7 A
• Maximum input current of 83.3 A
• Mean time between failures of 50,000 h
• Length of 302.2 mm
• Width of 150 mm
• Depth of 97.4 mm
• Weight of 3 kg
• Operating temperature range of -20°C to +50°C
• Output frequency range of 50 Hz ±3
• Conforms to standards ECE R10.05:201 and EN 61000-6-3 on electromagnetic compatibility
• Meets EN 60950-1 on safe information technology equipment
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS (Restriction of Hazardous Substances) compliant
