RS PRO Pure Sine Wave 600W Power Inverter, 24V Input, 230V Output
- RS Stock No.:
- 179-3328
- Manufacturer:
- RS PRO
Temporarily out of stock - back order for despatch 23/09/2024, delivery within 4 working days from despatch date
Added
Price Each
Was MYR955.09
You pay
MYR868.43
| Units | Per Unit |
| 1 - 9 | MYR868.43 |
| 10 - 49 | MYR850.18 |
| 50 + | MYR699.70 |
- RS Stock No.:
- 179-3328
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

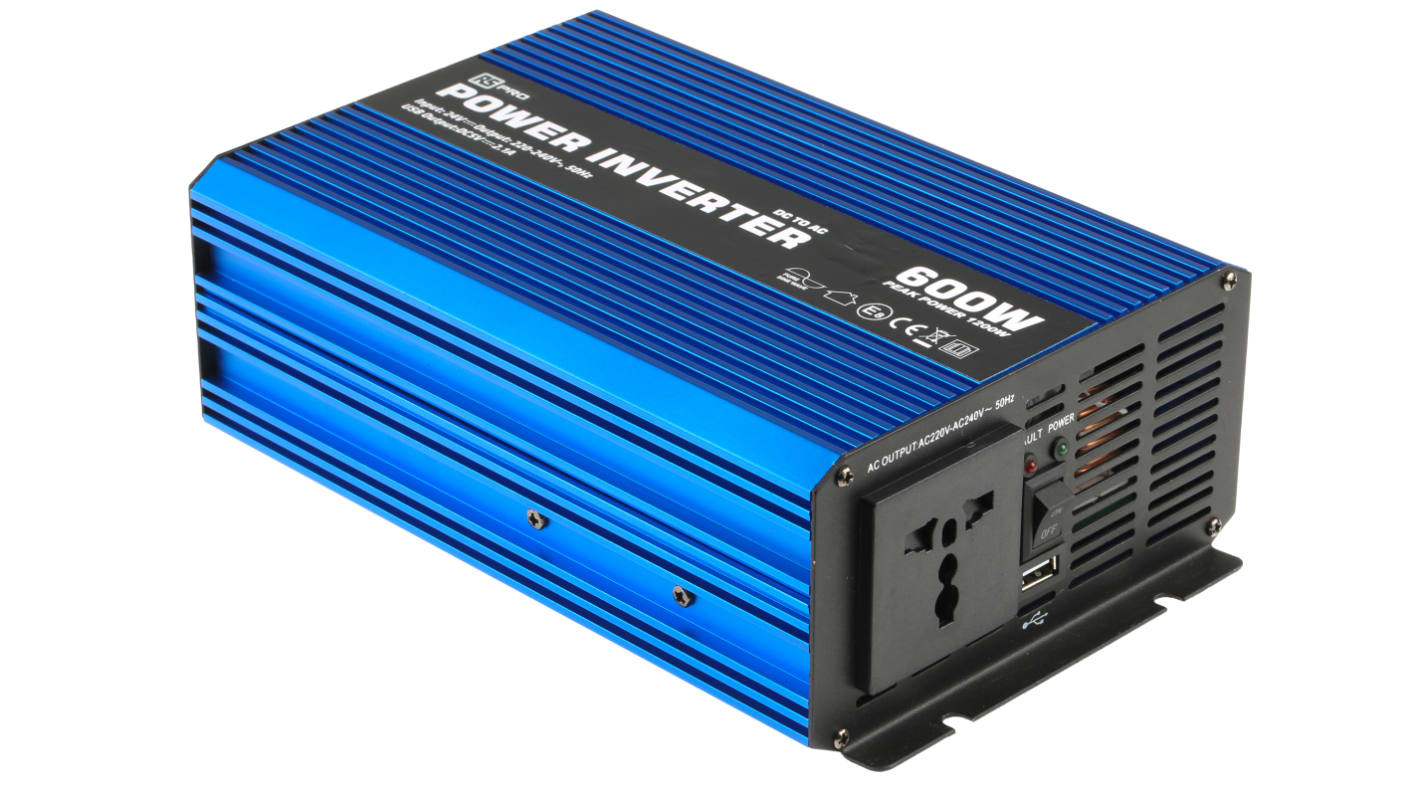

RS PRO 600 W Fixed Installation DC-AC Power Inverter, 24 V/230 V
Want to run a TV, laptop or other appliance off your vehicle's battery? This fixed-installation DC-AC power inverter from RS PRO allows you to do just that. Simply connect the inverter to a 24 V battery and you can plug in anything from printers to fans using a standard 3-pin plug.
The durable anodised aluminium case maximises heat dissipation to prevent the inverter from overheating. Two LED indicators on the front panel let you know whether the device is working properly. It's also compact, lightweight and easy to operate.
The durable anodised aluminium case maximises heat dissipation to prevent the inverter from overheating. Two LED indicators on the front panel let you know whether the device is working properly. It's also compact, lightweight and easy to operate.
Features and Benefits
• DC to AC inverter
• Chassis mounting
• Input voltage of 24 V
• One universal output connection
• Maximum input current of 50 A
• Output voltage of 230 V
• Continuous output power of 600 W
• Intermittent output power of 650 W
• Output current of 5.22 A
• Frequency range of 50 Hz
• Pure sine wave output
• Weight of 2 kg
• Length of 249.2 mm
• Width of 150 mm
• Depth of 77.7 mm
• Operating temperature range of -20˚C to +50˚C
• MTBF (mean time between failures) of 50,000 hours
• Conforms to ECE R10.05:2014 (vehicles) and BS EN IEC 61000 (residential environments) on electromagnetic compatibility
• Chassis mounting
• Input voltage of 24 V
• One universal output connection
• Maximum input current of 50 A
• Output voltage of 230 V
• Continuous output power of 600 W
• Intermittent output power of 650 W
• Output current of 5.22 A
• Frequency range of 50 Hz
• Pure sine wave output
• Weight of 2 kg
• Length of 249.2 mm
• Width of 150 mm
• Depth of 77.7 mm
• Operating temperature range of -20˚C to +50˚C
• MTBF (mean time between failures) of 50,000 hours
• Conforms to ECE R10.05:2014 (vehicles) and BS EN IEC 61000 (residential environments) on electromagnetic compatibility
Specifications
Attribute | Value |
|---|---|
| Input Voltage | 24V |
| Output Voltage | 230V |
| Output Power Continuous | 600W |
| Output Power Intermittent | 650W |
| Output Power Waveform | Pure Sine Wave |
| Output Connection Type | Universal |
| Efficiency | >90% |
| MTBF | 50000h |
| Output Current | 5.22A |
| Length | 249.2mm |
| Width | 150mm |
| Depth | 77.7mm |
| Weight | 2kg |
| Minimum Temperature | -20°C |
| Standards Met | CE, ECE R10.05:2014, ECE R10.05:2014EN 61000-6-3, EN 60950-1, EN 61000-6-1, EN 61000-6-3 |
| Number of Output Connections | 1 |
| Maximum Temperature | +50°C |
| Maximum Input Current | 50A |
| Output Electrical Phase | 1 |
| Inverter Directionality | DC to AC |
| Mounting Type | Chassis Mount |
| Output Frequency Range | 50Hz |
