    SMC Rc 1/4 Pneumatic Regulator - 0.05MPa to 0.85MPa, 1/4in, 1MPa max. input

    RS Stock No.:
    792-7680
    Mfr. Part No.:
    AR25-02H-A
    Manufacturer:
    SMC
    SMC

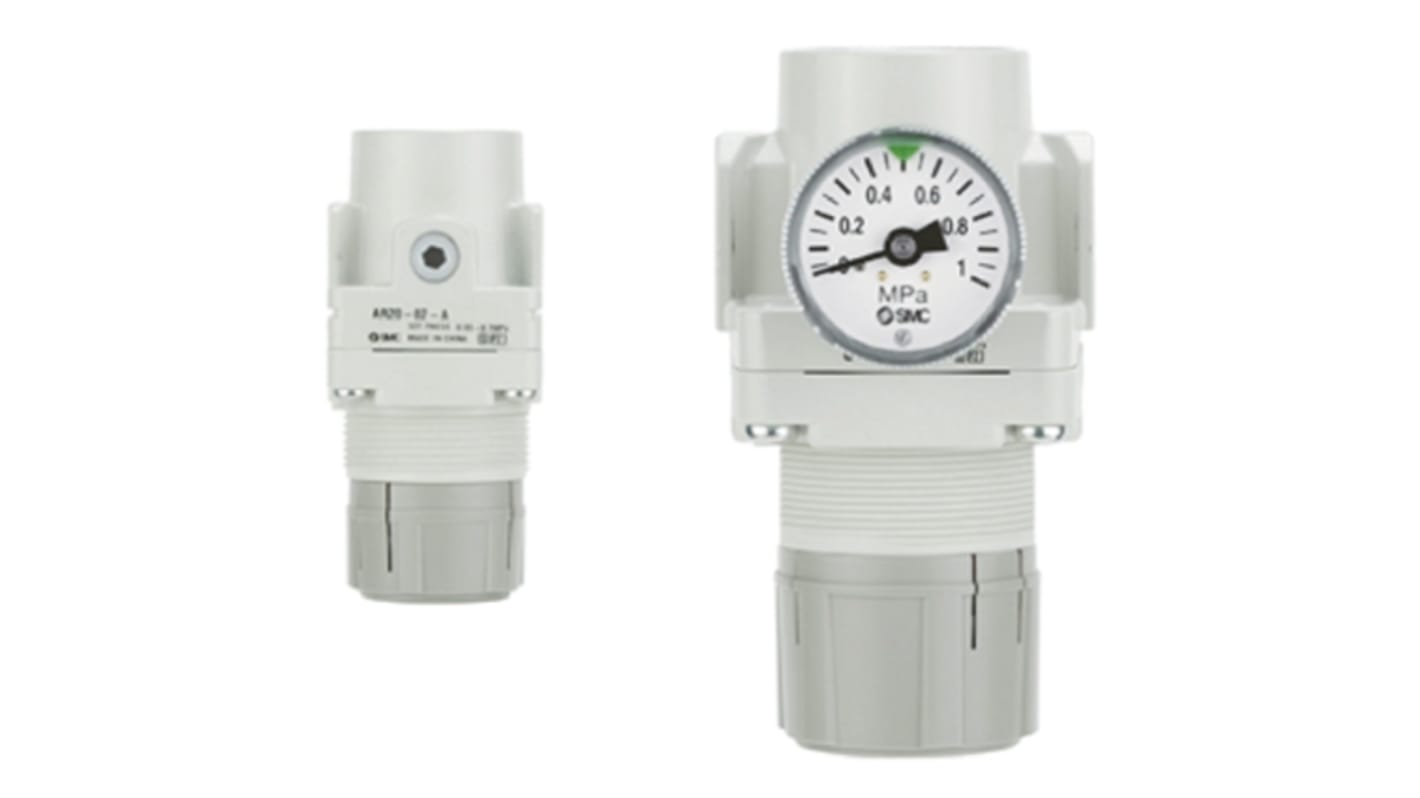

    This image is representative of the product range

    View all Pneumatic Regulators
    Temporarily out of stock - back order for despatch 11/04/2023, delivery within 6 working days from despatch date
    Add to Basket
    units

    Added

    Price Each

    Was MYR192.23

    You pay

    MYR172.87

    unitsPer Unit
    1 +MYR172.87
    RS Stock No.:
    792-7680
    Mfr. Part No.:
    AR25-02H-A
    Manufacturer:
    SMC
    COO (Country of Origin):
    JP

    Technical data sheets


    Legislation and Compliance

    COO (Country of Origin):
    JP

    Product Details

    Modular Air Regulator AR20 - AR40


    Modular air regulators from SMC. The modular air regulators in the AR series are now more efficient saving you energy. The AR series has a modular design with improved installation using a new bracket and spacer combination.The modular design allows connection with other parts in the AC FRL range allowing you to select which components are most suitable for your needs.

    Resin body will not rust
    Different pressure settings available to meet different application needs
    Modular design


    Specifications

    AttributeValue
    Port ConnectionRc 1/4
    Minimum Outlet Pressure0.05MPa
    Maximum Outlet Pressure0.85MPa
    Maximum Input Pressure1MPa
    Manufacturer SeriesAR
    Port Connection Thread Size1/4 in
    Integral Check ValveWithout Check Valve
    Port Connection Thread StandardRc
    Minimum Operating Temperature-5°C
    Maximum Operating Temperature+60°C
