Festo D Series Pneumatic Regulator G 1/8 Pneumatic G

View this category

Subtotal (1 unit)*

MYR1,189.17

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 11 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +MYR1,189.17

*price indicative

RS Stock No.:
203-0494
Mfr. Part No.:
LRS-1/8-D-O-MINI
Manufacturer:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Product Type

Pneumatic Regulator

Inlet Connection Type

Pneumatic

Inlet Connection Size

G 1/8

Outlet Connection Type

Pneumatic

Outlet Connection Size

G 1/8

Series

D

Maximum Operating Pressure

16 bar

Outlet Thread Standard

G

Material

Die Cast Zinc, Nitrile Rubber (Seal)

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

60°C

Standards/Approvals

Conforms to RoHS, ISO8573-1:2010

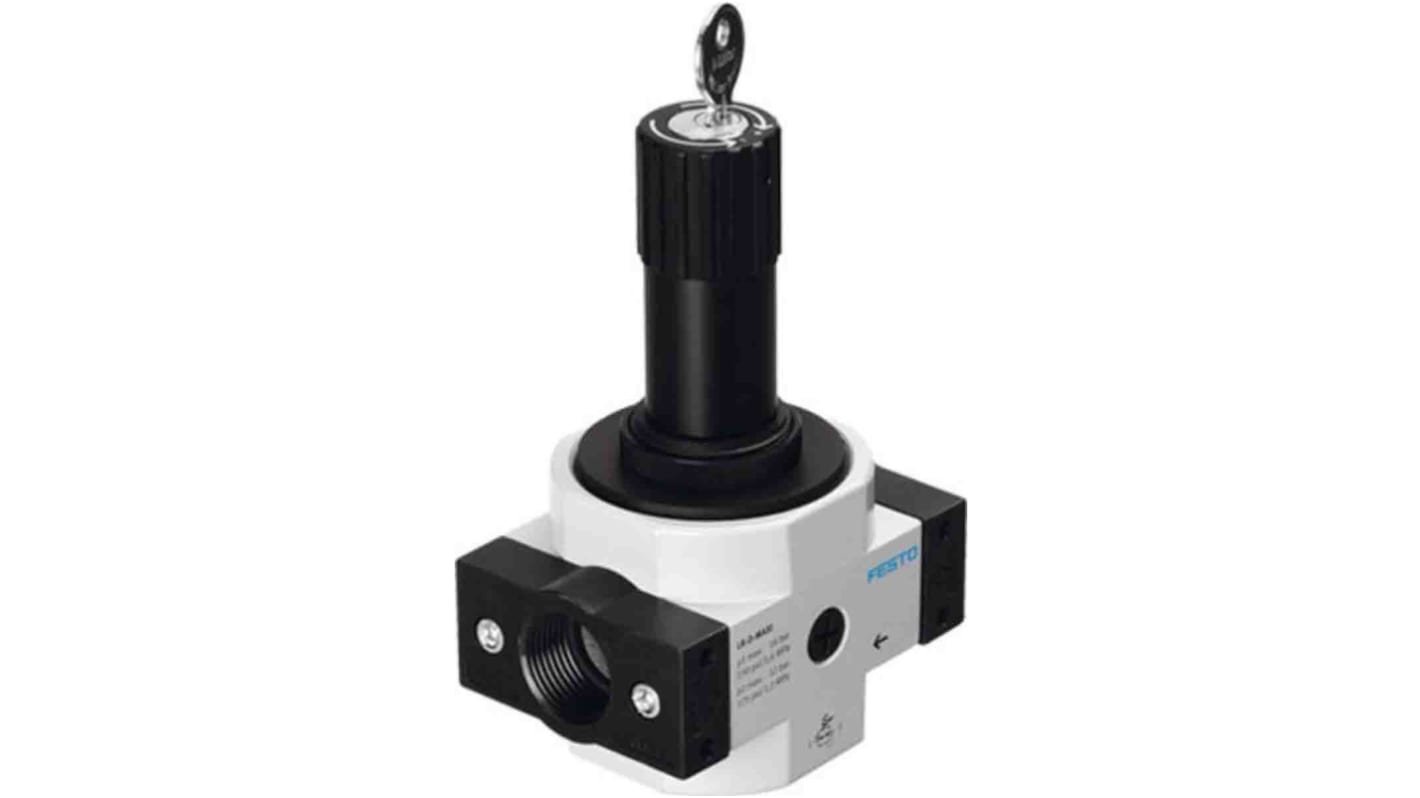

The Festo D series pressure regulator has a G1/8 pneumatic port connecting thread with lockable regulator head. It is a directly-controlled diaphragm regulator design structure without pressure gauge. It has a working pressure up to 12 bar.

Size = mini

Actuator lock = rotary knob with lock

Assembly position = any
