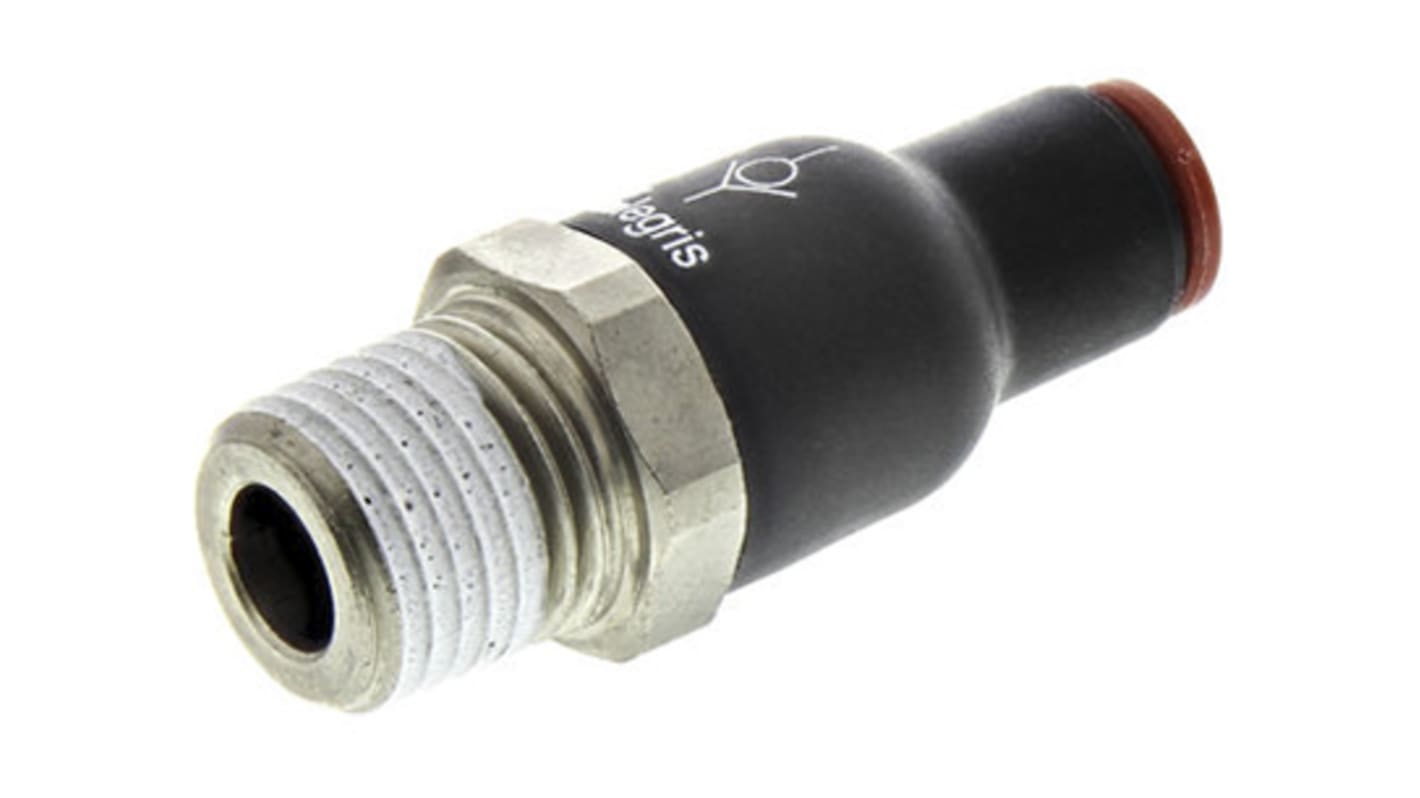

Legris 7995 Non Return Valve R 1/4 Male Inlet, 8mm Tube Outlet, 1 to 10bar
- RS Stock No.:
- 445-3111
- Mfr. Part No.:
- 7995 08 13
- Manufacturer:
- Legris
View this category
73 In Global stock for delivery within 4 - 6 working days
Price Each
Was MYR120.10
You pay
MYR108.09
| units | Per Unit |
| 1 - 49 | MYR108.09 |
| 50 + | MYR106.29 |
- RS Stock No.:
- 445-3111
- Mfr. Part No.:
- 7995 08 13
- Manufacturer:
- Legris
- COO (Country of Origin):
- FR
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
LF3000 Threaded Non-return Valve
Two types available, Exhaust and Supply flow
Exhaust flow type (colour coded red) allows air flow from threaded end to tube end only
Supply flow type (colour coded green) allows air flow from tube end to threaded end only
Plastic body with sealant coated thread for fast installation
Operating temperature range : 0 to +70°C
Exhaust flow type (colour coded red) allows air flow from threaded end to tube end only
Supply flow type (colour coded green) allows air flow from tube end to threaded end only
Plastic body with sealant coated thread for fast installation
Operating temperature range : 0 to +70°C
Specifications
| Attribute | Value |
| Manufacturer Series | 7995 |
| Inlet Connection Type | Threaded |
| Threaded Inlet Connection | R 1/4 Male |
| Outlet Connection Type | Tube |
| Tube Outlet Connection | 8mm |
| Threaded Inlet Gender | Male |
| Minimum Operating Pressure | 1bar |
| Maximum Operating Pressure | 10 bar |
| Maximum Operating Temperature | +70°C |
| Threaded Inlet Thread Size | 1/4 in |
| Threaded Inlet Thread Standard | R |
| Operating Pressure Range | 1 to 10bar |
| Minimum Operating Temperature | 0°C |
