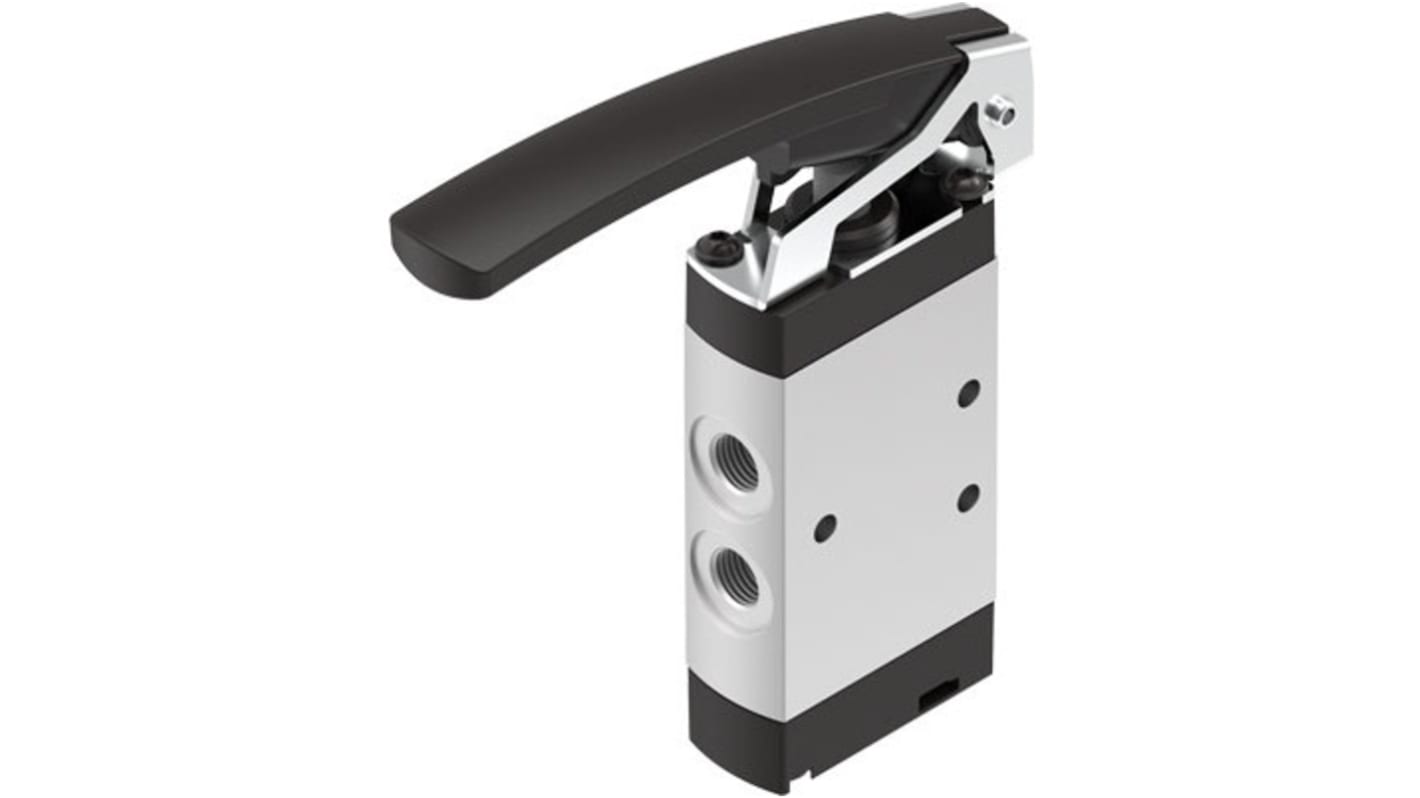

Festo Manual Pneumatic Manual Control Valve VHEF Series G 1/8, 4500001
- RS Stock No.:
- 289-1553
- Mfr. Part No.:
- VHEF-L-M52-M-G18
- Manufacturer:
- Festo
Subtotal (1 unit)*
MYR578.29
FREE delivery for orders over RM 500.00
In Stock
- 1 unit(s) ready to ship from another location
- Plus 4 unit(s) shipping from 31 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR578.29 |
*price indicative
- RS Stock No.:
- 289-1553
- Mfr. Part No.:
- VHEF-L-M52-M-G18
- Manufacturer:
- Festo
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Control Mechanism | Manual | |
| Product Type | Pneumatic Manual Control Valve | |
| Port Type | Pneumatic | |
| Port Size | G 1/8 | |
| Series | VHEF | |
| Maximum Operating Pressure | 8 bar | |
| Body Material | Anodised Wrought Aluminium Alloy | |
| Maximum Flow Rate | 750L/min | |
| Minimum Operating Temperature | -5°C | |
| Valve Function | 5/2 Monostable | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | ATEX, ISO 8573-1:2010, RoHS, VDMA24364-B1/B2-L | |
| Width | 20mm | |
| Number of Ports | 5 | |
| Thread Size | 2.5 mm | |
| Model Number | 4500001 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Control Mechanism Manual | ||
Product Type Pneumatic Manual Control Valve | ||
Port Type Pneumatic | ||
Port Size G 1/8 | ||
Series VHEF | ||
Maximum Operating Pressure 8 bar | ||
Body Material Anodised Wrought Aluminium Alloy | ||
Maximum Flow Rate 750L/min | ||
Minimum Operating Temperature -5°C | ||
Valve Function 5/2 Monostable | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals ATEX, ISO 8573-1:2010, RoHS, VDMA24364-B1/B2-L | ||
Width 20mm | ||
Number of Ports 5 | ||
Thread Size 2.5 mm | ||
Model Number 4500001 | ||
- COO (Country of Origin):
- HU
The Festo Selector valve is a directly controlled, manually actuated valve. It is a durable thanks to tried and tested piston slide and disc seat valve technology. This selector valve offers an ergonomic and safe operation.
Robust metal housing
Attractive price
Minimal actuating forces
Modern design
Reverse operation possible
