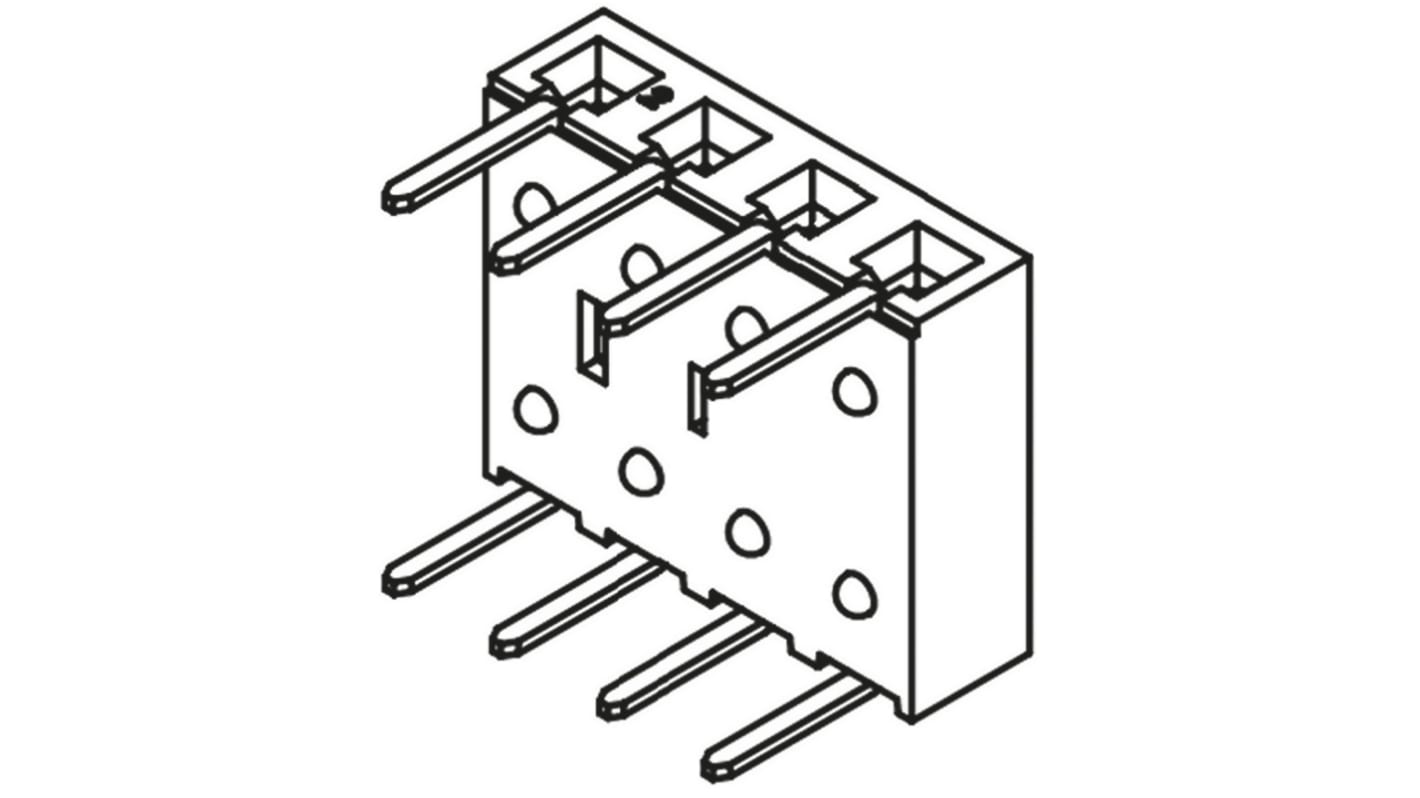

Samtec, BCS 2.54mm Pitch 4 Way 1 Row Right Angle PCB Socket, Through Hole, Through Hole Termination

  • RS Stock No. 766-6499
  • Mfr. Part No. BCS-104-L-S-HE
  • Manufacturer Samtec
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Standard 2.54mm Box Connector Socket Strip - BCS Series

BCS series board to board PCB through hole mount standard box connector socket strip with a 2.54mm pitch, a single row configuration and choice of top or horizontal entry body orientation. The body of these BCS series 2.54mm PCB board-to-board box connector socket strips is made from black liquid crystal polymer and the contacts are made from phosphor bronze with a 0.25μm gold plating on the contact and matte tin on the tail. The temperature range at which these BCS board to board box connector socket strips can be used is -55 to +125°C.
Part numbers BCS-XXX-X HE are single row, horizontal entry.
Part numbers BCS-XXX-X TE are single row, top entry.

Note

These BCS series board to board box connector sockets will mate with the following:
TSW series through hole square post headers - stock number 767-0877 typically.
TSM series SMT square post headers - stock number 765-6489 typically.
DW series flexible square board stackers - 277-9720 typically.
EW series flexible square board stackers - 277-9742 typically.

2.54mm Board to Board and Wire to Board - Samtec

Specifications
Attribute Value
Number of Contacts 4
Number of Rows 1
Pitch 2.54mm
Type Board to Board
Mounting Type Through Hole
Body Orientation Right Angle
Termination Method Through Hole
Current Rating 5.9A
Voltage Rating 450 V ac
Series BCS
Contact Material Bronze
66 In Global stock for delivery within 4 - 6 working days
Price Each
Was MYR7.04
MYR 3.45
units
Per unit
1 +
MYR3.45
Packaging Options:
