Wurth Elektronik 6903 Series 1.27 mm, 2.54 mm Pitch 20 Way 2 Row Straight PCB Socket, Through Hole, Solder Termination

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

WR-MM Sockets

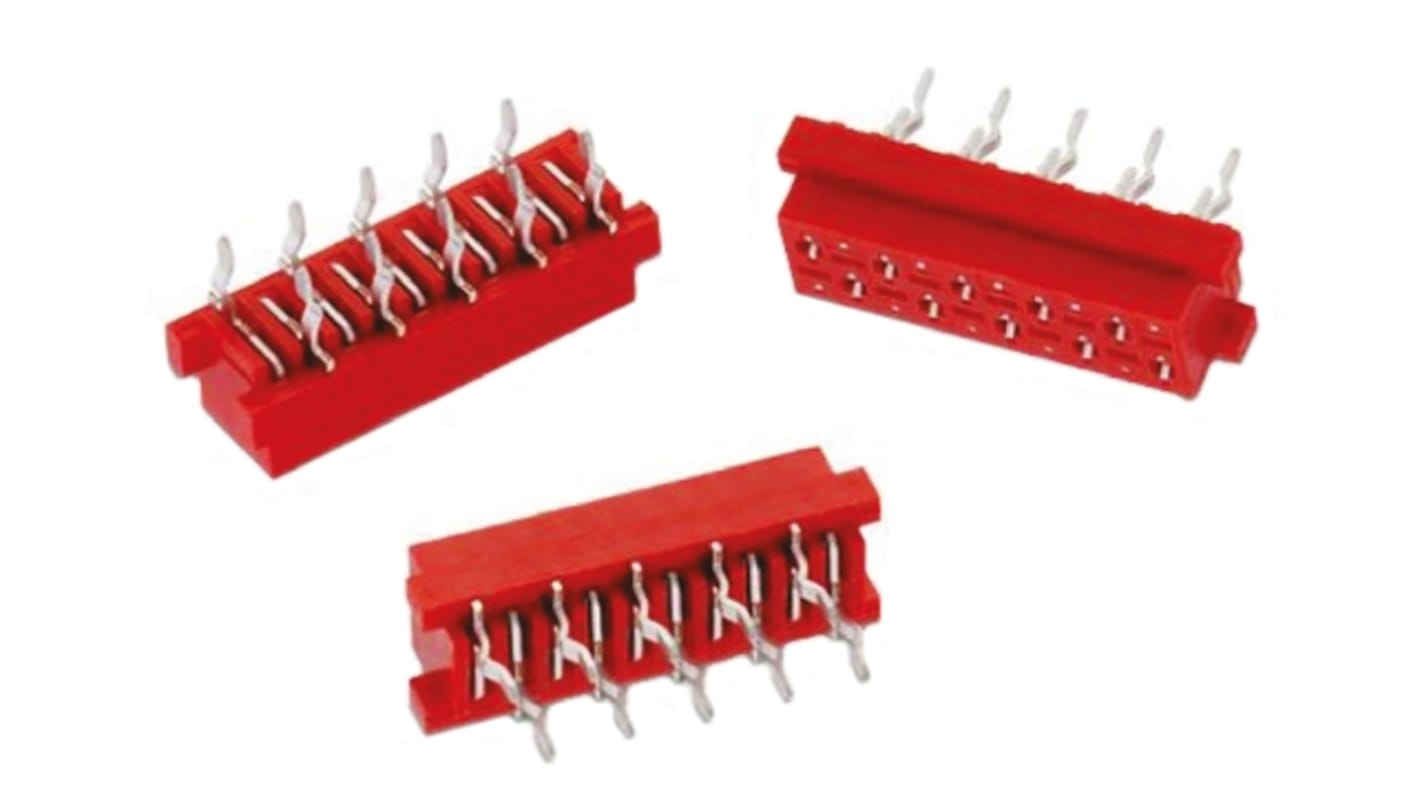

2.54mm staggered pitch (1.27mm pseudo pitch) wire-to-board, board-to-board through hole mount MiniModule socket connectors for use with ribbon cable with a 1.27mm pitch. These WR-MM series 2.54mm through hole mount MiniModule sockets have a low profile, compact design with a red UL94-V0 PBT body and phosphor bronze contacts with a matte tin over nickel plating.

Note

For mating products see stock numbers 771-8161, 771-8206 and 771-8183 typically

2.54mm Wurth WR-MM Range

The Wurth WR-MM MiniModule Connector range is a compact low profile system that can be used in Board to Board or Wire to Board applications. The staggered PCB pitch of the Headers and Sockets for the WR-MM MiniModule Connector range is 2.54 mm with the IDC connectors and the Transition connectors having a Ribbon Cable pitch of 1.27 mm.

Specifications
Attribute Value
Number of Contacts 20
Number of Rows 2
Pitch 1.27 mm, 2.54 mm
Type Board to Board
Mounting Type Through Hole
Body Orientation Straight
Termination Method Solder
Current Rating 1.5A
Voltage Rating 100 V ac
Series 6903
Contact Material Phosphor Bronze
Temporarily out of stock - back order for despatch 28/02/2020, delivery within 4 working days from despatch date
Price Each (In a Tube of 21)
MYR 4.79
units
Per unit
Per Tube*
21 +
MYR4.79
MYR100.59
*price indicative
